Product Specifications
| Prod Model: |
100L-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
2.2kw/3kw/3.7kw/5.5kw |
| Voltage: |
Special Voltages Available |
| Frame Material: |
Cast Iron |
| Mounting Position: |
B3 |
| Protection Class: |
IP54 |
| Insulation Grade: |
F |
| Continuous Working Duty: |
S1 |
| Cooling Method: |
IC411 |
| Warranty: |
S1 |
| Winding Protections: |
PTC, PT100 and Kty84-130 as Option |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Starting Mode: |
Capacitor Start |
| Brand: |
Yinda |
Product Description

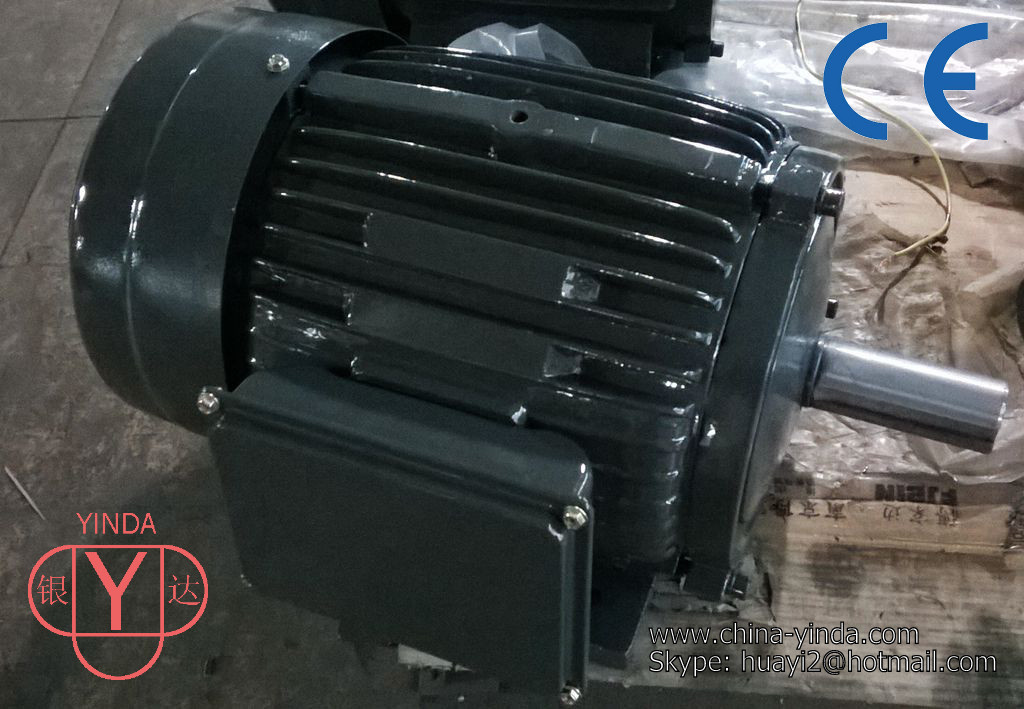

Single-Phase Motors - Cast Iron FrameSingle-phase cast iron frame IP54 motor in versions start+run capacitors
Standard features:Cast Iron frame: 100-132
Mounting type: B3
Power: 2.2kW/3KW/3.7kW/5.5kW
Speed: 1450rpm
Available in 2, 4 pole motor
Squirrel cage rotor/Aluminum Die cast
Start & run capacitor
Duty Type: S1
Protection grade: IP54
Insulation class: F
Optical features:Special voltages
Frequency: 60Hz
Thermistors and Thermostats
Applications:Fans, pumps, pulleys, cranes, continuous conveyors, grinders etc.
Technical Data:
| Type | Power | Horsepower | Voltage | Current | Frequency | Speed | Efficiency | Power factor | lst/le | Tst/Te | Tm/Te | Nosie |
|
| Kw | HP | V | A | Hz | r/min | % | CosΦ | Lw dB(A) |
|
| 100L1-4 | 2.2 | 3 | 220 | 13.9 | 50 | 1400 | 76 | 0.95 | 80 | 1.7 | 1.7 | 78 |
| 100L2-4 | 3 | 4 | 220 | 18.6 | 50 | 1400 | 77 | 0.95 | 110 | 1.7 | 1.7 | 78 |
| 112M-4 | 3.7 | 5 | 220 | 22.8 | 50 | 1430 | 78 | 0.95 | 138 | 1.7 | 1.7 | 78 |
| 132S-4 | 4 | 5.5 | 220 | 25.2 | 50 | 1440 | 79 | 0.95 | 150 | 1.7 | 1.7 | 80 |
| 132M-4 | 5.5 | 7.5 | 220 | 35 | 50 | 1440 | 79 | 0.95 | 210 | 1.7 | 1.7 | 80 |
