Product Specifications

Prod Model: GF4600
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Smart Grip IEC61850 Protocol Analyzer
Function 1: IEC 61850 Client Simulator
Function 2: IEC 61850 Server Simulator
Function 3: IEC 61850 Goose Simulator
Function 4: IEC 61850 Smv Simulator
Function 5: IEC 61850 Scl Checker
Function 6: IEC 61850 Scl Multi Ied Simulator
Function 7: IEC 61850 Ied Test
Function 8: IEC 61850 Protocol Analyzser
Task: Program
Structure: Combination
Mathematical Model: Linear
Signal: Continuous
Function: Automatic Control
Certification: CE
Condition: New
Customized: Customized

Product Description

Smart Grip high quality iec61850 comformance testing software
GF4600 - IEC61850 conformance testing system is in the electric power system in intelligent power grid, intelligent substation test to research and development of test tool. Conform to the international IEC61850 and national standard DL/T860 technical requirements. GF4600-IEC61850 conformance testing system uses friendly interactive graphical interface, easy to use flexible, which is based on the power system to engage in scientific research, measurement, automation, protection professional engineer development tools, users need to grasp the concept of a few IEC61850, he can use the test tool. The test system can fully comparable with the Netherlands KEMA IEC61850 conformance testing software, and better compatibility.
> IEC 61850 Protocol Analyzer
> IEC 61850 Client Simulator
> IEC 61850 GOOSE Simulator
> IEC 61850 SCL Checker
> IEC 61850 SCL Multi IED Simulator
> IEC 61850 MU Test
> IEC 61850 IED Test
> IEC 61850 Double Network Redundancy Test
Functions
TEST SOFTWARE MODELSERIAL NUMBER: 1

Intelligent substation has widely adopted IEC 61850 standard communication, the standardization of information model is the basis for intelligent substation equipment (or system) to achieve IEC 61850 communication. This module can test if the information model meet the requirements of DL/T860 standard, national network and related model specifications. It can test and control unit model, protection unit model, econometric model, condition monitoring model. It is selectable to test according to IEC61850-6 SCL grammatical rules, IEC61850-7 logic nodes and common data, the national network model standards and custom models.
According to 61850-10 rules, this software is to confirm whether the tested product meet the standards on consistency requirements.


IEC61850MMS CLIENT SIMULATION
SERIAL NUMBER: 2

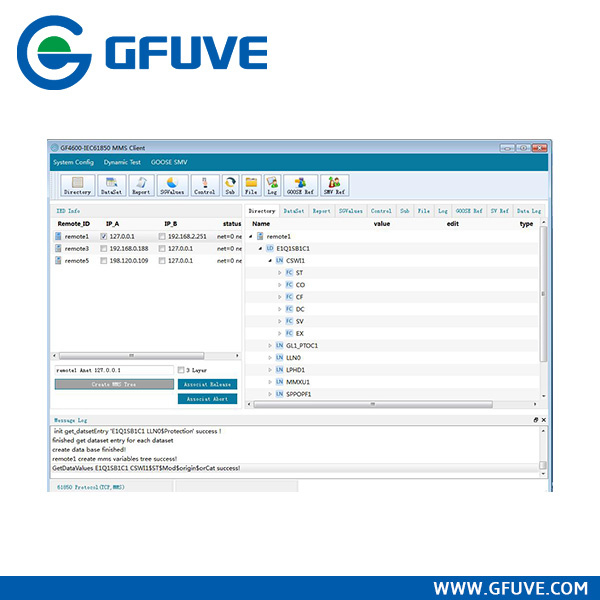

Simulated client IEC61850, testing intelligent electronic devices IED (the control unit, the protection unit etc.). Testing the IED directory tree, IED associated equipment, servers, logical devices, logical nodes and data, data sets, replacing, reporting, setting the group control, recording, controlling and other functions.


IEC61850MMS AUTOMATED TESTING
SERIAL NUMBER: 3

Simulated client IEC61850, automatic testing intelligent electronic devices IED (the control unit, the protection unit etc.), according to predetermined test (IEC61850-10), exporting the test results to a variety of file formats (word, pdf, html, xml).
Can automated test based on ICD / CID files.


SIMULATION TERMINAL (MMS SERVER) EMULATION SOFTWARE
SERIAL NUMBER: 4

Simulated server IEC61850, testing back-office systems and far motivation systems of intelligent substation. According IED and ICD files, simulating MMS server to achieve the directory tree, logical devices, logical nodes, data reading and writing, data sets, valuation, reporting, replacing and other functions.


GOOSE PUBLISH SIMULATION
SERIAL NUMBER: 5

Simulation issue event message IEC61850-GOOSE, testing if the operation of the IED is correct. You can configure Priority, Dest MAC Address, VLanID, Source MAC Address, APPID, timetoLive, gocbRef, datSet, goID, test, confRev, numEntries, GOOSE data formats and other parameters.


GOOSE SUBSCRIPTION SIMULATION
SERIAL NUMBER: 6

Simulation receive event message IEC61850-GOOSE, testing if the issued GOOSE of the digital device IED is correct.
Recognition IEC61850-GOOSE message, setting the message format, displaying Goose in graphical data


SMV PUBLISH SIMULATION
SERIAL NUMBER: 7

Simulation issue sampled value message IEC61850-9-1 or IEC61850-9-2 (LE), testing the digital device IED. You can configure Priority, Dest MAC Address, VLanID, Source MAC Address, APPID, datSet, svID, confRev, SMV data formats and other parameters.


SMV SUBSCRIPTION SIMULATION
SERIAL NUMBER: 8

Simulation receive sampled value message IEC61850-9-1 or IEC61850-9-2 (LE), testing if the issued message of digital merger unit is correct.
Recognition IEC61850-9-2 (LE) message, setting the message format, displaying SMV in graphical data


MOTION TESTING SOFTWARE MODEL
SERIAL NUMBER: 9

Software test if the CID / ICD files and intelligent substation IED device implementation model is consistent, simple and flexible, the features are following:
1) Use the XML parser reads and parses the CID / ICD files and extract model information;
2) Import the IP address of MMS server at the interface, use the MMS client mode to communicate with the tested IED device, read layers of the model information of the tested IED device online by ACSI model service
3) Compared the information from 1) and 2), you can check if the CID / ICD files and intelligent substation IED device implementation model is consistent.


MNETWORK COMMUNICATION MESSAGE ANALYSIS SOFTWARE
SERIAL NUMBER: 10

Monitoring network interfaces, in-depth analysis of network protocol message such as MMS, goose, SMV etc., showing the real MMS interaction.
Monitoring substation network, capturing and analyzing IEC 61850 information, and can be used for acceptance testing, interoperability testing, conformance testing, error logs and network performance monitoring, support IEC 61850 products development.


TIME SYNCHRONIZATION SNTP SIMULATION
SERIAL NUMBER: 11

Testing 61850 time synchronous with SNTP service.


Features
1. Simulation 61850 client can request IEC61850 directory service, the realization, speaking, reading and writing, to create, delete data set service, receiving reports, log, control, protection fixed value, setting changeover, document service. The client support multiple server, support twin wire hot standby.
2. Automatic polling test multiple IED, detection communication status, remote measure, remote communication, SOE, remote control, remote regulating function;
3. Detect the network switching situation data is lost;
4. Automatic scanning inspection directory services, data set services, report service, log, protection fixed value, documents, GOOSE control block, sampling value SMV control block;
5. Operation steps to be automatic record in a file, automatic analysis of test results, and gives the information prompt,
6. Support control block report, log control block, protection fixed value control block, GOOSE control block operation;
7. Analytic report, test report of switching;
8. Simulation 61850 server, support IEC61850 directory service, support, speaking, reading and writing, to create, delete data set services, send a report, log, control, protection fixed value, setting changeover, document service. The server support multiple client.
9. The report function support caching report (BRCB) and the cache report (URCB).
10. According to the intelligent equipment IED shrapnel communications services, to resolve the intelligent equipment logical device model, each logical interface model, all of the telesignalisation, telecontrol and telesignalisation etc data model.
Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power analyzer, intelligent digital meter, transducer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
