IEC61850 Conformance Testing System
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |

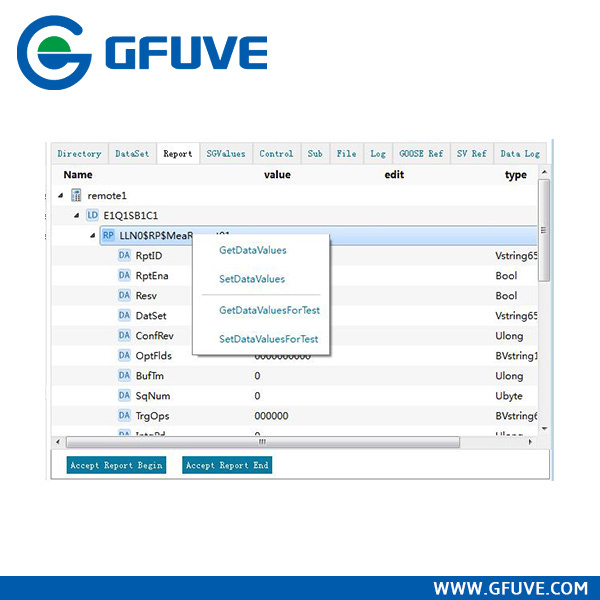

GF4600 - IEC61850 conformance testing system is in the electric power system in intelligent power grid, intelligent substation test to research and development of test tool. Conform to the international IEC61850 and national standard DL/T860 technical requirements. GF4600-IEC61850 conformance testing system uses friendly interactive graphical interface, easy to use flexible, which is based on the power system to engage in scientific research, measurement, automation, protection professional engineer development tools, users need to grasp the concept of a few IEC61850, he can use the test tool. The test system can fully comparable with the Netherlands KEMA IEC61850 conformance testing software, and better compatibility.> IEC 61850 Protocol Analyzer> IEC 61850 Client Simulator> IEC 61850 GOOSE Simulator> IEC 61850 SCL Checker> IEC 61850 SCL Multi IED Simulator> IEC 61850 MU Test> IEC 61850 IED Test> IEC 61850 Double Network Redundancy TestFunctionsØ IEC
61850 server test: simulation 61850 client, test intelligent electronic equipment IED (measurement and control unit, protection unit, etc.),Ø Support " Plug AndTest
" function: support at the same time testing many sets of IED shrapnel in their ability to support the measured IED shrapnel "Plug namely test (Plug AndTest)" function.Ø Model configuration files detection: support equipment model static conformance testing, support model dynamic test, support comprehensive application service model test.Ø IEC
61850 client test: simulation 61850 server, test intelligent substation background system and far motivation system.Ø Merge units test: simulation send/receive sampling value message IEC61850-9-1 or IEC61850-9-2 (LE).Ø Intelligent units device test: simulation send/receive sampling value message IEC61850 - GOOSE.Ø Double network redundancy test: test the Lord, for the network switching function.Ø Time synchronization test: test 61850 time synchronization SNTP service function.Features1.
Simulation 61850 client can request IEC61850 directory service, the realization, speaking, reading and writing, to create, delete data set service, receiving reports, log, control, protection fixed value, setting changeover, document service. The client support multiple server, support twin wire hot standby.2.
Automatic polling test multiple IED, detection communication status, remote measure, remote communication, SOE, remote control, remote regulating function;3.
Detect the network switching situation data is lost;4.
Automatic scanning inspection directory services, data set services, report service, log, protection fixed value, documents, GOOSE control block, sampling value SMV control block;5.
Operation steps to be automatic record in a file, automatic analysis of test results, and gives the information prompt,6.
Support control block report, log control block, protection fixed value control block, GOOSE control block operation;7.
Analytic report, test report of switching;8.
Simulation 61850 server, support IEC61850 directory service, support, speaking, reading and writing, to create, delete data set services, send a report, log, control, protection fixed value, setting changeover, document service. The server support multiple client.9.
The report function support caching report (BRCB) and the cache report (URCB).10.
According to the intelligent equipment IED shrapnel communications services, to resolve the intelligent equipment logical device model, each logical interface model, all of the telesignalisation, telecontrol and telesignalisation etc data model.
| Prod Model: |
GF4600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Task: |
Program |
| Structure: |
Combination |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Certification: |
CE |
| Customized: |
Customized |
Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
