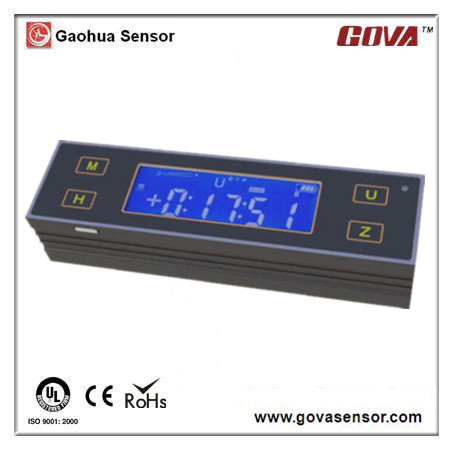

Ilevel5 High Precision Electronic Level Meter

Product Specifications

Prod Model:	iLevel5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	LCD
Work Temp.:	-10~50°c
Measuring Range:	±20mm
Display Range:	±1°

Product Description

High Quality:
1. Turnkey Service
2. CE, ISO9001, RoHs
3. OEM Service
4. Accept small order

High Precision Electronic Level Meter


******Features
1. Bright backlit LCD display
2. Long time stability
3. With cross axis digital bubble to show the
4. Horizontal axis
5. One key to change angle&displacement, metric&standard mode
6. One key to lock/unlock reading
7. Smaller Size
8. Flat and V-shaped measuring faces meet more applications


******Introduction
iLevel meter not only has a high accuracy, fashion design, but also be easy to operate and carry. It is suitable for level measurement, vertical measurement, measuring straightness, parallelism, flatness, slope and other occasions.

It can be widely used in mosaic marble plates, printing machinery horizontal and parallel adjustment, precision machining, precision chemical, automotive and aerospace fields.


******Application
1. Installation and maintenance of CNC machines
2. Installation and maintenance of Precision imaging detection equipment
3. Robotic welding angle calibration Precision automated robotic hand
4. Installation and maintenance of Wafer production workshop
5. UAV transmitter debugging
6. Level of precision measuring equipment


******Specification

	iLEVLE3	iLEVEL4	iLEVEL5	iLEVEL6
Display range	0~360°	0~360°	±1°	±1°
Measurement range	± 15°	± 30°	±20mm	±5mm
Resolution	0.01°	0.01°	0.01mm	1μm
Accuracy	±0.02°@5° ±0.05°@15°	±0.01°@5° ±0.03°@15°	0.01mm	1μm
Setting time	<3 sec
Stability of zero@1H	<0.01°		<0.01mm/m
Battery life	1.5Ah@500 times charge or 3 years
Work temperature	10~50 ºC
Storage temperature	20~60ºC


******Maintenance
In order to ensure that the meter to work in good performance, please follow the instructions to maintenance and use the product.
1. Usually work in the temperature range specified , this will prolong battery life.
2. Do not attempt to disassemble the meter, the reassembled meter will not work, and will not be under the warranty.
3. Do not overcharging and discharging of the battery, it should be charged anytime before using.
4. Try to protect the meter's working surface is not bruised.
5. Be careful not to connect USB port on the fabric surface to avoid electrostatic damage to the meter com port when connecting with a PC.
6.  The meter for long periods of not using, should be started and charged monthly, try to maintain at least 50% power always.


'***Order flow chart
A) Inquiry ----Please tell us the specification you need.
B) Determine the parameters ----- Do or can not do.
C) Sample -----If we can do them, we will send the sample to you, but freight is born by you.
D) Sample time ---we will arrange the samples in 1-3 working days.
E) Express way ----UPS, DHL, FedEx, EMS and so on, please tell us the express way you need.


***Remark
For more details, u can contact me directly
Looking forward to your inquiry at any time.

We are very pleased to serve for u.
