Shanghai Changlei Machinery Complete Equipments Co., Ltd. >> Impact Crusher Machinery Use for Coal/Stone/Mining (PF)

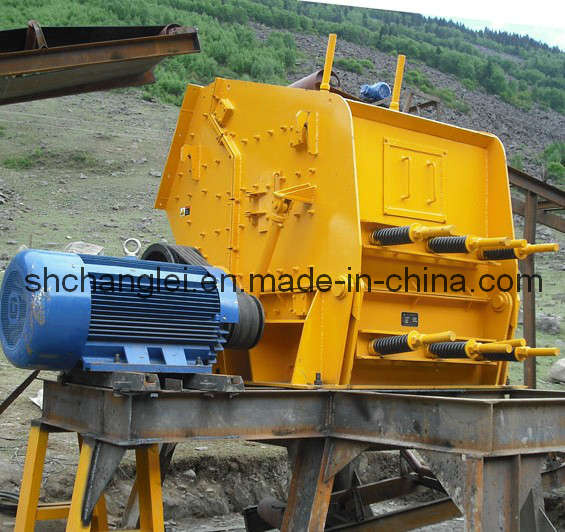

Impact Crusher Machinery Use for Coal/Stone/Mining (PF)

Name: Impact Crusher Machinery Use for Coal/Stone/Mining (PF)
Brand: china-manufacturer-directory.com
SKU: 677088305
Availability: InStock
Rating: 4.6 (108 reviews)

Supplier:	Shanghai Changlei Machinery Complete Equipments Co., Ltd.
Price:	US $ 29000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	PF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Red, Bule, Yellow, Green
Weight:	15-25 T
Power:	180w
Capacity:	180-260/H
Object:	Coal
Tongs' Features:	Combination Tongs
Cutter Material:	High-Speed Steel
Principle:	Fixed Culling
Finished Surface:	Outer Surface Process
Drive:	Electric
Compressive Strength (',For Crushing):	>300MPA
Crushing Degree:	Fine Grinding Machine
Type:	Impact Crusher
Crushing Style:	Grinding and Impact

Product Description

PF Impact Crusher Series
This series impact crusher can crush materials with side length up to 100-500mm, the compression strength up to 350Mpa, it has many advantages: Large crushing proportion, materials after crushing with cubic shape, etc.

Model	Diameter of rotor(mm)	Width of rotor(mm)	Max Size Length of Charge Part(mm)	Discharge Granularity (mm)	Capacity (t/h)	Motor Power(kw)	Weight(kg)
PF-0504	500	400	< 100	< 20	4-8	7.5	1800
PF-1007	1000	700	< 200	< 30	15-30	37	6000
PF-1010	1000	1050	< 300	< 50	40-60	75	12300
PF-1210	1250	1000	< 300	< 50	50-90	95	15813
PF-1212	1250	1250	< 300	< 50	60-110	130	18579
PF-1214	1250	1400	< 300	< 60	80-145	180	19125
PF-1315	1320	1500	< 300	< 40	100-180	220	20820
PF-1320	1320	2000	< 300	< 60	280-350	300	24500

Shanghai Changlei Machinery Complete Equipments Co., Ltd., is an international-type specialized business which specializes in manufacturing mining crushing machinery, sand processing equipment and industrial milling equipment. Integrated itself with the developing, producing and selling, we devote ourselves in offering our customers the crusher equipment with the highest quality and efficient.

Twenty years involving in this field, Changlei has a wide product coverage in our two producing factories, based in Jiangsu Province and Shanghai, and is also one of the biggest manufacturer for professional wear-resistant materials used in crushers in China. We do supply the wear-resistant components to many crusher equipment factories through which we win the trust and reputation from both our customers and other crushing manufacturers
