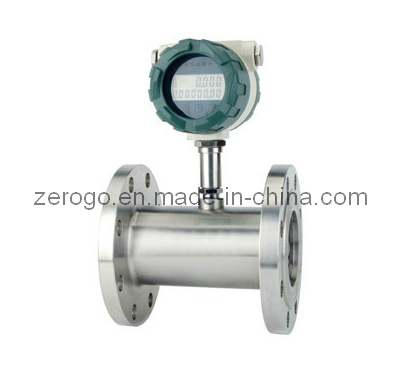

Impeller Flow Meter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
JM-100TF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Drift Diameter: |
Dn4 to Dn200 Mm |
| Sensor: |
Tube/Flange |
| Type: |
Turbine Flow Meter |
| Accuracy: |
?à0.2-0.5% |
| Measuring Media: |
Liquid |
| Principle: |
Impeller |
| Measuring Principle: |
Mechanics |
Product Description
Turbine flowmeter
Temperature: -20C~120C
Output: 4~20mA, Pulse(Standard), RS485/RS232
Accuracy: +/-0.5% of full scale
Low cost, High performance
Measure liquid or gas
|
Item |
Turbine flowmeter |
Nominal Diameter(mm)
and Connection method |
4, 6, 10, 15, 20, 25, 32, 40 (tread connection)
15, 20, 25, 32, 40 (tread and flange connection)
50, 65, 80, 100, 125, 150, 200 ( flange connection) |
|
Accuracy Class |
Regular accuracy ± 1%R, ± 0.5%R,
highest accuracy ± 0.2% R |
|
Measurement Range Rate |
1: 10, 1: 15, 1: 20 |
|
Instrument material |
304 stainless steel; 316L stainless steel; etc. |
|
Medium Temperature ( Dere C) |
-20 ~ +120 C |
|
Ambient Conditions |
Temperature: -10~+55C,
Relative Humidity: 5%~90%
Atmosphere Pressure: 86~106Kpa |
|
Signal Output |
Sensor: pulse frequency signal,
low level≤ 0.8V
high level≥ 8V.
Transmitter: current signal, 4~20mA DC, two wires |
|
Supply Power |
Sensor: +12V DC, +24V DC (option)
Transducer: +24V DC
Scene display type meter: 3.2V Lithium cell |
|
Signal Transmission Line |
STVPV 3× 0.3 (three wires), 2× 0.3(two wires) |
|
Transmission Distance |
≤ 1000m |
|
Signal Line Interface |
Internal thread M20× 1.5 |
|
Explode-proof Class |
ExdIIBT6 |
|
Protection Class |
IP65 |
Xiuyan precision instrument factory was founded in 1958 October incorporated the collective enterprises. Company is located in "city of jade " -- Xiuyan, picturesque scenery, pleasant environment, convenient transportation.
Enterprise covers an area of 12000 square meters, construction area of 3000 square meters, the registered capital of 1260000 Yuan, the existing staff of 86 people, including 16 technical staff, management staff of 10 people, technical secondary school or above the staff accounted for the total number of employees 78%. Company has strong technical strength, perfect technology, scientific management, enterprises manufacture the main products include Electromagnetic flowmeter, Target flowmeter, Ultrasonic flowmeter, Ultrasonic level meter, Magnetic level meter, Turbine flowmeter, Vortex flowmeter, ect. Enterprise product marketing the whole country, has been used in petroleum, chemical, power, papermaking, brewing, pharmaceutical ect. field of the automatic control system of industrial processes, especially in the petroleum, chemical industry to create own brand. Enterprises has actively expanded the overseas market, has a variety of instruments are exported to Malaysia, Italy, Australia, Zambia, Turkey, America, Brazil, and other countries. At present, the enterprise has passed ISO9001--2000 international quality system certification, report to the Liaoning provincial Science and Technology Agency awarded the High-tech Enterprises. Company for three consecutive years was awarded the "Civilized Unit" title by the Anshan municipal Party committee and municipal government.
Since the company was founded more than 40 years, the joint efforts of leaders and staff, base on the entrepreneurial spirit of " rigorous, pragmatic, efficient, and trustworthy ", adhere to the " quality of products, service first for the customer ", the pursuit of continuous innovation and development, to let the user rest assured, comfortable, happy.
