Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd. >> Indirect Ceramic Decorating Printing Mesh (SS-PET)

Indirect Ceramic Decorating Printing Mesh (SS-PET)

Name: Indirect Ceramic Decorating Printing Mesh (SS-PET)
Brand: china-manufacturer-directory.com
SKU: 709211895
Availability: InStock
Rating: 5 (26 reviews)

Supplier:	Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd.
Price:	US $ 2/Meter
Min Order:	100/Meter
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	SS-PET
Markets:	North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe
Monofilament Style:	Yes
Mesh Count:	8t~165t
Model Number:	Dpp
Color:	White/Yellow/Black
Thickness:	0.06~1mm
Material:	100% Polyester
Weave Type:	Plain
Printing:	Polyester Screen Printing
Elasticity:	Low

Product Description

Ceramic Printing

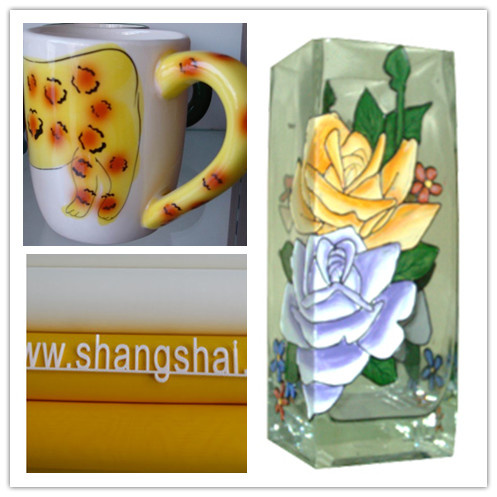

Indirect ceramic decorating printing mesh

General introduction:
Ceramic tableware, bone porcelain ceramics, ceramic tea set etc. For daily use.
SS-PET1500 provide just the right mesh specification for every screen printing application, ranging from very coarse to ultra-fine in different widths(up to 3.7meters), available in both yellow and white fabrics.

Please feel free to contact us and offer OEM service.
Real Quality, Reasonable Price, Expert Service.

Polyester Printing Mesh
Model	Specification (/cm)	Mesh count (mesh/inch)	Thread Diameter (um)	Mesh opening(um)	Open Area(%)	Thickness(um)	Theoretic Ink Volume (cm3/m2)
PET36/169	36	90	100	169	39	170	66
PET39/168	39	99	80	168	45	136	62
PET39/149	39	99	100	149	35	170	60
PET43/145	43	110	80	145	41	136	56
PET47/135	47	120	71	135	42	121	51
PET51/119	51	130	71	119	39	121	47
PET53/112	53	135	71	112	37	121	45
PET100/51	100	250	40	51	30	85	26
PET110/48	110	280	34	48	33	58	19
PET110/43	110	280	40	43	26	68	18
PET120/44	120	305	31	44	33	53	18
PET120/42	120	300	34	42	29	58	17
PET120/37	120	300	40	37	18	68	13
PET130/31	130	330	40	31	17	68	12
PET130/36	130	330	34	36	26	58	15
PET140/34	140	350	31	34	25	53	13
PET140/32	140	350	34	32	19	58	11
PET150/34	150	380	27	34	30	46	14
PET150/31	150	380	30	31	23	51	12
PET150/28	150	380	34	28	16	58	9
PET165/29	165	420	27	29	22	46	10
PET165/25	165	420	31	25	16	53	8
Remark:The above are theoretic data for reference only.Thickness error range±5% ;Mesh Opening & Open Area & Theoretic Ink Volume only slight error according to actual data.

Main Products:
Polyester Mesh;
Polyester Monofilament Printing Mesh;
Nylon mesh;
Polyester &Nylon PA66 Filter Mesh;
Flour Mesh;
GG, XX, XXX/FM Flour Milling Mesh

Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd is a professional manufacturer of filtration mesh, printing mesh/fabic, flour mesh, products.
SGS, ISO, FDA Certificates and so on.
We adopt the filtration production chain with international advanced technology, and have over 200 advanced equipments and weaving machines, such as Srojectile Looms imported from Sulzer Ruti in Switzerland, Benninger high speed warping machines, JW3600 nylon mesh and polyester machines etc.

We provide various of nylon mesh, polyester mesh and some other stainless steel mesh for filtering and printing. Our products are widely applied as filter in aerospace, petrifaction and other high technology field.

Holding the principle of "Good Quality, Reasonable Price, Satisfied Service, Win-Win Cooperation", we have set up good relationships with customers both from home and abroad, include USA, Germany, France, United Kingdom, Austrilia, Italy, Poland and Japan etc...We are glad to corporate with you genuinely to develop together.
