Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd. >> Monofilament Screen Printing Mesh

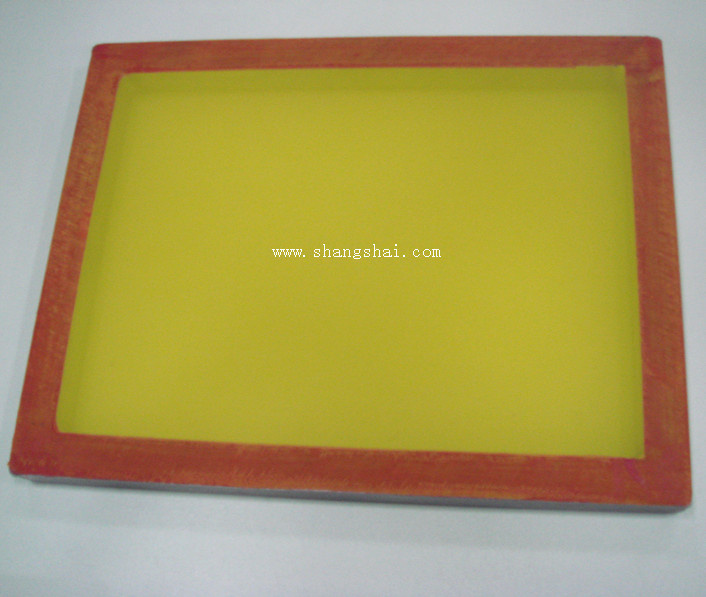

Monofilament Screen Printing Mesh

Name: Monofilament Screen Printing Mesh
Brand: china-manufacturer-directory.com
SKU: 709336485
Availability: InStock
Rating: 4.9 (130 reviews)

Supplier:	Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd.
Price:	Negotiable/Square Meter
Min Order:	50/Square Meter
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	SS-PET
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Ss-Pet
Specification:	7t-165t
Mesh Count:	18-420mesh
Thread Diameter:	31-350um
Width:	Max.365cm
MOQ:	50meters
Brand:	Ss
Place Of Origin:	Shanghai, China
Certification:	ISO9001:2008, SGS
Experience:	More Than 15 Years

Product Description

Polyester Screen Printing Mesh/Fabric

Specifications details:
1. Weave type: Plain.
2. Mesh count: 7T~165T mesh/cm (18mesh/inch to 420mesh/inch)
3. Thread diameter: 31-350um
4. Characteristics: Good stability and finer printing effect
4. Used: Screen printing and filtering
5. Color: Yellow, white, black, orange
6. A4 free samples can be sent for your reference.

Features & advantages:
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy

Applications:
Polyester Screen Printing Mesh is woven from yarn that is extruded from heated polyester into a single strand. Widely used in textile printing, plate making printing, electronic printing, ceramics, glass, stained paper printing, label plate, and advertising.

Real Quality, Reasonable Price, Expert Service.

Polyester screen Printing Mesh
Model	Specification(/cm)	Mesh count (mesh/inch)	Thread Diameter (um)	Mesh opening(um)	Open Area(%)	Thickness(um)	Theoretic Ink Volume (cm3/m2)
SS-PET7/1068	7	18	350	1068	56	693	389
SS-PET8/941	8	20	300	941	57	594	338
SS-PET10/743	10	25	250	743	55	495	274
SS-PET12/686	12	30	140	686	68	277	189
SS-PET12/578	12	30	250	578	48	495	239
SS-PET14/489	14	36	200	489	50	340	169
SS-PET15/443	15	38	200	443	47	340	160
SS-PET16/461	16	40	140	461	58	238	139
SS-PET16/404	16	40	200	404	44	340	151
SS-PET16/356	16	40	250	356	34	425	145
SS-PET18/385	18	45	150	385	51	255	131
SS-PET18/357	18	45	180	357	44	306	134
SS-PET20/399	20	50	80	399	69	136	93
SS-PET20/380	20	50	100	380	62	170	105
SS-PET20/333	20	50	150	333	47	255	120
SS-PET20/304	20	50	180	304	39	306	120
SS-PET21/319	21	54	140	319	48	238	114
SS-PET22/356	22	56	80	356	66	136	90
SS-PET24/320	24	60	80	320	63	136	86
SS-PET24/301	24	60	100	301	56	170	95
SS-PET24/282	24	60	120	282	49	204	99
SS-PET24/263	24	60	140	263	42	238	100
SS-PET24/253	24	60	150	253	39	255	100
SS-PET28/263	28	70	80	263	58	136	79
SS-PET28/244	28	70	100	244	50	170	85
SS-PET29/214	29	74	120	214	41	204	83
SS-PET30/203	30	76	120	203	39	204	80
SS-PET32/236	32	80	64	236	61	109	67
SS-PET32/221	32	80	80	221	53	136	73
SS-PET32/202	32	80	100	202	44	170	75
SS-PET32/183	32	80	120	183	36	204	74
SS-PET34/184	34	86	100	184	42	170	71
SS-PET36/188	36	90	80	188	49	136	66
SS-PET36/178	36	90	90	178	44	153	67
SS-PET36/169	36	90	100	169	39	170	66
SS-PET39/191	39	99	55	191	60	94	56
SS-PET39/183	39	99	64	183	54	109	59
SS-PET39/176	39	99	71	176	50	121	61
SS-PET39/168	39	99	80	168	45	136	62
SS-PET39/149	39	99	100	149	35	170	60
SS-PET43/160	43	110	64	160	51	109	55
SS-PET43/145	43	110	80	145	41	136	56
SS-PET47/150	47	120	55	150	53	94	50
SS-PET47/141	47	120	64	141	47	109	51
SS-PET47/135	47	120	71	135	42	121	51
SS-PET51/134	51	130	55	134	50	94	47
SS-PET51/119	51	130	71	119	39	121	47
SS-PET53/127	53	135	55	127	48	94	45
SS-PET53/118	53	135	64	118	42	109	45
SS-PET53/112	53	135	71	112	37	121	45
SS-PET56/117	56	142	55	117	45	94	42
SS-PET56/109	56	142	64	109	38	109	41
SS-PET59/109	59	150	55	109	42	94	40
SS-PET59/100	59	150	64	100	36	109	39
SS-PET61/103	61	155	55	103	41	94	38
SS-PET61/95	61	155	64	95	34	109	37
SS-PET64/96	64	163	55	96	39	94	36
SS-PET64/88	64	163	64	88	32	109	35
SS-PET68/97	68	173	55	87	36	94	34
SS-PET68/79	68	173	64	79	29	109	32
SS-PET72/89	72	183	45	89	42	77	32
SS-PET7286	72	183	48	86	40	82	32
SS-PET72/80	72	183	55	80	34	94	31
SS-PET77/71	77	195	55	71	31	94	29
SS-PET80/76	80	200	45	76	38	77	29
SS-PET80/73	80	200	48	73	35	82	29
SS-PET90/68	90	230	40	68	38	68	26
SS-PET90/63	90	230	45	63	33	77	25
SS-PET90/60	90	230	48	60	28	82	23
SS-PET100/51	100	254	40	51	30	85	26
SS-PET110/48	110	280	34	48	33	58	19
SS-PET110/43	110	280	40	43	26	68	18
SS-PET120/44	120	305	31	44	33	53	18
SS-PET120/42	120	305	34	42	29	58	17
SS-PET120/37	120	305	40	37	18	68	13
SS-PET130/31	130	330	40	31	17	68	12
SS-PET130/36	130	330	34	36	26	58	15
SS-PET140/34	140	350	31	34	25	53	13
SS-PET140/32	140	350	34	32	19	58	11
SS-PET150/34	150	380	27	34	30	46	14
SS-PET150/31	150	380	30	31	23	51	12
SS-PET150/28	150	380	34	28	16	58	9
SS-PET165/29	165	420	27	29	22	46	10
SS-PET165/25	165	420	31	25	16	53	8
Remark:The above datas are theoretic ,please reference the actual datas if there it differs.

Main Products:
Polyester Mesh;
Polyester Monofilament Printing Mesh;
Nylon mesh;
Polyester &Nylon PA66 Filter Mesh;
Flour Mesh;
GG, XX, XXX/FM Flour Milling Mesh

Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd is a professional manufacturer of filtration mesh, printing mesh/fabic, flour mesh, products.
SGS, ISO, FDA Certificates and so on.
We adopt the filtration production chain with international advanced technology, and have over 200 advanced equipments and weaving machines, such as Srojectile Looms imported from Sulzer Ruti in Switzerland, Benninger high speed warping machines, JW3600 nylon mesh and polyester machines etc.

We provide various of nylon mesh, polyester mesh and some other stainless steel mesh for filtering and printing. Our products are widely applied as filter in aerospace, petrifaction and other high technology field.

Holding the principle of "Good Quality, Reasonable Price, Satisfied Service, Win-Win Cooperation", we have set up good relationships with customers both from home and abroad, include USA, Germany, France, United Kingdom, Austrilia, Italy, Poland and Japan etc...We are glad to corporate with you genuinely to develop together.
