Model: GRG5H
Brand: TOPSKY
Application:
According to the gas instantaneous concentration, transfinite alarm and output power control.

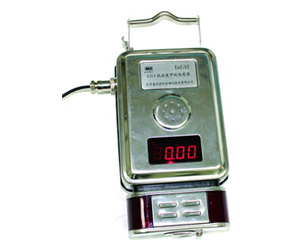

GRG5H Infrared carbon dioxide sensor
This instrument has the determination, according to the gas instantaneous concentration, transfinite alarm and output power control, infrared remote control signal calibration, digital communications, and other functions.
This product USES the international advanced non-dispersive infrared detection technology, overcome the principle of thermal catalytic sensor calibration cycle is short, easy to poisoning, and by adopting the technology of embedded microcontroller controller, the built-in precise temperature compensation circuit the measuring accuracy will not drift due to temperature change. The instrument has the measuring accuracy, fast response speed, calibration cycle is long, is not affected by other gases, wide measuring range, low power consumption, long service life, stable performance, high reliability, etc. The instrument can be set up via the remote control is convenient working point, at the same time the output of 200 ~ 1000 hz frequency signal and the RS - 485 digital signal, convenience and various types of supporting the use of coal mine safety monitoring system.
Mainly applied to the coal mine mining working face, return air roadway, a gas explosion gas environments, such as mechanical and electronic chamber for continuous measurement of gas concentration. This instrument has the determination, according to the gas instantaneous concentration, transfinite alarm and output power control, infrared remote control signal calibration, digital communications, and other functions. Intermittent sound and light alarm way signal, optical signal visibility of not less than in the dark 20m
|
Measuring range |
(0.00~0.50)% CO2 |
|
(0.50~5.00)%CO2 |
|
The basic error |
±0.10%CO2 |
|
(0.05+ 5%)%CO2 |
|
Resolution |
≥0.01%CO2 |
|
corresponding time |
≤25s |
|
Working power |
DC9V~24V/95mA |
|
Remote control distance |
≤5m |
|
Transmission distance |
≤2km |
|
output signal frequency |
(200~1000)Hz |
|
digital signal |
RS4851200bps~9600bps |
|
Explosion-proof marks |
ExibI |
|
Working temperature |
0°C~40°C |
|
Relative humidity |
≤98%(+25°C) |
|
Storage temperature |
-20°C~+50°C |
|
Installation dimensions |
260mm×120mm×50mm |
|
Weight |
≤1kg |
Beijing Topsky (Lingtian Shiji) Automatic Technology Co., is a professional large-scale manufacturer of all types coal mine safety equipment and fire fighting equipment, integrating development and production together. Our main products include portable gas detector, Ventilation Meter, breathing apparatus, Oxygen Self-Rescuer, Water mist system, Pneumatic Chain Saw and related products. Established in 2003, we have many years of history in the coal mine and fire fighting industry. Located at Beijing, we enjoy convenient water, land and air transportation.
Our company employs many experienced technical and management personnel. Through the efforts of all staff, we have become a special safety equipment manufacturer. All of our staff have continuously tried to improve product quality and service for the user's safety.
Currently, our product was already exported to America, France, Australia, Italy and 20 other countries and regions. Our company has always focused on research, development and innovation. We attained ISO9001 quality management system certificate.
Our company has initiated the new phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us for future business relationships and achieving mutual success!
