Product Specifications
| Prod Model: |
HCEU-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey/Black/White, etc |
| OEM: |
Accept |
| Electric Type: |
AC |
| Power Supply: |
Electric |
| Remote Control: |
With Remote Control |
| Timer: |
With Timer |
| Certification: |
CE |
| Speed: |
2 Speed |
| Power: |
100W-300W |
| Material: |
Plastic |
| Installation: |
Box |
| Type: |
Bathroom Fan |
| Application: |
Industrial and Household |
Product Description

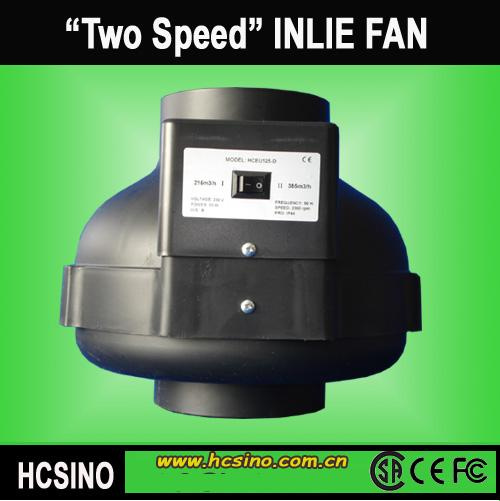

Inline Centrifugal Ventilation Ducting Blower Fan (external rotor motor)
1. Plastic Housing
2. Noiseless and power saving
3. Perfect design & construction
4. High quality moulded impeller
5. Thermally protected AC motor
6. Includes power line & mounting bracket
DETAILS
Typical sizes available: Ø 100; Ø 125; Ø 150; Ø 160; Ø 200; Ø 250; Ø 305, Ø 315mm
Colour available: Black, White, etc
It is used to transmit and strengthen the air flow inside a network of ventilation ducts.
The Plastic Inline Duct Fan is equipped with ball bearing and visible propeller with a protective grate. The installations can be mounted horizontally and vertically.
The propeller blades are directed backwards, ensuring higher pressure and work effciency.
The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.
|
Model |
Voltage |
Frequency |
Power |
Rotate |
Air Flow |
Pressure |
|
(HCEU-D) |
(V ) |
(HZ) |
(W) |
(R/Min) |
(M3/H) |
(Pa) |
|
Φ 100mm |
120 / 230 |
60 / 50 |
69 |
2590 |
175 / 350 |
360 |
|
Φ 125mm |
120 / 230 |
60 / 50 |
71 |
2535 |
220 / 440 |
390 |
|
Φ 150mm |
120 / 230 |
60 / 50 |
100 |
2350 |
305 / 610 |
430 |
|
Φ 160mm |
120 / 230 |
60 / 50 |
130 |
2580 |
350 / 700 |
475 |
|
Φ 200mm |
120 / 230 |
60 / 50 |
190 |
2150 |
525 / 1050 |
620 |
|
Φ 250mm |
120 / 230 |
60 / 50 |
195 |
2250 |
600 / 1200 |
635 |
|
Φ 305mm |
120 / 230 |
60 / 50 |
245 |
2450 |
925 / 1850 |
690 |
|
Φ 315mm |
120 / 230 |
60 / 50 |
250 |
2520 |
950 / 1900 |
720 |
