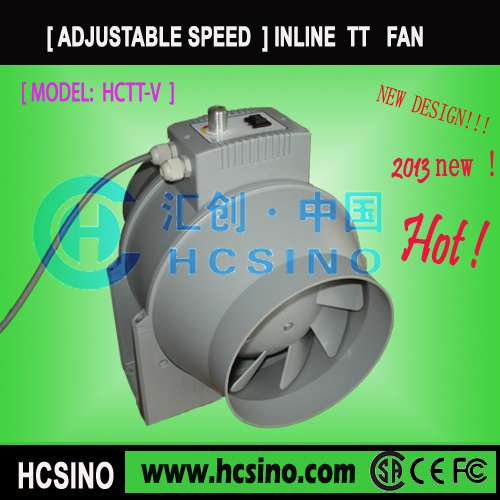

Plastic axial inline duct fan/In-line duct fan
Model: HCTT-V
--- Multi-speed control
--- 110~120V/60Hz or 220~240V/50Hz
--- Holds CE, ERP, FCC, SAA, RoHS, IP4 Certificate
Input: 110~240VAC available
Fan Housing Material: Plastic
Typical sizes available: Φ 100; Φ 125; Φ 150; Φ 200
With certifications of CE, FCC, SAA, EMC, RoHS
With installation bracket
With 1.5 m power cord Color: White, black, grey, blue available
General instroduction:
Air extractor TT Fan is compact and pratical, suitable for small-size indoor aereas. It is made of high quality and high strength materials:
Motor with impeller and terminal block are attached to the case with special clamps with latches, designed to be demounted without any special skills or instruments.
The fan can be mounted in any place of duct system and at any angle, vertically or horizontally.
The TT fan has a single phase motor on ball bearings. The mounting box can be installed in any position for easy installation and connection.
Technical Specification:
1. Product: The In line duct fan of 100/125/150/200MM can be made with Two-speed, Multi-speed, and temperature controlled, to solve different ventilation requirements
2. Applications: Shall be connected to any point on the ventilation duct to meet.
3. Installation: Full installation guide; Or sent separately in advance - if required.
4. Construction: Body and fan blades using ABS plastic material. Provided with an integral mounting foot.
5. Motor: Is a single phase A/C motor, fitted with sealed for life ball bearings for enhanced working life and Standard Thermal Overload Protection (S. T. O. P. ).
6. Fan: The impeller is axial flow type.
7. Controllers: For single speed fan, we have individual fan speed controller for choosing
8. Servicing / Maintenance: The motor body of the in-line fan shall be easily dismountable for repairs or cleaning. The impeller should be cleaned at least once a year using a damp cloth.
9. Guarantee: Covered by a 2 year warranty subject to specified maintenance.
10. Compliance: CE, SAA, FCC, RoHS, ERP, IP44.
Features:
Specially designed for ventilation ducts high pressure, strong airflow and low noise level;
Very quiet from 28-38 dbA to 3m;
Access to motor and impeller without ducts dismounting;
Build-in external switch for multi-speed;
Equipped with input wire + G32 European plug;
Class of motor protection IP X4;
Thermostat included to measure temeprature and humidity;
1.5meter Cable included;
Compact and practical;
