Inmax I309A 8+1g Port Unmanaged Industrial Ethernet Switch

Name: Inmax I309A 8+1g Port Unmanaged Industrial Ethernet Switch
Brand: china-manufacturer-directory.com
SKU: 697157212
Availability: InStock
Rating: 4.8 (108 reviews)

Supplier:	Shenzhen Inmax Technologies Co., Ltd.
Price:	US $ 130/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	i309A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

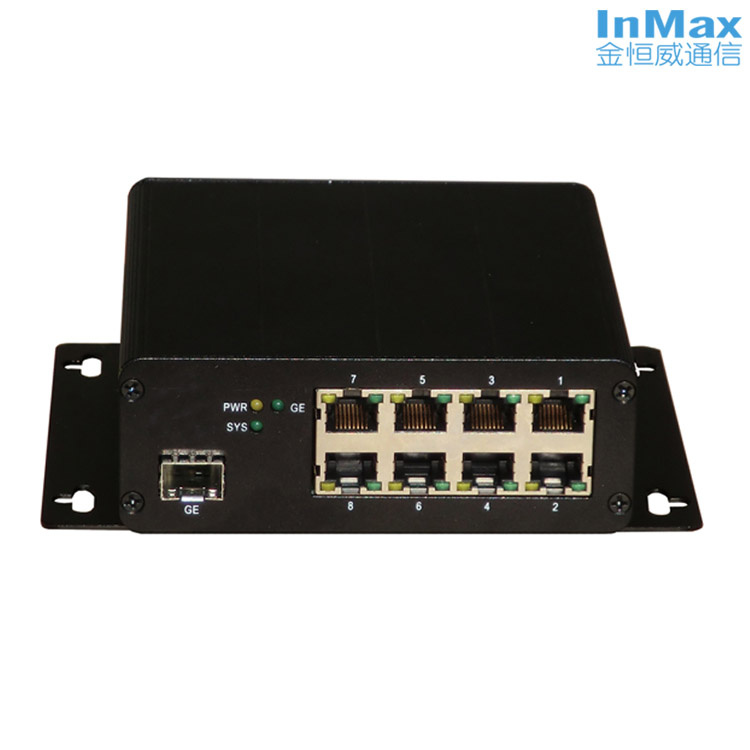

InMax i309A 8+1G Port Unmanaged Industrial Ethernet Switch

Man Features
Ø8x10/100BaseTX ports+1x1000BaseFX
ØIndustrial-grade design with -40 to +75°C operating
  temperature and redundant power inputs
ØMetal, IP40 protection,DIN-Rail mounting, wall mounting

Specifications
Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3z

Interface:
Fiber Ports: 1000Base-X (SFP Slot)
RJ45 Ports: 10/100BaseTX auto negotiation

LED:
Port Led:Copper: Link1~6, Act1~6
          Fiber: Link/ Act G1,G2,G3
Power Led:PWR

Power Requirements:
Input Voltage: 24VDC (12 ~ 36VDC), redundant dual inputs
Input Current: MAX. <0.41A@24VDC,<10W
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 6-contact terminal blocks

Mechanical Properties:
Housing: Metal, IP40 protection
Dimensions: 60.2 x 112.5 x 138.5 mm
Weight: 750g
Installation: DIN-Rail mounting, wall mounting

Environmental Limits:
Operating Temperature:
Standard Models: 0 to +60°C (32 ~ 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock:  IEC 60068-2-27
Freefall:  IEC 60068-2-32
Vibration:  IEC 60068-2-6
Warranty Period: 5 years

Dimensions
Ordering Information

Company Profile

Our Vision: To be a world-class leader and trusted partner in Industry Ethernet.

Our motto: Fully understand the needs of the clients. To create value for clients with advanced technology, excellent service and customized solutions.

Shenzhen InMax Technologies Co., Ltd. Owns professional and experienced persons of research and development, management and marketing in the field of Industry Ethernet.

Shenzhen InMax Technologies Co., Ltd. Concentrate on the research and development of industrial Ethernet and optical fiber communication, has complete industrial Ethernet switch and optical fiber Ethernet switch. To meet the technical needs of the high-end market, the products are with the most reliable hardware and software with advanced network management.

To be confident from its own excellent technology and stable quality, InMax also provides customization services in-depth of ODM, including hardware, software and the complete solution of switch.

At present, the products of InMax have been widely applicated in Wind Power, Smart Grid, Expressway, Tunnels, Mining, Intelligent Transportation, and also begin being applicated in military, rail transportation, the field of harsh demands.

In recent years, for its excellent quality and professional technology, the products of InMax have been more and more favored by foreign customers. And they are sold and exported to the Middle East, Western Europe and Southeast Asia.

InMax will continuously make progress, innovate, pursue excellence, and step into a bright future with its global partners.
