Product Specifications
| Prod Model: |
PoE Switch |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

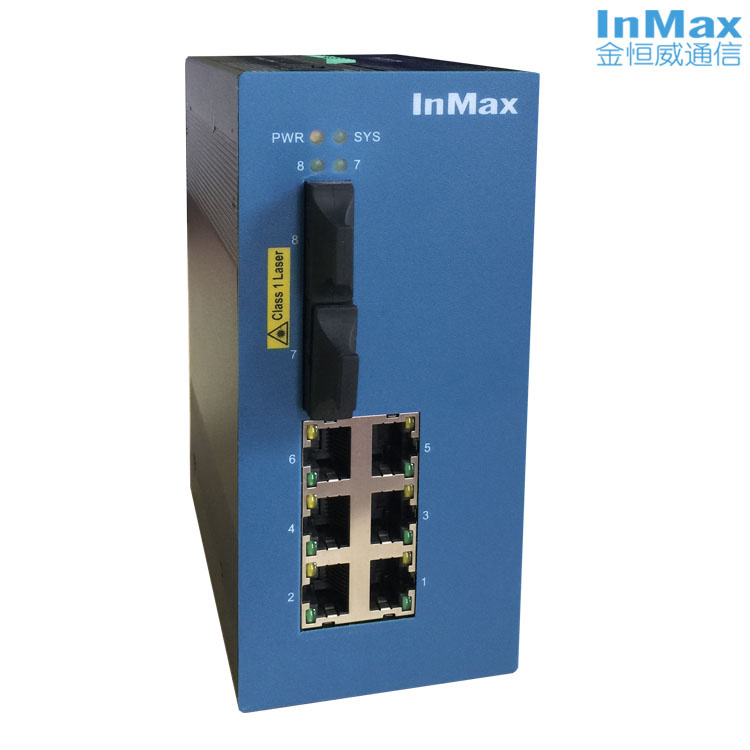

InMax P608A 6+2 PoE Managed Industrial Ethernet Switch
Man Features
Ø 6 IEEE 802.3af / IEEE 802.3at-compliant PoE and Ethernet combo ports
Ø 6x10/100Base+2x100BaseFX
Ø inMax Ring Protocol "MAX Ring" (recovery time < 20ms) and
RSTP/STP for network redundancy
Ø SNMPv1/v2c/v3 for different levels of network management
Ø Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease
network planning
Ø IGMP snooping for filtering multicast traffic
Ø Easy network management through web browser, CLI,
Telnet /serial console, SNMP
Ø Industrial-grade design with -40 to +75°C operating
temperature and redundant power inputs
Ø Metal, IP40 protection,DIN-Rail mounting, wall mounting
Overview
The P608A series PoE managed Ethernet switches come standard with 6 802.3af / 802.3at (PoE) compliant Ethernet ports, provide up to 15.4 / 30 watts at 48VDC input per PoE port. When commercial power is not available or is cost-prohibitive to provide locally in some places, the P608A series switches allow power to be supplied to the connected devices such as surveillance camera, wireless access point etc.
The P608A series managed Industrial Ethernet switches are equipped with up to 6 Ethernet ports. Automatic alarm through E-mail, relay output. inMax Ring Protocol "MAX Ring" (recovery time < 20ms) and RSTP/STP for network redundancy. RSTP/STP can increase system reliability and your network availability. Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs. The super hardware reliability is especially suitable for industrial applications.
Features and Benefits
·Advanced PoE management function
·Easy network management through web browser, CLI, Telnet /serial console, SNMP
·inMax Ring Protocol MAX Ring" (recovery time < 20ms) and RSTP/STP for network
redundancy
·IGMP snooping for filtering multicast traffic
·Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
·QoS and ToS/DiffServ to increase determinism
·Port Trunk for optimum bandwidth utilization
·RADIUS, TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH
·SNMPv1/v2c/v3 for different levels of network management
·RMON for efficient network monitoring and proactive capability
·Bandwidth management prevents unpredictable network status
·Lock port function for blocking unauthorized access based on MAC address
·Automatic alarm through e-mail, relay output
Specifications
Standards:
IEEE 802.3af / IEEE 802.3at PoE
IEEE 802.3
IEEE 802.3u
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for Flow Control
Protocols:
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client,
TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,
SSH, SNMP Inform, LLDP, SNTP Server/Client
MIB:
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control:
IEEE 802.3x flow control, back pressure flow control
Switch Properties:
Priority Queues: 4
Max. Number of Available VLANs: 256
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 1 Mbit
Interface:
Fiber Ports: 100Base-FX (SC/ST/FC connector)
RJ45 Ports: 10/100BaseTX auto negotiation
Console Port: RS-232(RJ45 connector)
Alarm Contact: 2 relay outputs with current carrying capacity of 1A@24V
LED:
System Led:SYS
Port Led:Copper: Link1~6, Act1~6
Fiber: Link/ Act 7,8
Power Led:PWR
Power Requirements:
Input Voltage: 48 VDC (36 to 72VDC), redundant dual inputs
Input Current: 0.25A@48VDC 12W(without PD)
2.2A@48VDC 105W (support up to 6 ports at 15.4W)
4A@48VDC 192W(support up to 6 ports at 30W)
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 6-contact terminal blocks
Mechanical Properties:
Housing: Metal, IP40 protection
Dimensions: 60.2 x 112.5 x 138.5 mm
Weight: 750g
Installation: DIN-Rail mounting, wall mounting
Environmental Limits:
Operating Temperature:
Standard Models: 0 to +60°C (32 ~ 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years
