Product Specifications
| Prod Model: |
H17 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Mode: |
Digital |
| Power Source: |
DC |
| Theory: |
Electronic Meter |
| Installation: |
Portable |
Product Description

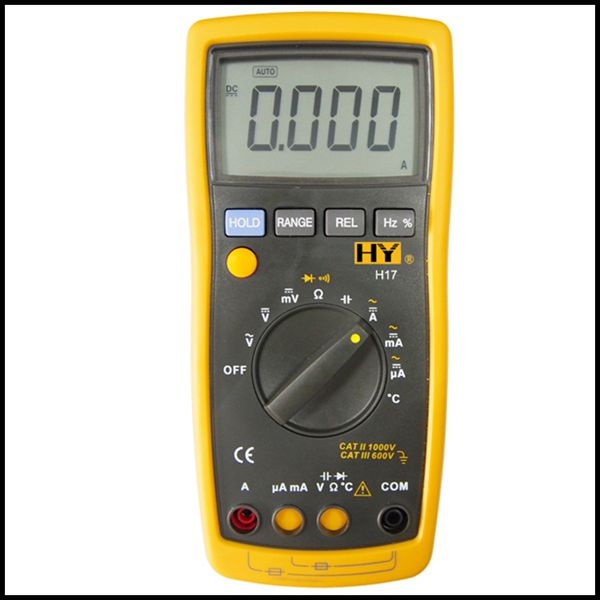

Innovative Digital Multimeter-H17 with temperature measurement+diode test
FEATURES OF INNOVTIVE DIGITAL MULTIMETER H17
1, 4000 counts
2, Diode test/Buzzer
3, Temperature Test
4, Frequency/Duty Cycle
5, Relative Measurement
6, Data Hold
7, Auto Power Off
8, Auto/Manual Ranging
9, Holster (secondary injection)
10, Mechanical/Electronic Protection System
11, In conformity with IEC 1010 CAT II 1000V
12, Convenient Fuse/Battery Change Design
13, Battery Life up to 500 Hours 500
14, Lifetime Warranty
SPECIFICATIONS of digital multimeter H17
DC Voltage range: 0.1mV-1000V
DC Voltage accuracy: ± (0.5%+3digits)
DC Current range: 0.1 μ A-10A
DC Current accuracy: ± (1.5%+3digits)
AC Voltage range: 0.1mV-1000V
AC Voltage accuracy: ± (1.0%+3digits)
AC Voltage Freq. Response: 40Hz-500Hz
AC Current range: 0.1 μ A-10A
AC Current accuracy: ± (1.5%+3digits)
AC Current Freq. Response: 40Hz-200Hz
Resistance range: 0.1Ω -40MΩ
Resistance accuracy: ± (0.5%+2digits)
Capacitance range: 0.01nF-100μ F
Capacitance accuracy: ± (3.0%+5digits)
FREQUENCY/DUTY CYCLE Range: 10Hz-100kHz
FREQUENCY/DUTY CYCLE Accuracy: ± (0.1%+3digits)
TEMPERATURE Range: -55° C-1000° C
TEMPERATURE Accuracy: ± (2.0%+1° C)
