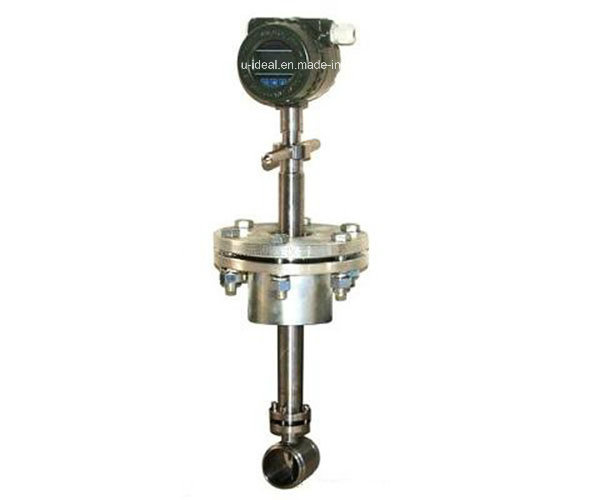

Insertiontype Vortex Flow Meter for Gas/Steam/Liquid
Product Specifications
| Prod Model: |
Insertion Flow Meter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ex-Proof: |
Exdiibt5, Exiaiict5 |
| Materials: |
Stainless Steel, Aluminum |
| Output: |
Pulse 4-20mA |
| Accuracy.: |
Liquid: ±1.0% Reading Gas, Steam |
| Protection Level: |
IP65, IP68 |
| Main Application: |
Corrosive Liquid/Gas |
| Type: |
Vortex Flow Meter |
| Size: |
Dn25~Dn500 |
| Measuring Media: |
Gas/Steam/Liquid |
Product Description
InsertionType Vortex Flow Meter for Gas/Steam/Liquid
1.This series Flowmeter can accurately measure within wide flow range of gas, liquid and steam flow rate but not influenced by fluid physical properties at the same time.
2 It is not affected by temperature and pressure, have the advantages of not easy to block, not easy card. And resistance high temperature and high pressure, safe and explosion-proof. It is used to the bad environment.
3 No moving parts and no hole aperture design. Long service life.
4 Adopting micro power consumption of new and high technology, this batery with display type flowmeter can work more than two years with continuos electricity.
5 Temperature compensation and integrated design
6 Output current type of electrical isolation, Has the good common-mode interference suppression.
7 it is Also showed flow values and cumulative flow value, and don't have to take turns to switch
8 Using vibration probe, the effective elimination of the influence of external vibration.
1.Feature |
Available:Liquid, Gas, Steam
Not For:liquid with high viscosity
Vibration will affect the accuracy
No moving part
Fluid temperature: +250ºC |
2.Specifications |
Product Structure |
|
|
Ball Valve |
Simple Insertion |
Insertion with ball valve |
Type |
A Type |
B Type |
Accuracy |
±2.5% |
±2.5% |
Display |
Optional |
Optional |
Output Signal |
Optional: Pulse or 4-20mA |
Optional: Pulse or 4-20mA |
Communication |
Optional: RS485 |
Optional: RS485 |
Power Supply |
+24VDC±15% |
+24VDC±15% |
Explosion Proof |
Optional: ExdIIBT6 or ExiaIICT4 |
Optional: ExdIIBT6 or ExiaIICT4 |
Protection Level |
IP65 |
IP65 |
Product Material |
304SS |
304SS |
Pressure Rating |
1.0MPa |
1.0MPa |
Fluid Temperature |
-20ºC~250ºC |
-20ºC~250ºC |
Ambient Temperature |
-20ºC~70ºC |
-20ºC~70ºC |
|
3.Flow range |
Diameter
(mm) |
Flow Range (m3/h) |
Diameter
(mm) |
Flow Range (m3/h) |
Liquid |
Gas |
Liquid |
Gas |
200 |
70-700 |
600-6000 |
500 |
450-4500 |
4200-42000 |
250 |
110-1100 |
1060-10600 |
600 |
600-6000 |
6100-61000 |
300
|
180-1800 | 1500-15000 | 800 | 800-8000 | 11000-110000 |
|
Packaging & Shipping
Standard export package: each unit has individual box and all boxes are packed in standard packages
As the clients requirement
