Product Specifications
| Prod Model: |
IPC02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Housing Material: |
Aluminum Alloy |
| Port: |
HDMI |
| Memory Capacity: |
2GB |
| CPU: |
Intel Atom |
| Display Type: |
LCD |
| Drive Type: |
DVD-ROM |
| GPU: |
Intel |
| HDD Capacity: |
32g SSD |
| Display Screen Size: |
No Screen Just PC Parts |
Product Description
MotherboardMini-ITX MP-270L
Embedded CPUIntel Atom CPU N270
MemorySoldered onboard 2GB DDR2-800 SDRAM
ChipsetIntel 945GSE+ICH7M Chipset
ATA2*Serial ATA II ports with 3GB/s HDD/SDD transfer rate
LAN Chipset1*Realtek RTL8111DL Gigabit Ethernet controllers
AudioALC 662 2-channel Audio Codec intergrated

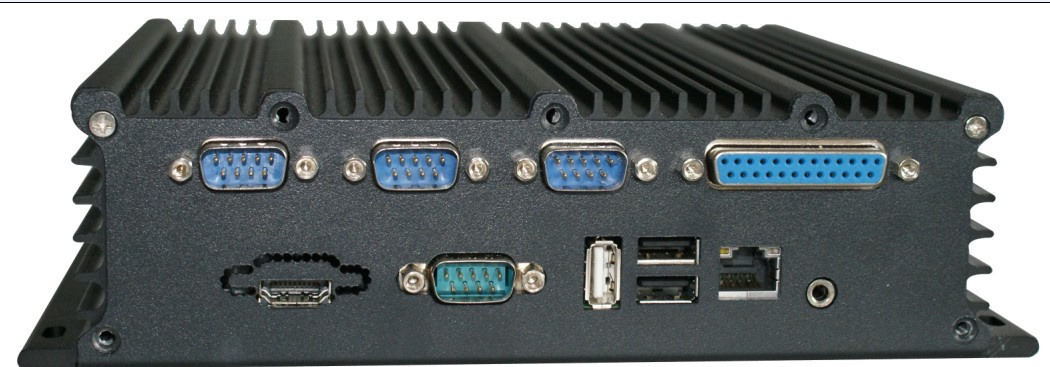

Mult I/O
IO Port4*dB-9 Male connector Port
Support 4*RS232 ports (COM1 is RS232/422/485 selectable)
1*dB-9 female connector Port
7*USB 2.0 ports
1*dB-15 female connector Port for Analog RGB
1*dB-25 female connector Digital I/O Port LPT
1*Audio
1*MIC
1*LAN
1*PS2
1*44-pin IDE Header
1*LVDS connector, supports dual channels 24-bit LVDS output
1*LVDS connector, supports single channels 18-bit LVDS output
Expansion Bus1*PCI slot w/ riser card
1*Mini PCI-E slot w/ riser card
Environmental
Operating Temp-10~60
Storage Temp-40~85
Relative Humidity20~85%
Vibration3 Grms/5~450Hz/random operation
Shock & CrashOperating 20G(11ms), Non-operating 320G with HDD
Operating 80G(11ms), Non-operating 32G with SSD
Qualification
CertificationCCC, CB, CE, FCC, RoHS
Power Requirement
Power Input100V-240V/AC 1.5A
Power Consumption40W(Max. )
Storage
Type1*2.5 "Drive bay for STAT II HDD-320G/SSD-32G
Mechanical
Construction Aluminum
MountingWall-mount (Default integrated)/DIN rail mounting
Weight/Gross weight2.1kg/2.6kg
Dimensions
(W*D*H)250*58*195mm
