Intel Ipc Embedded Fanless PC Computer Box

Name: Intel Ipc Embedded Fanless PC Computer Box
Brand: China-Manufacturer-Directory.com
SKU: 721001855
Availability: InStock
Rating: 4.9 (76 reviews)

Supplier:	Guangzhou Yulian Electronic Technology Co., Ltd.
Price:	US $ 290/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	MD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motherboard:	Mini-Itx MP-2600n
Embedded CPU:	Intel Cedar Trail Series CPU Atom N2600
Chipset:	Intel Nm10 Express Chipset
Memory Capacity:	2GB
CPU:	Intel
HDD Capacity:	320GB
GPU:	AMD

Product Description

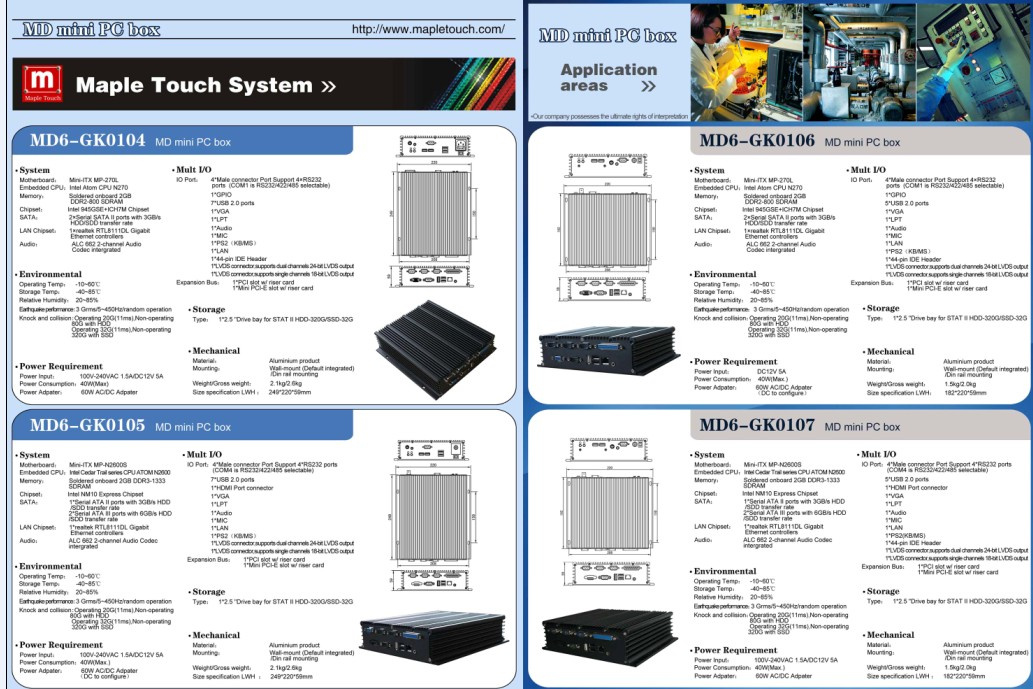

MD6-GK0105

System

Motherboard
Mini-ITX MP-2600N

Embedded CPU
Intel Cedar Trail series CPU ATOM N2600

Memory
Soldered onboard 2GB DDR3-1333 SDRAM

Chipset
Intel NM10 Express Chipset

ATA
1× Serial ATA II ports with 3GB/s HDD/SDD transfer rate
2× Serial ATA III ports with 6GB/s HDD/SDD transfer rate

LAN Chipset
1× Realtek RTL8111DL Gigabit Ethernet controllers

Audio
ALC 662 2-channel Audio Codec integrated

Mult I/O

Serial Port
4× dB-9 Male connector Port
Support 4× RS232 ports (COM4 is RS232/422/485 selectable)

USB Port
5× USB 2.0 ports

Video Port
1× HDMI Port connector
1× dB-15 female connector Port for Analog RGB
1× LVDS connector, supports dual channels 24-bit LVDS output
1× LVDS connector, supports single channels 18-bit LVDS output

Selectable Port
1× dB-25 female connector Digital I/O Port LPT

PS2 Port
1× 6-pin Mini-DIN for Keyboard and Mouse

Expansion Bus
1× PCI slot w/ riser card
1× Mini PCI-E slot w/ riser card

Environmental

Operating Temp
-10~60

Storage Temp
-40~85

Relative Humidity
20~85%

Vibration
3 Grms/5~450Hz/random operation

Shock & Crash
Operating 20G(11ms), Non-operating 320G with HDD
Operating 80G(11ms), Non-operating 32G with SSD

Qualification

Certification
CCC, CB, CE, FCC, RoHS

Power Requirement

Power Input
DC 12V Input (BNC DC Input)

Power Consumption
40W(Max. )

Power Adapter
60W AC/DC Adapter

Storage

Type
1× 2.5 "Drive bay for STAT II HDD-320G/SSD-32G

Mechanical

Construction
Aluminum

Mounting
Wall-mount (Default integrated)/DIN rail mounting

Weight/Gross weight
1.5kg/2.0kg

Dimensions
(W× D× H)
180× 58× 195mm

System
Motherboard	Mini-ITX MP-2600N
Embedded CPU	Intel Cedar Trail series CPU ATOM N2600
Memory	Soldered onboard 2GB DDR3-1333 SDRAM
Chipset	Intel NM10 Express Chipset
ATA	1×Serial ATA II ports with 3GB/s HDD/SDD transfer rate 2×Serial ATA III ports with 6GB/s HDD/SDD transfer rate
LAN Chipset	1×realtek RTL8111DL Gigabit Ethernet controllers
Audio	ALC 662 2-channel Audio Codec integrated
Mult I/O
Serial Port	4×DB-9 Male connector Port Support 4×RS232 ports (COM4 is RS232/422/485 selectable)
USB Port	5×USB 2.0 ports
Video Port	1×HDMI Port connector 1×DB-15 female connector Port for Analog RGB 1×LVDS connector,supports dual channels 24-bit LVDS output 1×LVDS connector,supports single channels 18-bit LVDS output
Selectable Port	1×DB-25 female connector Digital I/O Port LPT
PS2 Port	1×6-pin Mini-DIN for Keyboard and Mouse
Expansion Bus	1×PCI slot w/ riser card 1×Mini PCI-E slot w/ riser card
Environmental
Operating Temp	-10~60
Storage Temp	-40~85
Relative Humidity	20~85%
Vibration	3 Grms/5~450Hz/random operation
Shock & Crash	Operating 20G(11ms),Non-operating 320G with HDD Operating 80G(11ms),Non-operating 32G with SSD
Qualification
Certification	CCC , CB, CE,FCC,ROHS
Power Requirement
Power Input	DC 12V Input (BNC DC Input)
Power Consumption	40W(Max.)
Power Adapter	60W AC/DC Adapter
Storage
Type	1×2.5 "Drive bay for STAT II HDD-320G/SSD-32G
Mechanical
Construction	Aluminum
Mounting	Wall-mount (Default integrated)/Din rail mounting
Weight/Gross weight	1.5kg/2.0kg
Dimensions (W×D×H)	180×58×195mm

Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
