1) product overview:

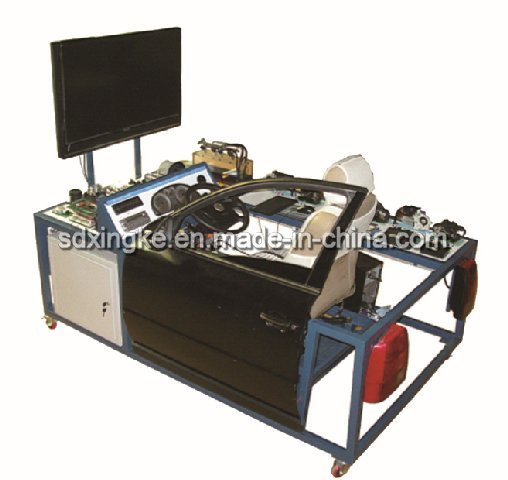

XK - DQZ1.8 TD type intelligent vehicle electrical practice teaching assessment unit, is the family company car theory and practice integrated teaching equipment series one, is 2011-2012 China auto teachers' teaching skills contest designated products.
This product will be computer, multimedia and Internet, virtual equipment, training assessment, testing equipment, teaching resources, drawing material resources organic combine, all the teaching resources according to the industry and enterprise standard design, for the teacher teaching provides a full range of teaching material support for students' training to provide maximum convenience.
This equipment has the complete vehicle electrical maintenance diagnosis, circuit fault setting and evaluation function, and equipped with Ethernet data acquisition module, which can realize remote control and testing equipment. Soft hard combination, the teachers and students to interact, theory and practice integrated teaching is the device characteristics.
2) the function features:
1, device cognitive functions: Display all car all the working conditions of power device and system work order.
2, and external connection function: Can help control the distribution of the whole car line, can meticulous to each card pin.
3, fault setting function: Can set general, medium, such as complicated fault, in order to train students ability of troubleshooting.
4, autonomous learning function: Equipment embedded the teacher lecture hall, professional maintenance manuals, accessories directory, multimedia animation and so on rich educational resources, students can independently to complete the study task according to requirements
5, assistant function: Equipment contains a lot of high-quality goods courseware, excellent teaching plan, and can help teachers better complete the teaching organizations and the formation of teaching plan.
6, simulation function: Equipment using virtual reality technology, all the parts model and real system working condition synchronous, more facilitate students' understanding of the system working principle, better learning. Three-dimensional model can fully display unit all-round appearance, can according to the real engine condition synchronous display engine components work process. Supporting ignition system, of the injection system, cooling system, lubricating system, fuel supply system, power generation system, starting system, waste gas turbine supercharging system, engine timing system synchronization 3-d multimedia teaching courseware.
7, data acquisition function: And Ethernet communication organic combination, can real-time display the test point voltage, realize the interaction of teaching and equipment.
8, intelligent circuit fault setting, automatic scoring function.
9, computer match with three dimensional model can fully display the whole car electric circuit and sensor components distribution, can virtual synchronous display automobile electrical work process.
10, television large screen help teachers and students collective learning, discussion and practice, convenient playing multimedia teaching resources, sensors, actuators, controllers of condition parameters from the big screen real-time display.
11, equipped with auto electrical maintenance for all common tools and special tools, equipped with tool cabinet, convenient use and teachers training students to tool management.
3) technical index
1, physical size: 1300 mmx2000mmx800mm
2, power supply: AC220V
3, working power supply: DC12V battery
4, product technology:
Bench selection of quality steel welding coating production and become, beautiful appearance, durable, safe and reliable. Cooperate with universal Angle wheel, mobile flexible, convenient teaching and observational learning
Shandong Xingke was established in 1999. Registered capital of our company was 12 million Chinese Yuan, and capital asset was 50 million Yuan. We have more than 300 employees till today, and more than 85% of them are specialized technicians. We have more than 30 senior & middle administrative staffs, and more than 80 senior & middle research & development engineers.
Product of our company covers many fields of educational equipment (such as electro-technology, electronic technology, electrical automatization, automation of electric power systems, pneumatic & hydraulics, mechatronics, intelligent buildings, numerically controlled lathes, etc. ). We possess 28 series, more than 280 kinds of products; And we own scores of patented products.
Our company covers more than 1, 200 square meters for research & development office. We also have a powerful R&D management team. We have built technology center, research laboratory, industrial park, nationwide marketing-network and customer service center.
We are expecting communication, cooperation and win-win business with you. Welcome to contact us when assistance is needed.
