Product Specifications
| Prod Model: |
X(S)N-55x30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
X(S)N-55X30 |
| Total Volume Of Mixing Chamber: |
125L |
| Working Volume Of Mixing Chamber: |
55L |
| Weight: |
7.1 Tons |
| Power: |
75kw |
| Using Life: |
Longer Than 15 Years |
| Control Mode: |
PLC Automatic Control |
Product Description

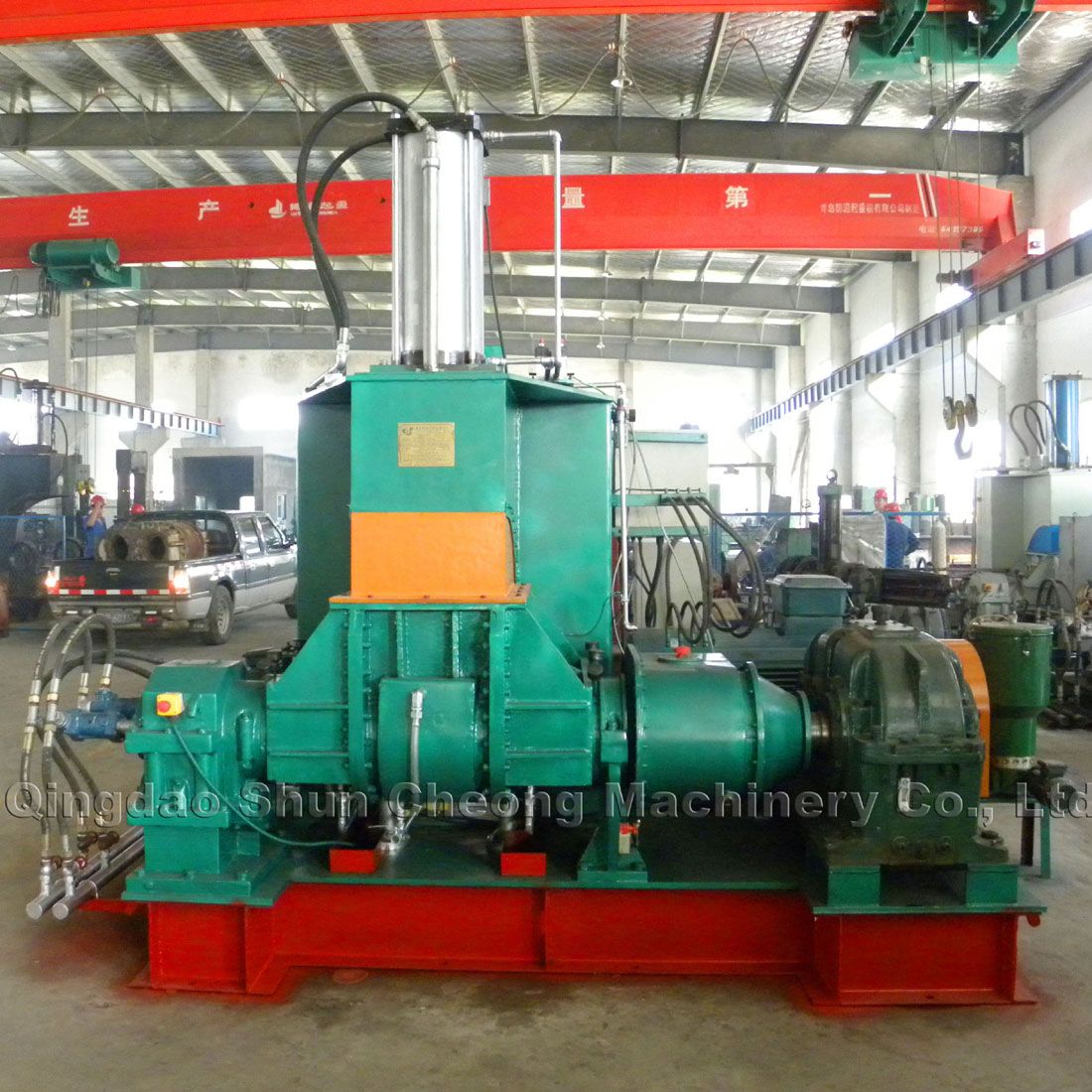

Internal Mixer, Rubber Mixer, Dispersion Mixer 55L
Products Description:
1. Mixing chamber
It is high-quality steel plate welded. It composed of the body and two side panels. Using of jacket structure for cooling or heating used. Inner face Chrome-plated
2. Thermal Resistance
Mixing chamber underside central with a plug-in thermal resistance, with PLC, Detection, control, is mixing temperature.
3. Rotor
It is similar with banbury rotor. Rotor axis central have hole communicate with the wing, forming of cooling and heating channels. Arises peak and the end surface welded wear-resistant carbide, through hard chrome plating after polishing.
4. Heating and cooling systems
A common set of piping systems, cooling water or heating steam in three columns to pass into the rotor wing, mixing chamber and ram room, circulating cooling or heating for the Materials.
5. Dust stop
Using rotor shaft and the end surface three defense lines floating oil film sealing, Durable and completely solve the problem of leaking powder.
6. Main transmission systems
Including the main motor, reducer, the speed ratio gear box, two rotors is the opposite differential rotation speed.
7. Gas control system
Including the PLC order control, two-way cylinder to drive the ram lift and down. When mixing overload, the ram automatically go up to protect motor.
8. Electronic control system
Used import PLC device, all imported electrical components or introduced technology products improve system reliability.
Qingdao Shun Cheong Machinery Co., Ltd
1. 20 years on dispersion mixer manufacturing and exporting.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong.
Item | Unit | X(S)N-35x30 | X(S)N-55x30 | X(S)N-75x30 | X(S)N-110x30 | X(S)N-150x30 | X(S)N-200x30 |
| Total Volume of Mixing Chamber | (L) | 75 | 125 | 170 | 250 | 325 | 440 |
| Working Volume of Mixing Chamber | (L) | 35 | 55 | 75 | 110 | 150 | 200 |
| Driving Motor Power | (KW) | 55 | 75 | 110 | 185 | 220 | 280 |
| Titling Motor Power | (KW) | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 |
| Rotational Speed of The Rotor (front/rear) | (r/min) | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Compressed Air | (m³/min) | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 | ≥4.0 |
| Pressure of Cooling Water (mixing rubber) | (MPa) | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
| Pressure of Heating Steam (plastic mixing) | (MPa) | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Dimensions (L x W x H) | (mm) | 3200x1900
x2950 | 3230x1927
x2958 | 3325x2615
x3150 | 4075x2712
x3580 | 4250x2750
x4106 | 4250x3400
x4215 |
| Gross Weight | (t) | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 |
Our Services
1. Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
2. In the process of production, we will take photos and send to customers for their track the progress.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. We supply overseas engineer service and help to train your workers to operate the machine.
FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with Cosco, for ensuring the goods arriving port on time.
In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Qingdao Shun Cheong Machinery Co., Ltd. (Original China Qingdao first Rubber Machinery Factory) was founded in 1968, which is a professional manufacturer in rubber machine field of China with high-tech technology. We have ISO9001: 2008, CE1282 and SGS certification. Our customers spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc. Our company's major customers including: Michelin, Bridgestone Americas Tire Operations, LLC, Kumho, Cheng Shin Rubber Industry, United States Goodyear Tire & Rubber Company etc.
Reduce the production cost and supply high efficiency rubber machines are the target aim of our service. Our company is near from Qingdao steel factory and Qianwan port, which is largely lowering the logistics cost; Germany and United States' core talents and experienced engineers and outstanding technical teams have been introduced, constantly improving the R&D capability, with the advanced fabricating equipment to develop the world excellent rubber machine, satisfying the clients high requirements.
In order to supply better service for our customers, we also provide the conveyor belt production line, waste tire processing line, tire and other rubber products' producing on- site for customers to visit and consult.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of the guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
