Product Specifications
| Prod Model: |
CES-IOT210 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
Product Description

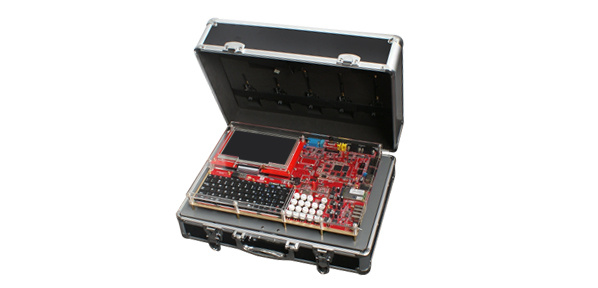

CES-IOT210 Hardware configuration:
Gateway resources:
Minimum core system
SamsungS5PV210 application processor, Cortex-A8, clocked at 1GHz
Onboard 1GB DDR2SDRAM, Samsung K4T1G084QQ
Onboard 1GB NANDFLASH, Samsung K9K8G08U0A
Intelligent power management chip selection MAXIMs MAX8698C
Ethernet: 10M/100M Ethernet interface, using DM9000AEP
Audio: I2S bus, input / output, 8 ohm / 2W speaker audio chip selection WM8580A
System bus: the system bus expansion interface, 16-bit data and address bus
Minimum System Package: S5PV210 chip 584-pin FBGA package, the core outlet with high reliability
Molex, pin pitch 0.65mm
HCI: Touch screen operation (I2C high-speed interface), notebook full keyboard input, USB mouse/
keyboard interface, Bluetooth wireless mouse/keyboard,2*8 matrix of keys(19 function keys platform),
8 controllable GPIOLED lights
Onboard Interface: 4 RS232 UART serial port, 4-Timer with PWM, 4 USB HOST (function modules can
be extended outside),LCD touch screen interface,HDMI1.3 high definition digital video output interface,
Audio digital audio output interface,1TV IN/OUT video input/output interface,VGA interface,LAN Ethernet
port, 4 SD / MMC memory interface, 3G Mini-PCIE communication module interface,mobile phone SIM
card interface,all the way to the MIC IN connector,Way Headphone port, TAG emulation debug interface
all the way, all the way LVDS interface, onboard two 8 ohm 2W speakers, all the way CMOS camera
interface
LCD Display Interface: Four-wire resistive 7 inch bright color touch screen,Pixel 800*480 LED backlight,
16:9 widescreen, 16:7 M true color, aside LVDS Capacitive screen interface, 400Kbit / s high-speed I2C
interface
Video Input/Output: Onboard HDMI, VGA, TFT LCD, TV-OUT, LVDS variety of display interfaces. Supports
CMOS camera input,CCD Camera input,VGA display with GM7123-330MHz 3-channel 10-bit high-speed
video DAC chip, LVDS display with SN75LVDS83A- LVDS interface chip, four differential signal output.
Wireless sensor network part:
Standard with a Zigbee Coordinator, 2-way Zigbee wireless routers, five terminal nodes sensors, expand
the application of a variety of networking
Standard TI CC2530, built-in hardware location engine and enhanced 8-bit 51 MCU and RF transceiver
Contains a wealth of I / O ports, a built-in temperature sensor, serial port, A/D and a variety of commonly
used peripheral interfaces
Comply with IEEE802.15.4/ZigBee standards, frequency range 2045M-2483.5M, freely in the frequency
range of 16 switch
Wireless data transmission rate of approximately 250kb/s,the communication distance of 30 to 300meters
256K programmable-chip Flash and 8K of RAM
Configuration ZigBee emulator circuit can be configured Sensor: Node sensor, temperature sensor, the
photosensitive sensor, vibration sensor
Wireless RFID(High frequency13.56MHz):
RFID master MCU selection the STCs STC89C54RD enhanced 51 microcontroller
Maximum clock frequency up to 80MHz
Chip equipped with 16KB of FLASH program memory ROM and 1KB data memory RAM
RF reader chip highly integrated NXP CLRC632 transmission rates up to 424kbps
Support ISO14443 A & B, ICODE1, ISO15693 multi-standard RF protocol
Largest non-contact distance of up to 100mm
Specs 16 × 2 character dot matrix display, can display the corresponding data manipulation
RFID system through the serial port with the host computer gateway for data communication
Short-range communication module and other modules:
Wifi Communication Module: Marvell 88W8686 chipset, supports IEEE 802.11B / G protocol, SDIO
interface.
BT Bluetooth module: Supports high-speed USB interface, Bluetooth module, Bluetooth high speed
data communications.
3G communication module: ZTE AD3812 chipset,PCI Express Mini Care interface, support for WCDMA
(UMTS) networks,GSM / GPRS /EDGE network card, supporting WCDMA 850MHz, 1900MHz, 2100MHz
tri-band, Support GSM/GPRS/EDGE 850MHz,900MHz,1800MHz and 1900MHz quad-band,3G wireless
data communications to achieve, send and receive text messages and other functions
GPS positioning module: Adopt SiRFs GP3SF1513F1-S high-performance chipset, frequency L1
1575.42MHz, C / ACode, supports 20 satellite channels, compatible with SBAS(WAAS, EGNOS, MSAS)
OmniVision OV3640 1/4" QXGA(2048*1536)CMOS Chipset 300 million pixels, the maximum frame rate
Google Android 4.0
CES-IOT210 Gateway software resources:
Kernel:Linux 3.0.8
System boot:U-boot-1.3.4
Debugging tool:DNW 1.01
Cross compiler:arm-2009q3
File System:AMDISK,YAFFS2
GUI:Google Android 4.0
GPS module:Support SIF III Global Positioning
Camera module:Support CMOS driver
Ethernet module:10M/100M adaptive network port driver
HDMI Display:Support HDMI output
AUDIO driver:Support AUDIO
LCD Display:Support LTE480 WVGA(800*480)
TOUCH driver:Four-wire resistive touch screen driver
I2C driver:Audio, Camera, HDMI with the I2C driver to communication
USB HOST driver:Support HOST function, canconnect U disk,Mouse,Keypad
USB OTG driver:Support device function
Keypad driver:Support 8*8 button scanning
SD/MMC interface:Support high speed SD/MMC Card
RTC driver:Support real time clock
MFC driver:Multi-Format Video Codec
UART driver:Serial communication
JPEG driver:JPEG CODEC
2D driver:2D hardware acceleration
3D driver:3D hardware acceleration
Adobe Flash player:Web flash player software
Media player:Video player
min3dSampleProject:3 D graphics acceleration test
Serial Port:Serial tools
Rock player:RMVB format video player
Recorder:Recording function test
OI File Manager:File browser
Wave blazer:Android game
MobileQQ1.0(Android):Android QQ
Support 1080P VideoPlay
Support Flashplayer v10.3 Web Flash Play
Support 3DGraphic Imaging(SGX540)
Support HDMI 1.3High Definition Digital Output, support 1080P
Support Mp3, Mp4,RMVB formats such as audio and video
Support GoogleAndroid 2.2 New
Support Googleplay, support WiFi Network Positioning
Support Tencent Q Q,Skype
Support multiple games
Gateway part of the experiment content:
Hello Android applications experiment
TOUCH touch screen driver experimental
HDMI high-definition video experiment
LCD display experiment
VGA display experiment
Audio and experimental
USB HOST experiment
USB OTG experiment
SD / MMC interface experiment
LAN Ethernet communication experiment
3D graphics acceleration experiments
RTC real time clock experiment
The KEYPAD matrix keyboard experiment
LED I / O control experiments
Wireless sensor gateway software resources:
The TI CC2530 support the ZigBee2007 specification and supports a star network, tree network, mesh
network,multi-tasking
RFID ISO14443 A & B, ICODE1, ISO15693 multi-standard RF protocol
Support for 3G wireless text messaging, Internet access, data transmission
Support 802.11b / g WiFi wireless communication protocol
To support 2.4G Bluetooth data communication
Based on CC2530 Zigbee network communication experiment
Based on CC2530 Zigbee basis advanced experiment: I/O port input and output experiment, the timer
experiment,A/D conversionexperiments, the microcontroller and the PC communication experiment, the
external interrupt,the wireless signal transceiver experiment, Zigbee master-slave node communication
experiment
The sensor information collection experimental
RFID radio frequency card information collection experiments
WIFI wireless communication experiment
3G module communication experiment
The BT Bluetooth data transmission experiment
Integrated application part of the experiment:
Truck vibration system
Intelligent street lighting system
Agricultural intelligent greenhouse system
Access Control System
Cafeteria meal management system
