Product Specifications
| Prod Model: |
HHD7-H3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Device Type |
| Certification: |
CCC |
| Working Power: |
DC24V; AC24V, 220V, 380V |
| Delay Range: |
Corotation/Inversion:(1,2,4,8)*(M,S, 15s) |
| Working Mode: |
Corotation-Stop-Inversion-Stop... |
| Contact Form: |
2 Groups No Contact |
| Contact Capacity: |
3A AC220V(Resistance) |
| Outline Dimension: |
78*50*80mm |
| Installation Mode: |
Device Type |
Product Description

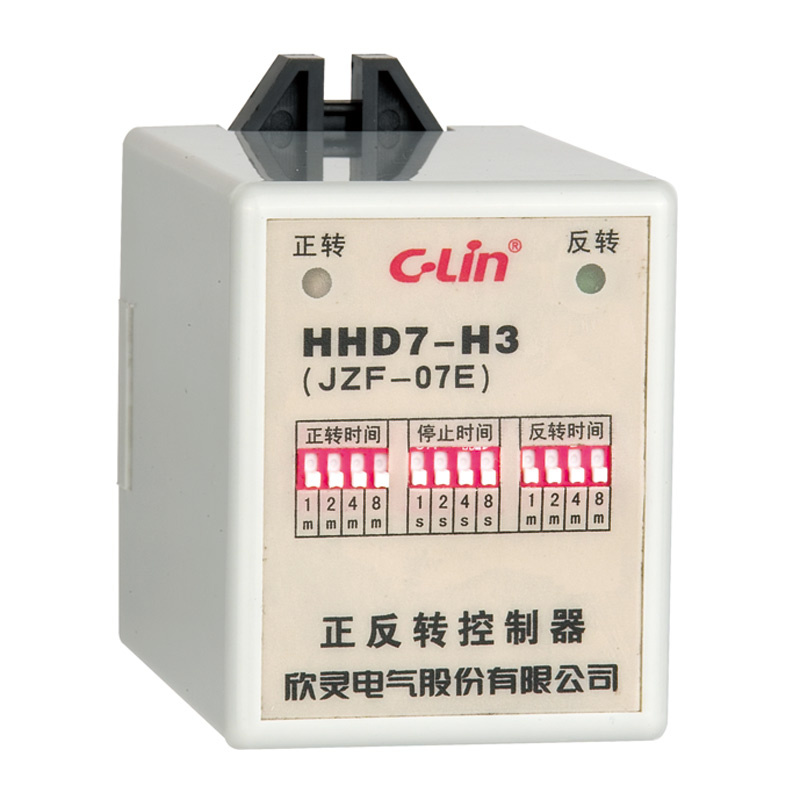

Motor Protector HHD7-H3(JZF-07E) Introduction
HHD Series motor protector can be used in the circuit of alternating current 50Hz, rated working current 380V.
Motor control circuit can be formed by combining motor protectors with switching apparatus like AC contactors. When the abnormal working states(such as phase failure, overloading, three-phase unbalance, overvoltage, undervoltage, short circuit etc. ) emerge in the main circuit of motors, motors can be protected quickly and reliably by breaking switch and disconnecting three-phase power.
HHD Series motor protectors conform to GB14048.4 standard and got CCC approval.
Technicla Specification
| Product name | corotation/inversion controller/ Motor Protector |
| Model number | HHD7-H3(JZF-07E) |
| Working power | DC24V; AC24V, 220V 380V |
| Time delay range | corotation/inversion: (1, 2, 4, 8)*(m, s, 15s) |
| pause: (1s, 2s, 4s, 8s) |
| Timing error | less than or equal to 1%or minus 2% |
| Working mode | corotation-pause-inversion-pause-... |
| Contact form | 2C NO contact |
| Contact capacity | 3A AC220V(resistance) |
| Outline dimension | 78*50*82mm |
| Installation mode | device type |
Xinling Electrical Co., Ltd. China was established in 1990. The company has 9 sub-branches, more than 100 cooperation units, and 100 direct distributors, 1000.00m2 factory area and 1000 stuffs.
The company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, itsstreng thens the management or enterprise and promotes product quality. The company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling --- will create a magnificent tomorrow together with you!
