Product Specifications
| Prod Model: |
DP-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Dp-100 Digital Radio |
| Waterproof Rate: |
IP67 |
| Output Power: |
5W |
| Capacity Of Battery: |
1400mAh |
| Charger: |
USA, Eur, England, Ect |
| Channel: |
16 |
| Frequency Range: |
136-174MHz/400-480MHz |
| Voice Encryption: |
Yes |
| OEM/ODM Order: |
Yes |
| Offer Sample Testing: |
Yes |
| Talk Range: |
8km Max |
| Style: |
Handheld |
| IP Rating: |
IP67 |
| Usage: |
Army |
| Type: |
Handheld |
| Battery Type: |
Lithium Battery |
| Working Frequency Range: |
VHF Segment |
Product Description
Professional two way radio manufacture --------------more than 15years----------FCC, CE, KCC--------------Made in China YANTON-----------
________________________________________________________________________________

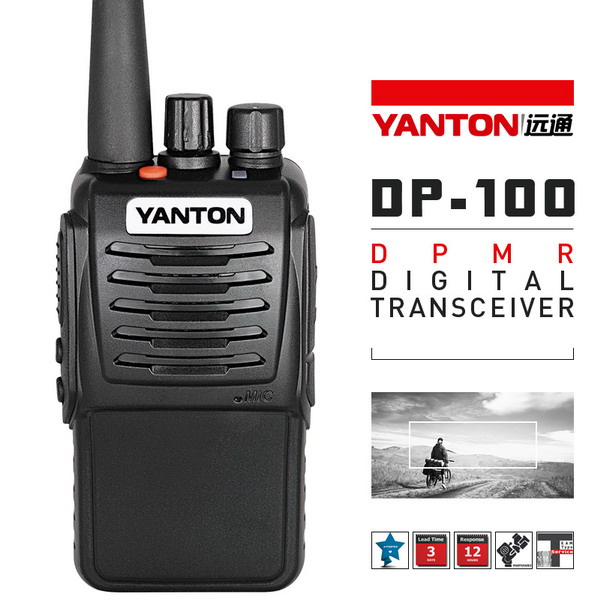

IP67 waterproof vhf/uhf digital radio (YANTON DP-100)
Main features
- Channel spacing 6.25Khz(Digital),wide/narrow band(12.5Khz/25Khz) switchable(analog)
- Single call, selective call and group call
- Low voltage alarm
- Remote Kill , Stun, Activate & Revive
- In the digital mode, Adopt new power technology and power save function, longer battery working time
- Side-key setting
- Priority scan
- FEC technology, make voice clear
- Voice encryption
- IP67 waterproof
- Time out timer (TOT)
- 1500MAH battery
Specification
General
|
| Model | DP-100 | DP-100 |
| Frequency range | VHF | UHF |
| 136-174MHz | 400-470MHz |
| Number of channels | 16 |
| Channel spacing | 12.5/25KHz(analog);6.25KHz(digital) |
| Working voltage | 7.4V DC±20% |
| Capacity of battery | 1500Mah(Li-ion battery) |
| Antenna impedance | 50Ω |
| Operating temperature | -20°C~+60°C |
| Frequency stability | ±2.5PPM |
| Size | 113*54*32mm |
| Weight (without battery) | 220g |
| Package | Box(machines and accessories) |
| Transmit |
| RF output power | VHF 5W(High);1W(low)
UHF 5W(high);1W(low) |
|
| 4FSK digital modulation | 4K00F1E |
|
| Maximum deviation | ≤±5.0KHz(width)≤± 2.5KHz(narrow) |
|
| Spurious emission | ≤65dB |
|
| Modulation distortion | ≤5%(300-3000Hz) |
|
| FM noise | ≤-45dB(width) ≤-40dB(narrow) |
|
| Receiver |
| Sensitivity (12dB SIND) | 0.2μV |
|
| Squelch selective | 0.15μV |
|
| Adjacent channel selectivity | ≥65dB (width) |
|
| Inter-modulation | ≥65dB |
|
| Spurious rejection | ≥60dB |
|
| Image rejection | ≥65dB |
|
| FM noise | ≤-45dB(width) |
|
| Modulation | 16KOF3E |
|
| Operating bandwidth | ≤±7KHz |
|
| Audio output power | 0.5w@4Ohms |
|
| Audio distortion | ≤5% |
|
| Digital protocol | DPMR |
-----------------------------------------------------------------------------------------------------------------------------------------------
Note:1. Please contact us at first time for bulk order. Large discount is waiting for you.
2. OEM/ODM service, we can design packing box and Logo mark as your requirement.
3. Sample time: 7 days
4. Payment: T/T, Western union, Paypal
5. Warranty: One year
6. Lead time: 3 days for 500 units, 15 days for 10000 units.
7. Shipping way: By sea or by air
-----------------------------------------------------------------------------------------------------------------------------------------------
Maintenance:Radio transceiver should be treated with care. The suggestions below will help you to fulfill any warranty obligations and to enjoy this product for many years
- Do not attempt to open the unit. Non-expert dealing with the unit may damage it.
- When using regulated power supply, take notice of power voltage must be between 6V and 8V to avoid damage the radio
- Do not store the radio under the sunshine or in hot areas. High temperatures will shorten the life of electronic devices, and warp or melt certain plastics.
- Do not put the radio in dusty, dirty areas.
- If it appears that the radio diffuses peculiar smell or smoke, please turn off it immediately and take off charger or battery in the radio, then contact with YANTON agency.
- Do not transmit without antenna
-----------------------------------------------------------------------------------------------------------------------------------------------
