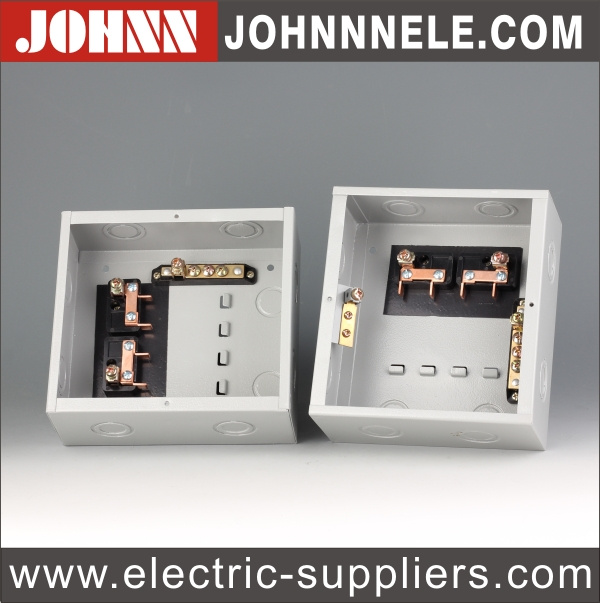

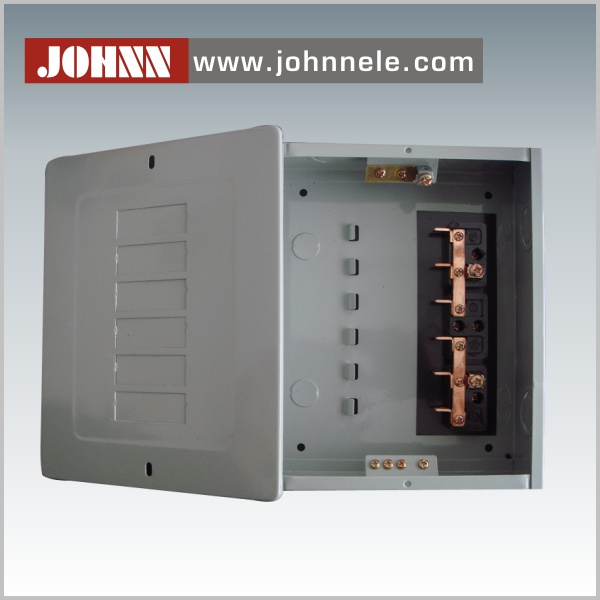

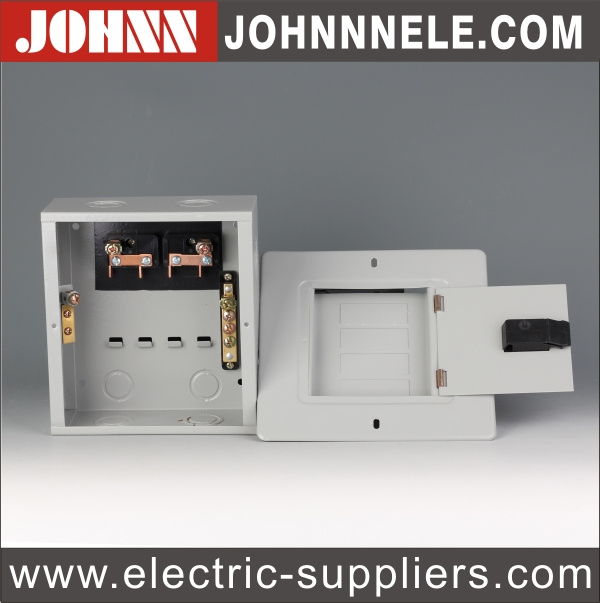

Iron Distribution Box Electrical Box Load Center
Product Specifications
| Prod Model: |
GE Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo or Shanghai |
| Rated Current (a): |
40-100A |
| Rated Voltage (V): |
120/240V |
| No.of Way: |
2-8 |
| Material: |
Iron |
| Type: |
Distribution Metering Box |
| Structure: |
Fixed Board |
Product Description
Detailed Information of GE Series Distribution Box
1. Model Number : GE-GTLS
2. Rated Current :
40-100A
3. Rated Voltage :
120/240V
4. HS Code : 8537109090
5. Samples : GE Series Distribution Box 's samples is available.
6.Application:
GE Series have been designed for safe , reliable distribution and control of electrical power as service
entrance equipment in residential, commercial and light industrial premises.
7.Feature :
* Made out of high quality steel sheet of up to 0.8-1.2mm thickness
*Matt-finish polyester powder coasted paint.
*Knockouts provided on all sides of the enclosure.
*Accept GE type 1" THQL Breakers.
*Suitable for single-phase, Three-wire, rated current to 100A, Sevice voltage to 120/240VAC.
*Wider enclosure offers ease or wiring and move heat dissipation.
*Flush and surface mounted designs.
*Knockouts of cable entry are provided on Top, Bottom of the enclosure.
8. Delivery Time : Within 25 days after receipt deposit.
9. Delivery Methods : By Sea or By Air (Express DHL, FEDEX, TNT).
10. Payment Terms : L/C, T/T, Western Union, Money Gram; 30% deposit, balance see the copy of B/L by email or negotiation.
11. Unit Price : The price is negotiable.Specification of GE Series Distribution Box
|
Model Number |
Front Type |
Main Ampere Rating |
Rated Voltage (V) |
No.of Way |
|
GE-GTLS-2WAY |
Flush/ Surface |
40,60 |
120/240 |
2 |
|
GE-GTLS-4WAY |
Flush/ Surface |
40,100 |
120/240 |
4 |
|
GE-GTLS-6WAY |
Flush/ Surface |
40,100 |
120/240 |
6 |
|
GE-GTLS-8WAY |
Flush/ Surface |
40,100 |
120/240 |
8 |
|
GE-GTLS-12WAY |
Flush/ Surface |
40,100 |
120/240 |
12 |
|
ITEM NO |
QTY/CTN |
Package Size
(CM) |
GW
(KGS) |
NW
(KGS) |
|
GE-GTLS-2WAY |
20 |
43.5 |
32 |
41.5 |
19 |
17 |
|
GE-GTLS-4WAY |
20 |
43 |
40.5 |
43 |
19 |
18 |
|
GE-GTLS-6WAY |
20 |
53 |
40.5 |
43 |
24 |
23 |
|
GE-GTLS-8WAY |
10 |
37 |
32 |
43 |
16 |
15 |
|
GE-GTLS-12WAY |
10 |
52.5 |
38.5 |
37 |
18 |
15 |
