Irrigation Machinery of Rainfine Drivable Mobile Pivot

Name: Irrigation Machinery of Rainfine Drivable Mobile Pivot
Brand: china-manufacturer-directory.com
SKU: 742378225
Availability: InStock
Rating: 4.9 (55 reviews)

Supplier:	Rainfine (Dalian) Irrigation Co., Ltd.
Price:	US $ 35000-70000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tire:	Plastic and Rubber
Rim:	10*38'
Collector Ring:	16 Wires
Type:	Irrigation System
Drainage & Irrigation Mode:	Sprinkler Irrigation Equipment
Application Field:	Agriculture

Product Description

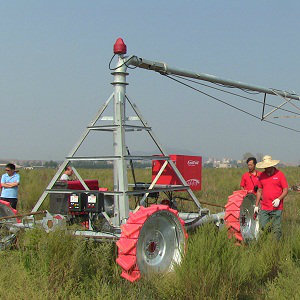

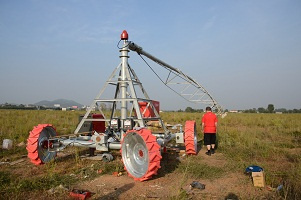

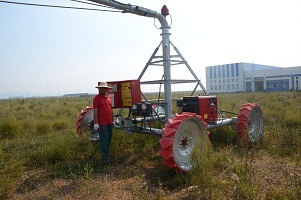

Rainfine drivable mobile pivot

The new concept Rainfine drivable mobile pivot is:
1.Two wheels on the span can be turned automatically by the motor in the center of the drive tube.
2.Four wheels on the pivot point can be turned by the motor in the center of the pivot.
3.Pivot can be driven by the motors to any place you want.
4.All the wheels can be turned back to the irrigation position by motors after towing.

Only one farmer is needed to do this work by switching on/off the switches on the panel.

MORE DETAILS, PLEASE FIND THE COMPONENTS !

We will dispatch our engineers to organize the installation work but the owner will organize labors. Normally one 7 spans pivot needs 8 labors working 1 week for installation.

Warranty:
1 year concerning electric equipment
10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
20 years concerning the galvanized equipment against corrosion
3 years for tires and rims

Items	Specification	Items	Specification
Pivot length	41.1-791.2m	Land covered	0.53-196.7ha
Qty.of spans	1-16	Span length choice	41.1/47.8/54.4/61.3m
Overhang length	6.7/13.4/20.1/26.8m	Pivot clearance	2.91-3.75m
Span dia.	141/168/203mm	Pivot height	4.62-5.46m
Span thickness	3mm	Surface	Hot dip galvanization
Flow rate	15-1080m 3 /hr	Water pressure at pivot base	1-7.5Bar
Friction Loss	0-2.5bar	Tire	Rubber: 320×1260 mm Plastic: 318×1170 mm
Max speed	142m/hr	Sprinkler	Nelson/Senninger
Regulator	10/15psi	Type of drops	Flex 5.5-ft drops
Gear box	50:1 heavy duty	Gear motor	33rpm(full loaded) at 380V.3/4HP 40:1 Ratio. Over-heating protection
Control panel	Standard	Required run power	0.7-11.5kw
Power supply	415V 50HZ	Irrigation Hours/Day	0-24hr/day
Daily applicationrate	0-50mm/day	Pressure gage	0-60psi

Rainfine has been designing, manufacturing and installing center pivot and lateral move systems since 2002, providing international clients with customized watering solutions. We have access to the most advanced technology in addition to experience in this field.

We know that every farm is different and every crop requires specific care. At Rainfine, we help you plan out every aspect of your irrigation solutions, including long-term cost benefits. After surveying the land, we customize an irrigation layout design that maximizes your valves, we manufacture center pivot systems that can withstand wind, rain and snow, lasting you years. Whatever your budget, climate or size of your field, Rainfine will find an energy and water-conserving irrigation solution that's tight for you.

OUR MISSION:

HELP INVESTORS IN AGRICULTURAL BUSINESS:

1. MAKE THE MOST OF MONEY

2. INCREASE CROP YIELDS

3. SAVE WATER RESOURCES

OUR WORK:

Provide consultation services in every aspect of your irrigation solutions, including:

ª Land surveying and planning

ª Pipeline network calculation

ª Pump station calculation and design

ª Business proposals and budget plans

ª Pumps, valves and irrigation machines supply

ª Installation and commissioning

Whatever your budget, climate or size of your field, Rainfine will find an energy and water-conserving irrigation solution that's tight for you.

Goal of Rainfine is to provide high quality irrigation machines and services at affordable prices. In recent years as our business has developed, we've expanded our market to more countries, tackling a range of tough projects with sloping terrain, particularly dry climates and large fields.

Our irrigation manufacturing meets the following standards:

International: ISO15873 ISO12374 ISOTR15155

French: NFEN909

British: BSEN12325-2

American for galvanizing: A123

ISO9001-2008 QC standard

Improve our irrigation equipment to meet the specific needs of our customers is always on our schedule. With several patented inventions, we will keep on forward and maintain enthusiasm.

Our newest developments:

No-maintenance collector rings using 16 wire radar technology

Drivable pivot with automatic wheel turning system

No-maintenance plastic tires that never have a flat

Radio and mobile phone automatic control system

Farm management system that monitors and reports climate and soil moisture

Where we export our products:

Argentina, Australia, Brazil, Chile, Ghana, Germany, Ethiopia, France, New Zealand, Libya, Mongolia, Iraq, Paraguay, Saudi Arabia, Sudan, United States and Zambia.

We also supply our products to CIS countries such as Kazakhstan, Russia, and Ukraine.
