Irrigation Machinery of Rainfine Towable Pivot

Irrigation Machinery of Rainfine Towable Pivot
Supplier: Rainfine (Dalian) Irrigation Co., Ltd.
Price: US $ 35000-70000set
Min Order: 1set
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Irrigation System
Drainage & Irrigation Mode: Sprinkler Irrigation Equipment
Application Field: Agriculture

Product Description

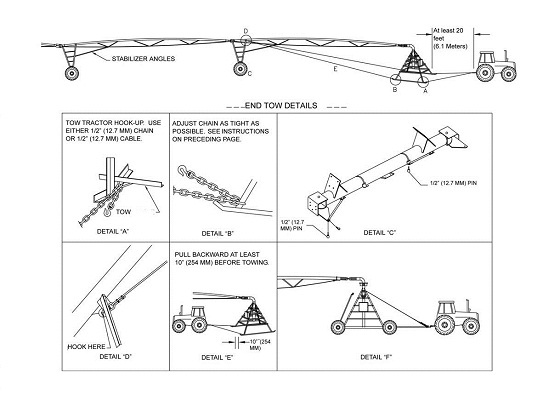

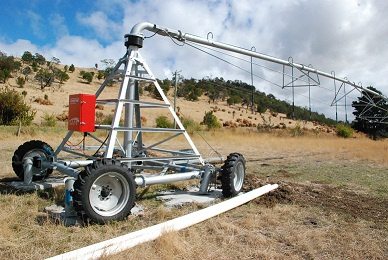

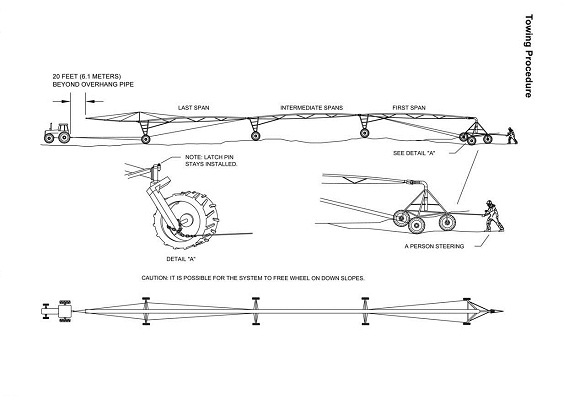

Rainfine towable center pivot


Rainfine is an irrigation company for center pivot and lateral move system based on China manufacturing since 2002. We are the main supplier for international irrigation manufacturers of USA, France and Saudi Arabia.

Our products are mainly supplied to:
Argentina, Australia, Brazil, Chile, Ghana, Germany, Ethiopia, France, New Zealand, Libya, Mongolia, Iraq, Paraguay , Saudi Arabic, Sudan, USA, Zambia.
We also supply our products to CIS countries: Kazakhstan, Russia, and Ukraine.

We implemented many projects from all over the world, even in the tough environment, we have helped investors to design the projects, choose the pipeline, build the pump station and set up the irrigation equipments.



We use high frequency electric heating system to heat both ends of the steel rods and use head forging machine to form them. When the rod being cut as the picture shows, you can find that the steel rod and the headed part are exactly the same molecular. This truss rod can stand 60,000psi yield strength. We use 22mm diameter rods instead of 19mm to make it stronger than other manufacturers.

We will dispatch our engineers to organize the installation work but the owners will organize labors. Normally one 7 spans pivot needs 8 labors working 1 week for installation.


MORE DETAILS, PLEASE FIND THE COMPONENTS !

Warranty:
1 year concerning electric equipment
10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
20 years concerning the galvanized equipment against corrosion
3 years for tires and rims



Notice:

1. If you want pivot, please give us the following details"

    - your country and name

    - land area (in ha or m2 )

    - crop and water application (mm/day or m3 /h or LPS)

    - working degree (0- 360O  )

   - if you need any extras (options) for pivot such as Diesel generator, end gun with booster pump, corner control system for end gun, Fertilizer unit

2. Parts are not sold seperately, except for large amount.


Items Specification Items Specification
Pivot length 41.1-791.2m Land covered 0.53-196.7ha
Qty.of spans 1-16 Span length choice 41.1/47.8/54.4/61.3m
Overhang length 6.7/13.4/20.1/26.8m Pivot clearance 2.91-3.75m
Span dia. 141/168/203mm Pivot height 4.62-5.46m
Span thickness 3mm Surface Hot dip galvanization
Flow rate 15-1080m 3 /hr Water pressure at pivot base 1-7.5Bar
Friction Loss 0-2.5bar Tire Rubber: 320×1260 mm
Plastic: 318×1170 mm
Max speed 142m/hr Sprinkler Nelson/Senninger
Regulator 10/15psi Type of drops Flex 5.5-ft drops
Gear box 50:1 heavy duty Gear motor 33rpm(full loaded) at 380V.3/4HP 40:1 Ratio. Over-heating protection
Control panel Standard Required run power 0.7-11.5kw
Power supply 415V 50HZ Irrigation Hours/Day 0-24hr/day
Daily applicationrate 0-50mm/day Pressure gage 0-60psi

Rainfine has been designing, manufacturing and installing center pivot and lateral move systems since 2002, providing international clients with customized watering solutions. We have access to the most advanced technology in addition to experience in this field.

We know that every farm is different and every crop requires specific care. At Rainfine, we help you plan out every aspect of your irrigation solutions, including long-term cost benefits. After surveying the land, we customize an irrigation layout design that maximizes your valves, we manufacture center pivot systems that can withstand wind, rain and snow, lasting you years. Whatever your budget, climate or size of your field, Rainfine will find an energy and water-conserving irrigation solution that's tight for you.

OUR MISSION:

HELP INVESTORS IN AGRICULTURAL BUSINESS:

1. MAKE THE MOST OF MONEY

2. INCREASE CROP YIELDS

3. SAVE WATER RESOURCES

OUR WORK:

Provide consultation services in every aspect of your irrigation solutions, including:

ª Land surveying and planning

ª Pipeline network calculation

ª Pump station calculation and design

ª Business proposals and budget plans

ª Pumps, valves and irrigation machines supply

ª Installation and commissioning

Whatever your budget, climate or size of your field, Rainfine will find an energy and water-conserving irrigation solution that's tight for you.

Goal of Rainfine is to provide high quality irrigation machines and services at affordable prices. In recent years as our business has developed, we've expanded our market to more countries, tackling a range of tough projects with sloping terrain, particularly dry climates and large fields.

Our irrigation manufacturing meets the following standards:

International: ISO15873 ISO12374 ISOTR15155

French: NFEN909

British: BSEN12325-2

American for galvanizing: A123

ISO9001-2008 QC standard

Improve our irrigation equipment to meet the specific needs of our customers is always on our schedule. With several patented inventions, we will keep on forward and maintain enthusiasm.

Our newest developments:

No-maintenance collector rings using 16 wire radar technology

Drivable pivot with automatic wheel turning system

No-maintenance plastic tires that never have a flat

Radio and mobile phone automatic control system

Farm management system that monitors and reports climate and soil moisture

Where we export our products:

Argentina, Australia, Brazil, Chile, Ghana, Germany, Ethiopia, France, New Zealand, Libya, Mongolia, Iraq, Paraguay, Saudi Arabia, Sudan, United States and Zambia.

We also supply our products to CIS countries such as Kazakhstan, Russia, and Ukraine.
