Product Specifications
| Prod Model: |
J0100YTL-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Aluminum |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
1. Starting device is e-PTC
2. Frequency only for 50HZ
3. Voltage application from220 to 240V
4. Application in display cabinets, freezers, vending machines, ice machines and other large and medium-sized refrigeration equipments.
5. Good reliability
6. High efficiency
7. Low vibration
8. COP is 1.75
9. The cooling capacity 100W
10. RSCR Motor
11. Cooling type Static
12. With running capacitor
13. Aluminium wire compressor
14. J0100YTL has passed CCC/CE/CB/VDE certification
15. LBP
16. Compressor should be stored in a dry and drafty place.
17. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
18. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
19. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

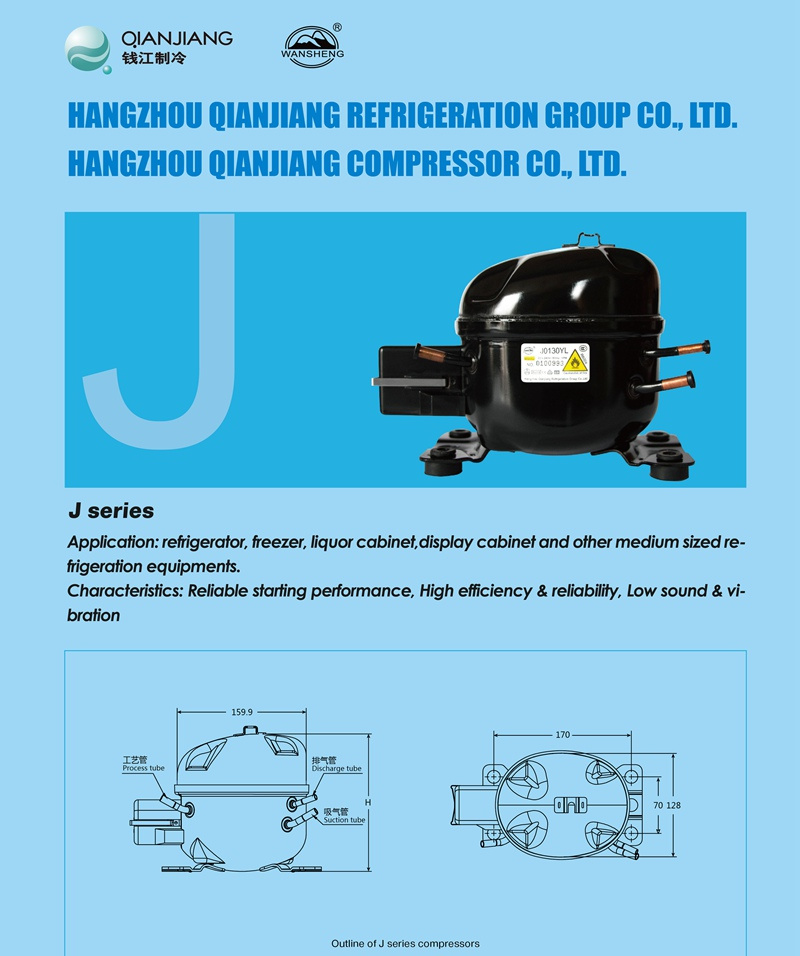

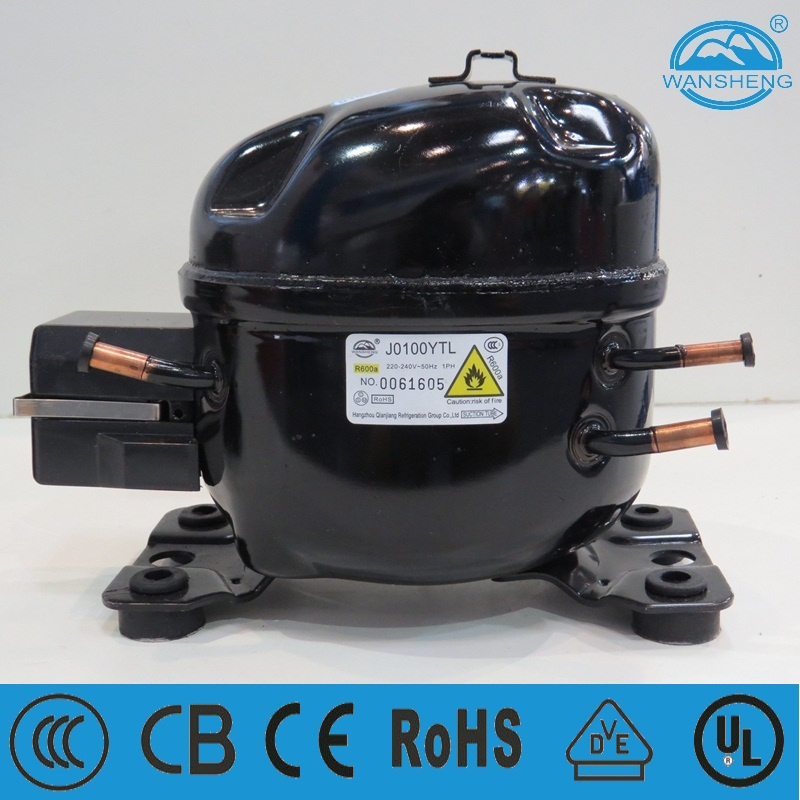

20. J series J0100YTL is the refrigerator compressor CE approved
21. Use R600a refrigerant
22. OEM is welcome
23. Cheap price provided for the compressor J0100YTL makes the customers better choice

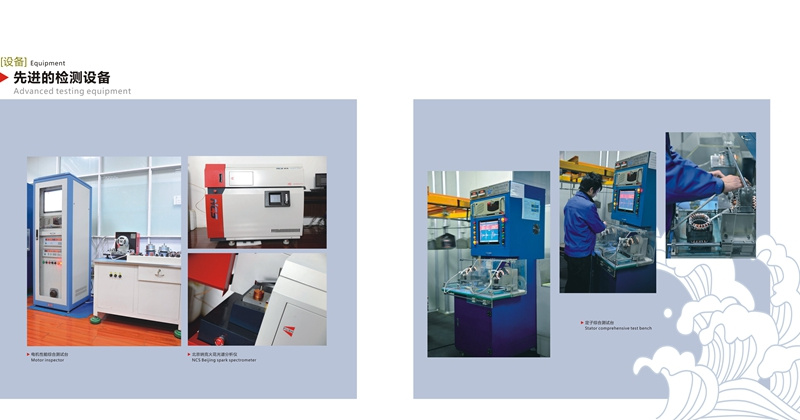

24. Experienced staff ensure produce of the compressors with good quality
WANSHENG R600a LBP Compressor |
Test Conditions | LBP ASHRAE | Subcooling Temp.: 32.2°C |
| Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 32.2°C |
Model |
Power Supply
(V/Hz) | Nominal Power
(HP) |
Cooling Capacity
(W) |
COP Power Efficiency
COP (W/W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
J Series 220-240V~50Hz |
| J0100YTL | 220~240V 50Hz | 1/13 | 100 | 1.75 | RSCR | e-PTC | / | 3 | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
