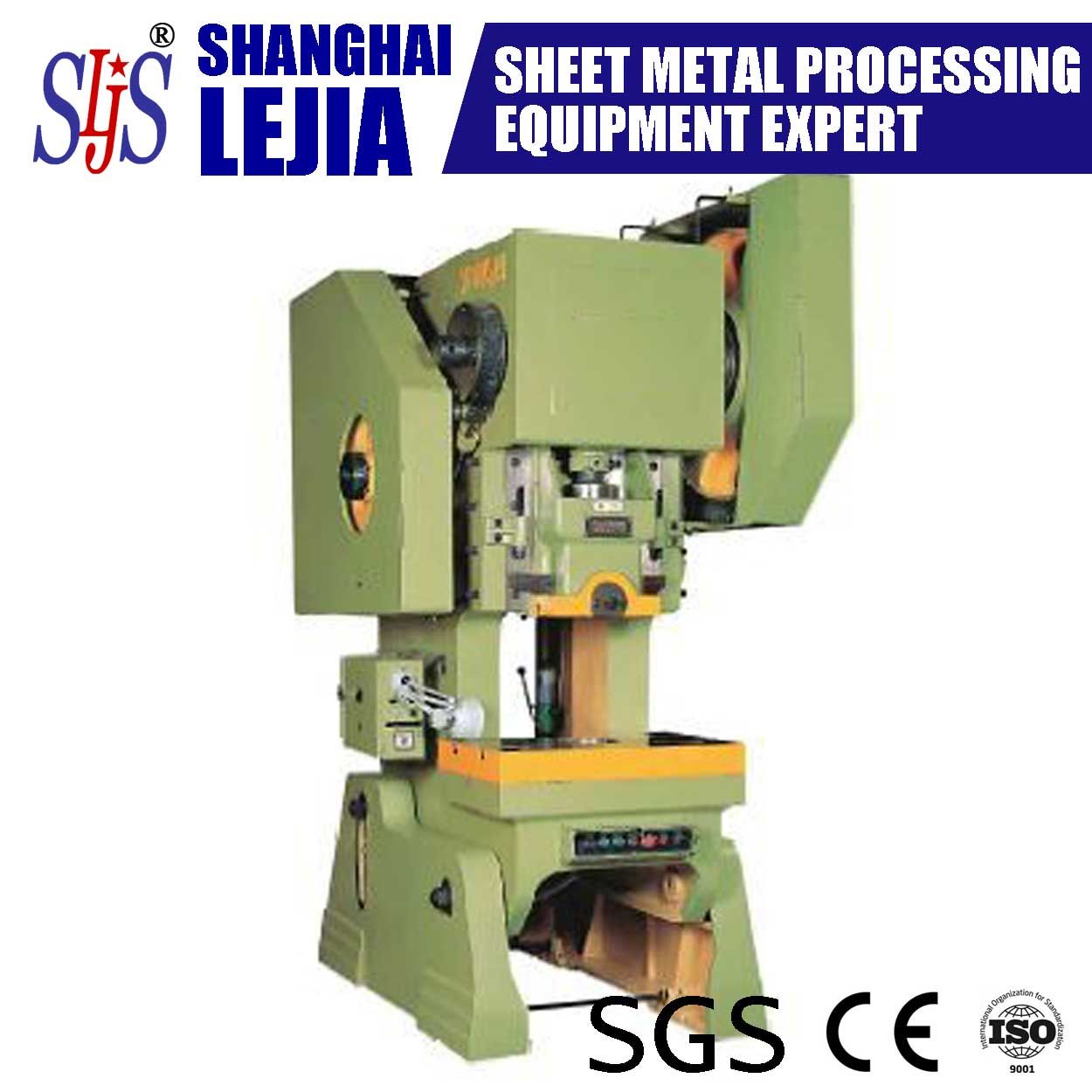

J23 Series C-Frame Inclinable Press

Name: J23 Series C-Frame Inclinable Press
Brand: China-Manufacturer-Directory.com
SKU: 695613635
Availability: InStock
Rating: 4.6 (91 reviews)

Supplier:	Shanghai Lejia CNC Machine Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	J23
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Press Machine:	Mechanical Press
Type:	General Punching Machine
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	Normal Precision
Controlling Mode:	PLC

Product Description

1, Cast and incliable frame, to ensure high rigidity and less deformation.
2, Turn-key and rigid ciucth, with flexible movement and reliable performance.
3, Crankshaft placed crosswise, V-type guides of the slide in high accuracy.
4, Press-collape block device, to ensure safety in press operation.
5, Emergency brake device, to control the slide stop at any position within 135° In case the arms or any foreign substances accessing working area.
6, Photoelectric protector, transmission output axle, feeder, air cushion and other optional accessories are available for the power press subject to user's demands.

Welcome to send inquiry to us, we will try my best to satisfy you well with comptetitive prices as per your request.

Model		J23-6.3	J23-10	J23-16	J23-16A	J23-25	J23-35	J23-40	J23-63	J23-80
Nominal Pressure(KN)		63	100	160	160	250	350	400	630	800
Nominal Pressure Stroke(mm)		1.5	2	2	2	2	3	4	4	5
Stroke of Slide(mm)		35	60	70	90	65	100	100	120	120
Strokes(S. P. M. )		170	145	122	125	122	53	55	50	50
Max. Die Set Height(mm)		115	130	160	140	200	180	220	270	270
Die Height Adjustment(mm)		30	50	60	60	70	70	80	90	90
Depth of Throat(mm)		110	130	160	200	190	205	240	260	260
Distance between Uprights(mm)		145	185	220	305	260	290	300	350	350
Bottom Size of Slide	F-B(mm)	140	170	200	200	250	255	320	320	320
Bottom Size of Slide	L-R(mm)	120	150	180	180	210	210	270	280	280
Hole for punch shank	Diameter(mm)	Ø 30	Ø 30	Ø 40	Ø 40	Ø 40	Ø 40	Ø 50	Ø 50	Ø 50
Hole for punch shank	Depth(mm)	55	55	60	60	60	60	70	80	80
Size of Table	L-R(mm)	310	360	450	620	560	610	700	710	710
	F-B(mm)	200	240	300	380	360	380	460	480	480
	Thickness(mm)	35	50	60	60	70	70	80	90	90
Hole of Table	Diameter(mm)	Ø 60	Ø 100	Ø 110	Ø 110	Ø 120	Ø 130	Ø 150	Ø 180	Ø 180
Motor Power(KW)		0.75	1.1	1.5	1.5	2.2	3	4	5.5	7.5
Overall Dimensions	L-R(mm)	620	670	810	850	900	1040	1180	1300	1340
	F-B(mm)	800	850	1050	1200	1330	1420	1500	1800	1800
	Height(mm)	1500	1670	1880	1850	2180	2270	2300	2630	2700
Total Weight(KG)		350	560	1020	1190	1650	2230	3170	4350	4880
