Product Specifications
| Prod Model: |
PRX615M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
2-Way Powered/Active Full Frequency |
| Frequency Response: |
54Hz-18kHz |
| Hf: |
1X1.5" |
| Lf: |
1X 15" |
| Impedance: |
8ohms |
| Power Handling: |
550W |
| Sensitivity: |
96db |
| Maximum Spl: |
135db |
| Voltage: |
AC110-120V/AC220-240V |
| Finish: |
Duraflex Finish Waterproof |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Application: |
Professional Performance |
| Certification: |
CCC |
| THD: |
<0.005% |
| Speaker System: |
2 Way Active Full Frequency |
| Speaker Material: |
18mm Birch Plywood |
| Monitor: |
Non |
Product Description

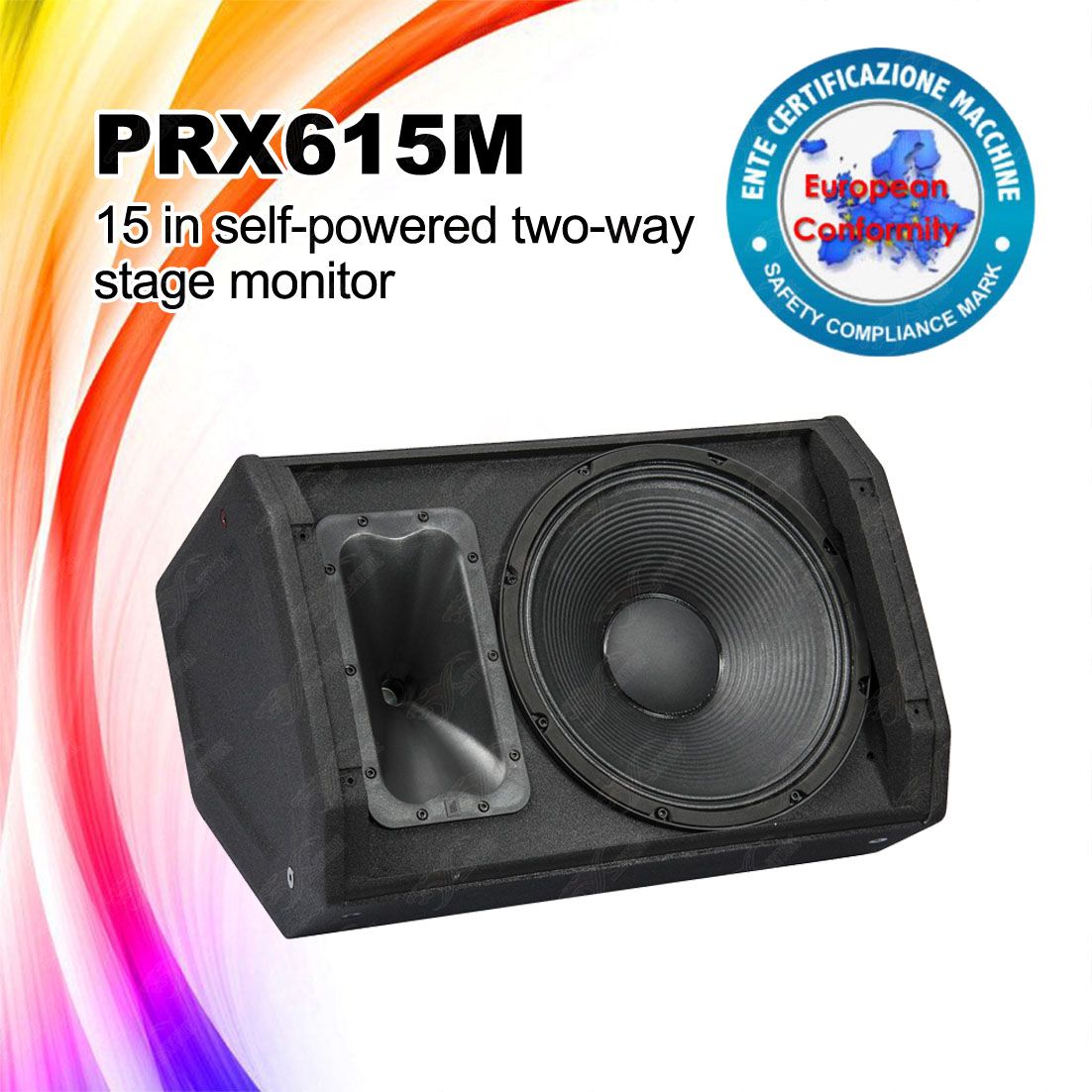

JBL PRX615M style Powered Speaker
15 in. Two-Way Self-Powered Sound Reinforcement System
The 2-way 15" is the most recognizable form of portable PA loudspeakers and offers the perfect balance between size and performance. The PRX615M truly is an exception; It's small, light weight, versatile and powerful.
Features :
--Maximum SPL Output 135db peak
--380 mm (15 in) Differential Drive dual voice-coil and magnetic gap, neodymium woofer
--37.5mm (1.5 in) annular polymer diaphragm, neodymium magnet compression driver
--1000 Watt (dual 500 watt) Class-D, Crown® digital amplifier
--DSP input section with dbx Type IV™ limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
--Professional XLR line and ¼" Mic/Instrument inputs, with loop through
--Integrated 36mm dual-angle pole mount socket
--Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
--8 M10 Suspension points and 1 pullback point
Model | PRX615M |
| Driver | HF:1 × 1.5" diaphragm LF:1×15" woofer |
| Frequency Response | 54 Hz – 18 kHz (±3dB) |
| Power Rating | 550 W |
| Impedance | 8ohms |
| Coverage Pattern | 90º x 50º nominal |
| Sensitivity | 96dB |
| Maximum SPL | 135 dB |
| Dimension | 660 mm x 429 mm x 414 mm |
| Net Weight | 19.7 kg |
