Ruian City Jiayuan Machinery Co., Ltd. >> Jmq Mobile Phone Protective Film Die Cutting Machine with CE Certification

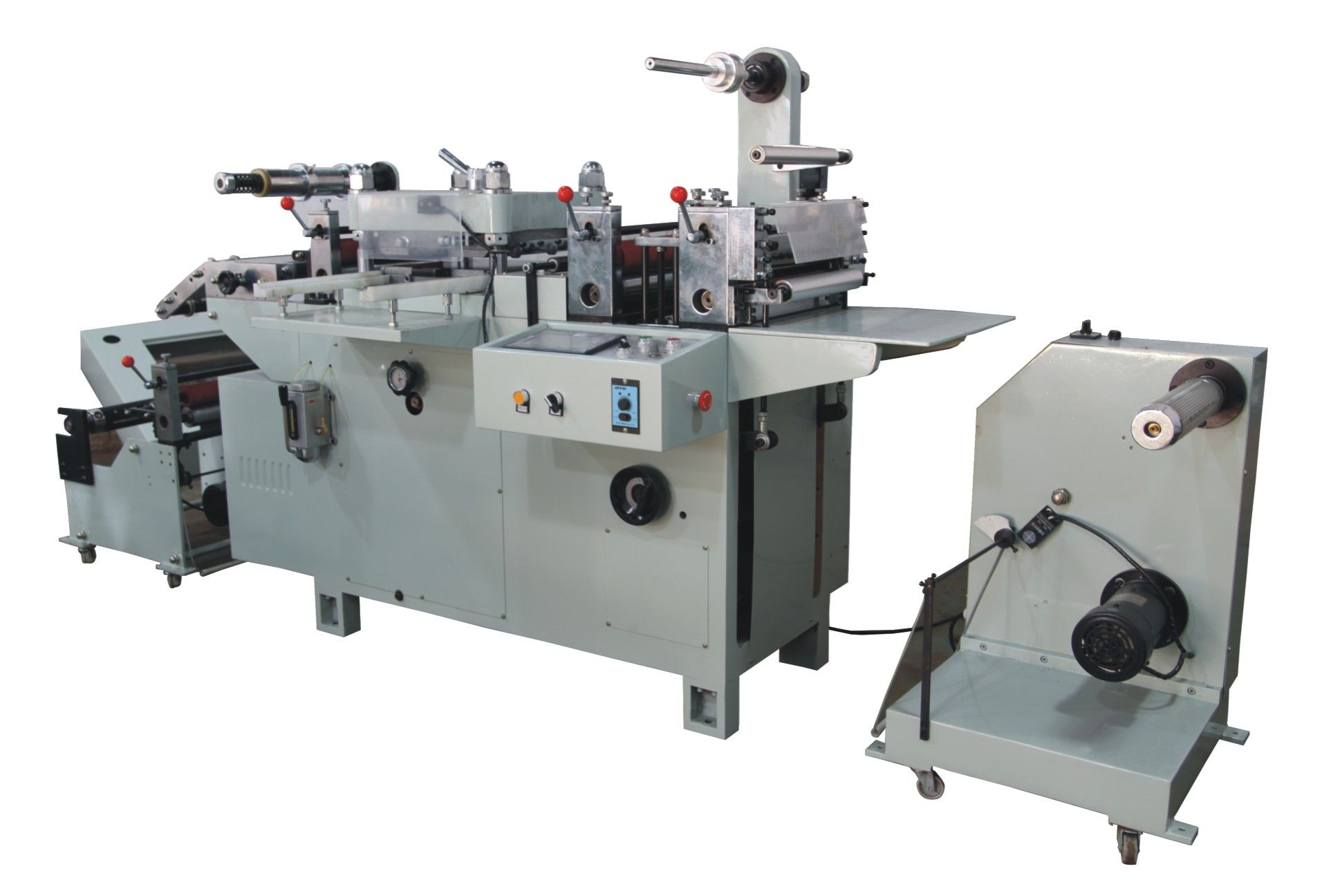

Jmq Mobile Phone Protective Film Die Cutting Machine with CE Certification

Jmq Mobile Phone Protective Film Die Cutting Machine with CE Certification
Supplier: Ruian City Jiayuan Machinery Co., Ltd.
Price: US $ 9600-20000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,EXW
contact supplier

Product Specifications

Prod Model: JMQ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Imprinting Type: Platen
Placing Form Of Template: Horizontal
Die Cutting Tool: Metal Mold
Automatic Grade: Automatic
Application: Earthquake Products

Product Description

JMQ mobile phone screen protective film die cutting machine with CE certification.

Main characteristics of Flat Bed Die Cutter:

This Flat Bed Roll to Roll die cutting machine die cuts through flat pressing and high precision unit while shifting materials is controlled through servomotor.  It is very applicable to die cut free paper adhesive tape, Dacron film trademark and laser anti-false trademark. It is ideal equipment for soft printing machine, continuous thread printing machine. Intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.

Application of Flat Bed Die Cutter:

It is suitable for producing mobile phon protective film, touch screen protective film, computer screen protective film, Ipad screen protective film, etc

Parameter of  Flat Bed Die Cutting Machine:


Cutting speed

20-135(time/min)

Max web width

320mm

Max mould cutting width

300mm

Max unwind diameter

500mm

Max mould cutting length

290mm

Overprint Precision

±0.1mm

Total power

2.2KW

Power voltage

220V±10%

Machine weight

About 1500kg

Overall dimensions(L×W×H)

2800×1100×1600mm



Machine's running video for reference:
Roll to roll: http://v.youku.com/v_show/id_XNDA4ODc4NDA4.html.
Roll to sheet: http://v.youku.com/v_show/id_XNDg5NDA3MjI0.html.

Optional Device:
Punching System: can be middle or side punching;
Lamination System: can be installed in different postion;
Hot-stamping System.

PS: any doubts, call Miss Monica, Tel: 086-577-65159218, Cel: 086-13587591360
Ruian City Jiayuan Machinery Company is located in Zhejiang province in China.Our company are specialized in hot melt coating machine, hot melt equipment, hot melt laminating machine, hot melt extruding machine, die-cutting machine, slitting machine, etc.
Hot melt equipment is widely used in the industries of paper carton package, shoe materials, cosmetics fill, furniture agglutination, bookbinding, dynamo agglutination, filter, auto inner-decoration, adhesive tape, garments materials, advertisement materials, medical dressing, label, nonwoven and electronic, etc for sealing, profile wrapping, edgebanding, assembly, lamination, multilayer, canlking, coating.

Our products are highly appraised by customers from South Africa, Hongkong, MID-Asia, Southeast Asia, Vietnam, Thailand, Iran, Pakistan, India, Indonesia, Spain, Ukraine etc.We also sell machines to Europe, we have got CE certification.

Jiayuan Machinery Co., Ltd is a large-scale manufacturer in a variety of hot melt machinery in China.In recent years, the factory is growing stronger and stronger, introducing & absorbing the advanced technology from foreign countries based on our economic strength.High standard management, technology and equipments which enable us to provide good quality to customers all over the world

Please don't have any hesitation to contact us for more information.

We are looking forward to cooperating with friends from all around the world!
