Product Specifications
| Prod Model: |
JQX-62 2Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Current: |
40A |
| Protect Feature: |
Sealed |
| Contact Load: |
High Power |
| Contact Form: |
1z, 1h, 1d |
| Contact Capacity: |
80A 250VAC/30VDC |
| Contact Material: |
: Agcdo Agsno2 |
| Rated Coil Power: |
DC2.0W AC4va |
| Terminal Type: |
Screw Mounting |
Product Description

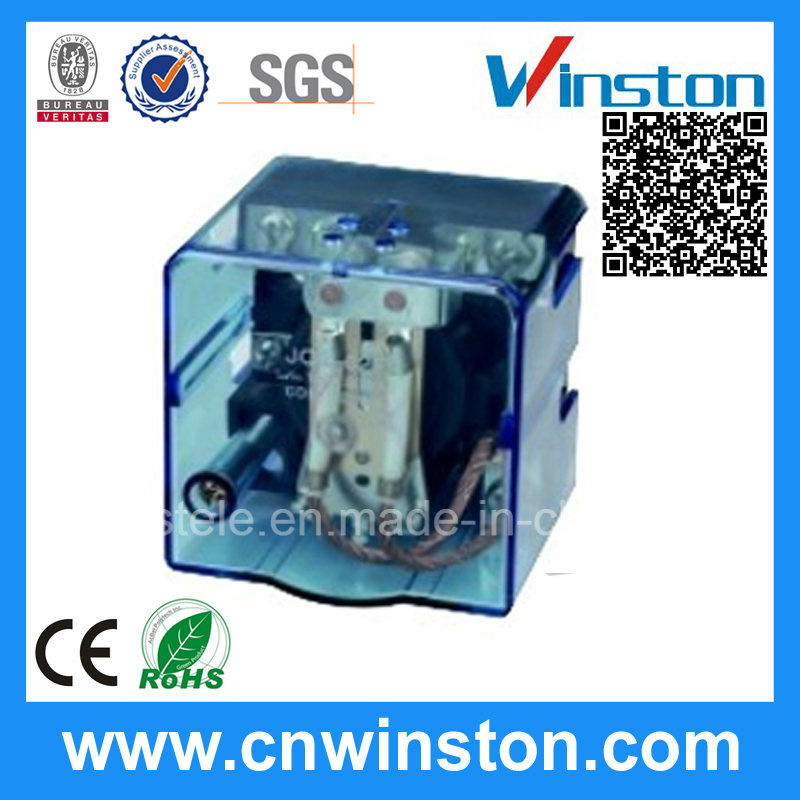

Power relay JQX-62 2Z
Specifications
1. External Dimension(mm): 68.2*62*69
2. Contact from: 2Z, 2H, 2D
3. Contact capacity: 80A, 120A 250VAC
4. Coil Voltage: 6~110VDC, 6-240VAC
5. Coil Power: DC2.0W AC2.5VA
6. Contact Resistance: ≤ 100mΩ (1A 6VDC)
7. Contact material: AgCdo
8. Operate time: 25ms/25ms
9. Terminal type: Terminal mounting
10. Insulation Resistance: ≥ 1000MΩ
Dimensions(mm) | 68.2*62*69 |
| Contact form | 2Z |
| Contact capacity | 120A,250VAC; 120A,30VAC |
| Coil voltage | DC | 6-220V |
| AC | 6-380V |
| Coil power | DC≤2w,AC≤3.2VA |
| Pick up | DC:≤75%,AC≤80% |
| Drop-out | DC≥10%,AC≥30% |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100mΩ |
| Service life | Electrical | 10^5 times |
| Mechanical | 10^5 times |
| Dielectric strength | Between open contacts | 1500v rms |
| Between coil & contacts | 2500v rms |
| Operation temperature | -40°c-+55°c |
| Weight | About 223g |
