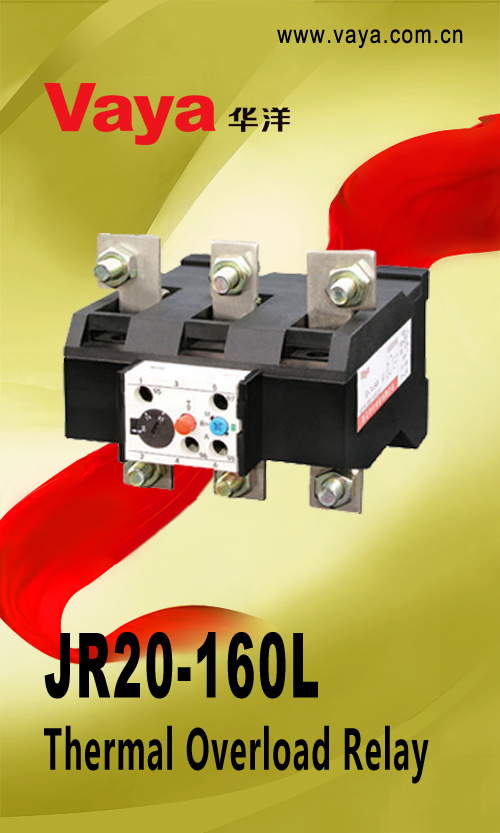

JR20-160L Thermal Overload Relay

Name: JR20-160L Thermal Overload Relay
Brand: china-manufacturer-directory.com
SKU: 705525195
Availability: InStock
Rating: 4.7 (125 reviews)

Supplier:	Zhejiang Huayang Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	JR20-160L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

JR20-160L thermal overload relay

Application

JR20-160L thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 660V, current up to 0.16-630A under 8-hours duty or uninterrupted duty.
Functions provided by these relays are: Phase-failure protection, temperature compensation, ON/OFF indication, and manual/automatic reset.
Applicable Standards: National Standard: GB 14048, International Standards: IEC 60947-4-1
LR20- L, L shows installed as single units
The relays can be mounted onto contactors or installed as single units.

Operating Conditions

The altitude couldn t exceed 2000m.
Ambient temperature: -5 ~+55 degree centigrade and the average temperature no more than +35 degree centigrade in 24 hours.
Atmosphere: Comparative humidity no more than 50% at max +40 degree centigrade, and it may be higher at a lower temperature. The lowest average temperature no more than +20 degree centigrade in the wettest month.
The maximum average comparative humidity of this month could not exceed 90%, The change of temperature leading to dew on the product must be considered.
Class of pollution: Class 3.
The slope between installation surface and vertical surface could not exceed plus and minus 5 degree
Keeping away from explosive, corrosive and electric atomy.
Keeping dry.
The product should be used and installed at certain place without any shock, vibration etc.

Technical Data
Item			JR20-25L	JR20-63L	JR20-160L	JR20-630L
Rated operational current			25	63	160	630
Rated operational voltage			660	660	660	660
Phase-failure protection			Yes	Yes	Yes	Yes
Manual/Auto reset			Yes	Yes	Yes	Yes
Temperature compensation			Yes	Yes	Yes	Yes
Releasing indicator			Yes	Yes	Yes	Yes
Test button			Yes	Yes	Yes	Yes
Stop button			Yes	Yes	Yes	Yes
Auxiliary			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
NC 95-96		127V rated current A	4.3	4.3	4.3	4.3
		220V rated current A	2.5	2.5	2.5	2.5
		380V rated current A	1.5	1.5	1.5	1.5
NC 97-98		220V rated current A	1.6	1.6	1.6	1.6
		380V rated current A	1.0	1.0	1.0	1.0
Mounting			as single unit	as single unit	as single unit	as single unit
Conductor cross section (mm2)	Main circuit	Solid or stranded conductor	1.5~6.0	4.0~25	10~95	480A 2 x 150
	Auxiliary circuit	Solid or stranded conductor	1.5~6.0	4.0~25	10~95	> 480A 2 x 185
		Terminal screw	M5	M6	M8	M10
		Solid or stranded conductor	1.0	1.0	1.0	1.0
		Terminal screw	M3.5	M3.5	M3.5	M3.5

Protection Characteristics
Item	NO	Times the setting current		Release time	Test condition
Overload protection	1	1.05		> 2h	Start from Cold status
	2	1.2		< 2h	Start from Hot status right after item no. 1
	3	1.5		< 2m	Start from Hot status right after item no. 1
	4	7.2		2s< Tp< 10s	Start from Cold status
Phase - failure protection		Any two phases	Another phase
	5	1.0	0.9	> 2h	Start from Cold status
	6	1.15	0	< 2h	Start from Hot status right after item no. 1
	7	3pole 1.0		> 2h	Start from Cold status
	8	2pole 1.32	1pole 0	< 2h	Start from Hot status right after item no. 1

Selection and Ordering Date
Type	Number	Rated current A	Fuse links A		For contactor
Type	Number	Rated current A	1	2
JR20-160L	1W	33-47	160	100	CJ20-100
	2 W	47-63	160	125
	3 W	63-84	250	160
	4 W	74-98	250	160
	5 W	85-115	315	224
	6 W	100-130	315	224	CJ20-160
	7 W	115-150	315	224
	8 W	130-170	315	224
	9 W	144-176	315	224
