Product Specifications
| Prod Model: |
JR36-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Product Description

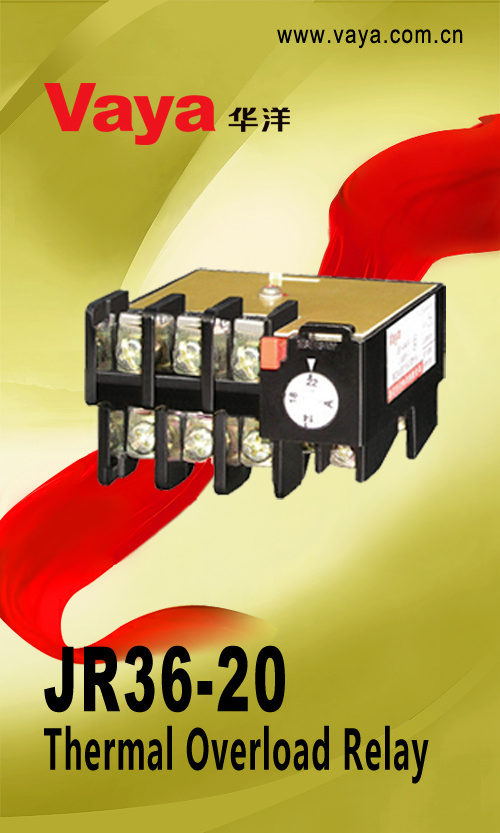

JR36-20 thermal overload relay
Application
JR36-20 thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690V, current up to 0.3-95A under 8-hours duty or uninterrupted duty.
Applicable Standards
National Standard: GB 14048
International Standard: IEC 60947-4-1
The relays can be mounted onto contactors or installed as single units.
Operating Conditions
The altitude couldn t exceed 2000m.
Ambient temperature: -5 ~+55 degree centigrade and the average temperature no more than +35 degree centigrade in 24 hours.
Atmosphere: Comparative humidity no more than 50% at max +40 degree centigrade, and it may be higher at a lower temperature. The lowest average temperature no more than +20 degree centigrade in the wettest month.
The maximum average comparative humidity of this month could not exceed 90%, The change of temperature leading to dew on the product must be considered.
Class of pollution: Class 3.
The slope between installation surface and vertical surface could not exceed plus and minus 5 degree
Keeping away from explosive, corrosive and electric atomy.
Keeping dry.
The product should be used and installed at certain place without any shock, vibration etc.
|
Technical Data |
|
Item |
|
JR36-20 |
JR36-63 |
JR36-160 |
|
Rated operational current |
|
20 |
63 |
160 |
|
Rated operational voltage |
|
690 |
690 |
690 |
|
Phase-failure protection |
|
Yes |
Yes |
Yes |
|
Manual/Auto reset |
|
Yes |
Yes |
Yes |
|
Temperature compensation |
|
Yes |
Yes |
Yes |
|
Test button |
|
Yes |
Yes |
Yes |
|
Mounting |
|
c |
as single unit |
as single unit |
|
Auxiliary |
|
1NO+1NC |
1NO+1NC |
1NO+1NC |
|
AC-15 380V rated current A |
|
0.47 |
0.47 |
0.47 |
|
DC-15 220V rated current A |
|
0.15 |
0.15 |
0.15 |
Conductor
cross
section
(mm2) |
Main circuit |
Solid or stranded conductor |
1.0~4.0 |
6.0~16 |
16~70 |
|
Terminal screw |
M5 |
M6 |
M8 |
Auxiliary
circuit |
Solid or stranded conductor |
2 x (0.5~1) |
2 x (0.5~1) |
2 x (0.5~1) |
|
Terminal screw |
M3 |
M3 |
M3 |
|
Protection Characteristics |
|
Item |
NO |
Times the setting current |
|
Release time |
Test condition |
Overload
protection |
1 |
1.05 |
|
> 2h |
Start from Cold status |
|
2 |
1.2 |
|
< 2h |
Start from Hot status right after item no. 1 |
|
3 |
1.5 |
|
< 2m |
Start from Hot status right after item no. 1 |
|
4 |
7.2 |
|
2s< Tp< 10s |
Start from Cold status |
Phase-failure
protection |
|
Any two phases |
Another phase |
|
|
|
5 |
1.0 |
0.9 |
> 2h |
Start from Cold status |
|
6 |
1.15 |
0 |
< 2h |
Start from Hot status right after item no. 1 |
|
Selection and Ordering Date |
|
Type |
Rated current A |
Fuse links A |
|
For contactor |
|
1 |
2 |
|
JR36-20 |
0.25-0.35 |
63 |
1.6 |
CJT1-10 |
|
0.32-0.50 |
63 |
1.6 |
|
0.45-0.72 |
63 |
2 |
|
0.68-1.10 |
63 |
4 |
|
1.0-1.6 |
63 |
6 |
|
1.5-2.4 |
63 |
6 |
|
2.2-3.5 |
63 |
10 |
|
3.2-5.0 |
63 |
16 |
CJT1-20 |
|
4.5-7.2 |
63 |
16 |
|
6.8-11 |
63 |
25 |
|
10-16 |
63 |
35 |
|
14-22 |
63 |
50 |
