Product Specifications
| Prod Model: |
JR36-20, 63, 160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
Low Power |
| Certificate: |
CE |
| Trip Grade: |
10A/10 |
Product Description
Product Description:

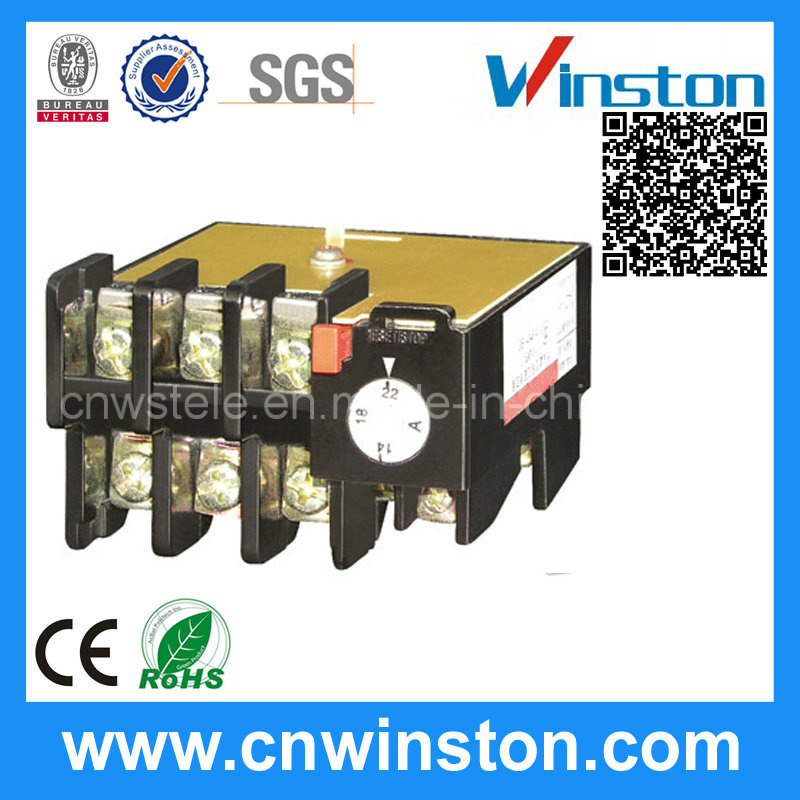

JR36-20
JR36-63
JR36-160
Application:
JR36 series thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690v, current up to 0.25-160A under 8-hours duty or uninterrupted duty.
Functions provided by these relays, are phase-failure protection, temperature compensation, ON/OFF indication, and manual/automatic reset.
Applicable Standards
National Standard: GB 14048
International Standard: IEC 60947-4-1
The relays can be mounted onto contactors or installed as single units
Type
|
JR36-20
|
JR36-63
|
JR36-160
|
Rated operating current
|
20
|
63
|
160
|
Rated insulation voltage
|
690
|
690
|
690
|
Open-phase protection
|
YES
|
YES
|
YES
|
Automatic and manual reset
|
YES
|
YES
|
YES
|
Temperature compensation
|
YES
|
YES
|
YES
|
Test button
|
YES
|
YES
|
YES
|
Install method
|
Independent
|
Independent
|
Independent
|
Auxiliary contact
|
1NO+1NC
|
1NO+1NC
|
1NO+1NC
|
AC-15 380V Rated current
|
0.47
|
0.47
|
0.47
|
DC-13 220V Rated current
|
0.15
|
0.15
|
0.15
|
Normal cross section of wire (mm 2)
|
Main circuit
|
single core or stranded wire
|
1~6
|
6~16
|
16~70
|
terminal screw
|
M5
|
M6
|
M8
|
Auxiliary circuit
|
single core or stranded wire
|
2*(0.5~ 1)
|
2*(0.5~1)
|
2*(0.5~1)
|
terminal screw
|
M3
|
M3
|
M3
|
TRADE INFO
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
