Product Specifications
| Prod Model: |

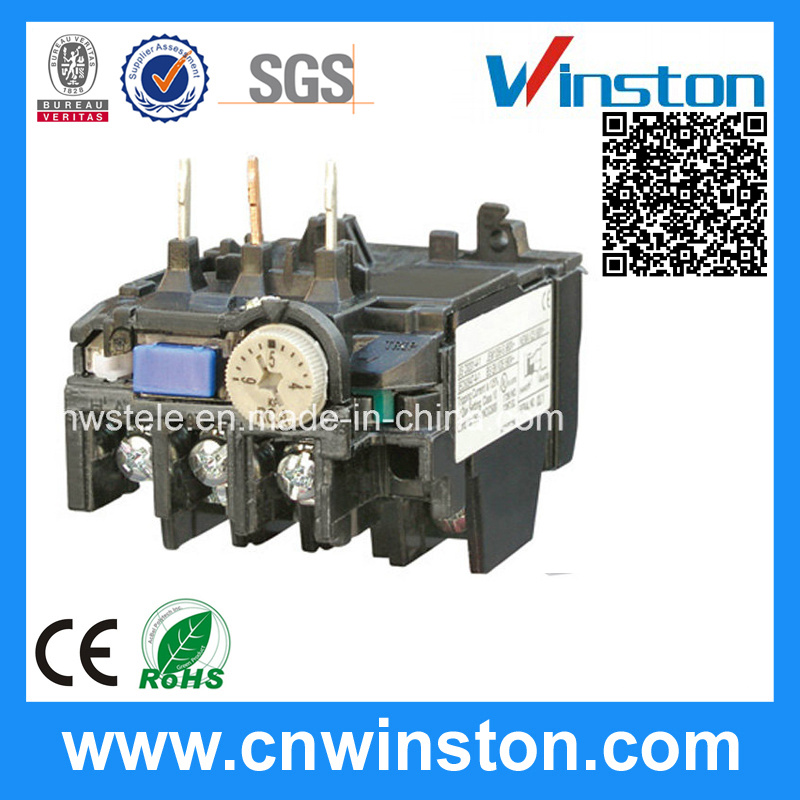

JRS6, TH-N(12, 12kp, 20kp) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Antistop: |
Relay |
| Protect Feature: |
Sealed |
| Contact Load: |
High Power |
Product Description
Operating Conditions
Motion Characteristic: Three-phase Balance Motion Time
No | Times of thesetting current | Motion time | Start condition | Ambienttemperature |
| 1 | 1.05 | >2h | Cold state | 20±5oC |
| 2 | 1.2 | <2h | Heat state |
| 3 | 1.5 | <4min | (Following the No.1 test) |
| 4 | 7.2 | 10A | 2s < Tp≤10s | ≤63A | Cold state |
| 10 | 4s < Tp ≤10s | >63A |
Phase-losing Motion Characteristic
No | Times of the setting current | Motiontime | Start condition | Ambient temperature |
| Any two phases | Another phase |
| 1 | 1 | 0.9 | >2h | Cold state | 20±5oC |
| 2 | 1.15 | 0 | < 2h | Heat state(Following the No.1 test) |
Technical parameters
Type | Setting range(A) | Forcontactor |
| TH-K12Z | 0.2~0.28 | S-K10
S-K11
S-K12
S-K18
S-K20
S-K21 |
| 0.4~0.6 |
| 0.55~0.85 |
| 0.7~1.1 |
| 1~1.6 |
| 1.4~2 |
| 1.7~2.5 |
| 2~3 |
| 2.8~4.4 |
| 4~6 |
| 5.2~8 |
| 7~11 |
| 9~13 |
| TH-K20F | 0.2~0.28 | S-K18
S-K20
S-K21
S-K25
S-K35 |
| 0.28~0.42 |
| 0.4~0.6 |
| 0.55~0.85 |
| 0.7~1.1 |
| 1~1.6 |
| 1.4~2 |
| 1.7~2.5 |
| 2~3 |
| 2.8~4.4 |
| 4~6 |
| 5.2~8 |
| 7~11 |
| 9~13 |
| 12~18 |
| 16~22 |
| 18~26 |
| 24~34 |
| 30~40 |
| TH-K60F | 12~18 | S-K50
S-K65
S-K80
S-K95 |
| 16~22 |
| 18~26 |
| 24~34 |
| 30~40 |
| 34~50 |
| 43~65 |
| 54~80 |
| 65~93 |
| 85~105 |
TRADE INFO
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
Why choose us?
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be providedyou upon receipt of your new inquiry ASAP.
3.Answer your question detailed
4.Solved the problem with you during using our products
5. Samples will be offered to you for our future cooperation
We offer all series of TH-N relay
For more, please send an inquiry to us.
