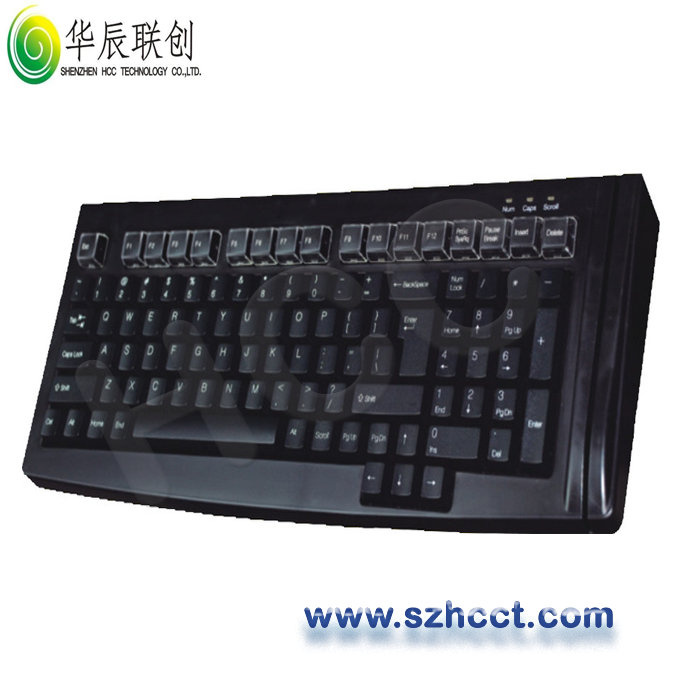

KB101J Standard POS Keyboard
Product Specifications
| Prod Model: |
KB101J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
PS/2, USB for Optional |
| Working Voltage: |
USB: +5V/DC± 5% |
| Working Current: |
< 100mA |
| Dimension: |
415X165X45mm (L x W x H) |
| Weight: |
0.9 Kg |
Product Description
Feature
*Use metal dome with tactile feeling and long lifetime.
*Long Lifetime of the keys: > 10 million times.
*Use Silicone Elastic Ring which has the same tactile feeling as Cherry keyboard and easy to be replaced.
*PC keycaps and glass shield POS keycaps are optional.
*Use three-layer sealing films and UV to protect the circuit from oxidization.
*The keycap posts are made in wear-resisting POM plastic.
*Laser-engraved or UV-silk printed symbols on numerical keycaps, clear and wear proof.
*Magnetic card reader is optional.
Magnetic Stripe Card Reader
*Comply with ISO 7812, IBM, AAMVA, JIS-2 standards and so on.
*Manual swipe mode; Card swipe speed: 10~100cm/sec.
*Lifetime of magnetic head: >500, 000 times
*Recording density:
Track 1: 210BPI with max 76 characters
Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters
Track 3: 210BPI with max 107 characters
*The suffix and prefix of the data and the separator can be set by the software.
*Available track:
Single track: Track 1, Track 2 or Track 3.
Dual tracks: Track 1 & 2 or Track 2 & 3
Triple tracks: Track 1, 2 & 3
| Interface | PS/2, USB for optional |
| Working Voltage | USB: +5V/DC± 5% |
| Working Current | < 100mA |
| Environments | Storage temperature: -40º C-60º C
Working temperature: 0º C-50º C
Working humidity: 20%-90% |
| Dimension | 415x165x45mm (L x W x H) |
| Weight | 0.9 Kg |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
Business Type: Manufacturer/Factory
Management System Certification: ISO 9001,HACCP
International Commercial Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, EXW
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 21~50 People
Export Year: 2008-03-05
Export Percentage: 71%~90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Rm. 306, 3/F, Bldg. 6, Changyuan New Material Port, No. 2 Gaoxin C. Ave. 1st, Nanshan Dist, Shenzhen, Guangdong, China
R&D Capacity: OEM, ODM, Own Brand(HCCTG)
No. of R&D Staff: 5-10 People
No. of Production Lines: 6
Annual Output Value: US$10 Million - US$50 Million
