Product Specifications
| Prod Model: |
Kdw127/12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Voltage Input: |
AC 127V |
| Power Voltage Output: |
DC 12V |
| Rated Output Current: |
500mA |
| Current Protection Set Valve: |
1A |
Product Description
DC voltage regulated power Introduction:

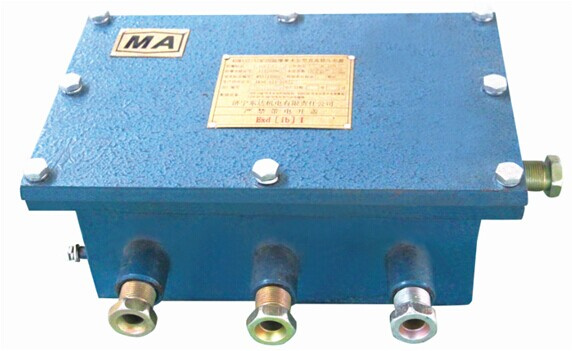

KDW127/12 mining explosion-proof and intrinsically safety DC regulated power supply(Coal number: MAA110060 ) is according to MT/T408-1995 coal industry standard "mine DC regulated power supply" to design and manufacture. The device can be used to coal mining underground and other place contain explosive gas.
DC voltage regulated power Technology Parameter:
Power voltage input | AC 127V |
| Power voltage output | DC 12V |
| Rated output current | 500mA |
| Current protection set valve | 1A |
| Intrinsic safety parameter: | U0: DC 12.5V I0: 1A |
DC voltage regulated power Technology features:
1. The power adopts two levels of voltage stability and two-stage over-current protection results.
2. Advanced technology, reasonable design and reliable usage.
3. The device can contacted with any DC 12V regular power.
4. The regulated power supply can contact with one mining intrinsically safety control butter and mining intrinsically safety sound and light alarm box. The device can also associate with one solenoid valve.
Packaging & Delivery
| Packaging Detail: | Plywood case/carton |
| Delivery Detail: | 5 days from receiving payment (according to your order quantity) |
