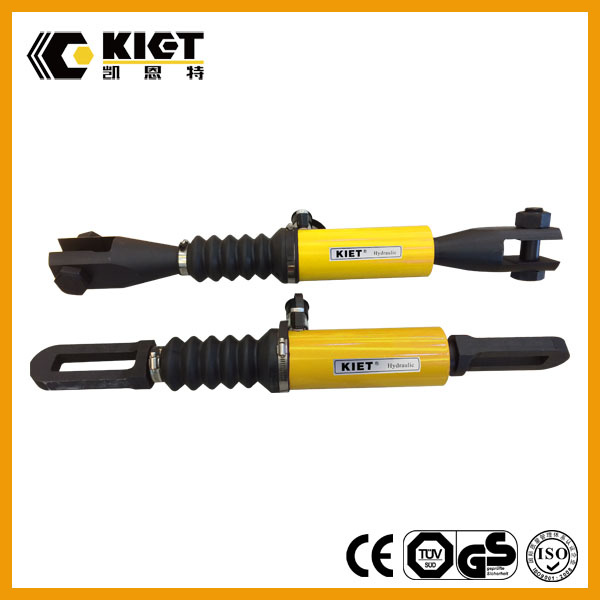

KIET single acting pull cylinders spring return hydraulic tool
KIET pull cylinders provide high strength alloy steel construction
Plunger blow-out protection to prevent over-extension
Hard chrome-plated plunger for long life
Baked enamel finish for increased corrosion resistance
CR-400 coupler and dust cap included on all pull cylinder models
Plunger wiper reduces contamination, extending cylinder life
Single-acting spring-return
Replaceable links on KET-BRP- Pull Cylinder models
Model Number | Cylinder
Capacity | Stroke | Cylinder
Effective Area | Oil
Capacity | Collapsed
Height(A) | Extended
Height(B) | Outside
Diameter(D) | Weight |
| ton (kN) | mm | cm2 | cm3 | mm | mm | mm | kg |
| KET-BBC-25 | 2,5 (24) | 127 | 3,5 | 45 | 264 | 391 | 48 | 1,8 |
| KET-BBC-46 | 5 (51) | 140 | 7,3 | 101 | 301 | 441 | 57 | 4,5 |
| KET-BBC-106 | 10 (105) | 151 | 15 | 228 | 289 | 440 | 85 | 9,5 |
| KET-BRP-106C* |
| 151 | 15 | 227 | 587 | 738 | 85 | 15,9 |
| KET-BRP-106L* |
| 151 | 15 | 227 | 541 | 692 | 85 | 13,2 |
| KET-BRP-306* | 30 (326) | 155 | 46,6 | 722 | 1085 | 1240 | 136 | 48,1 |
| KET-BRP-606* | 50 (505) | 152 | 72,1 | 1096 | 719 | 871 | 140 | 53,5 |
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Contact person: Miss. Kelly Zhang
Mobile number: +86 18918151556
Tel:+86-21-68565866
Web: http://www.chinakiet.com/EN/
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
