Product Specifications
| Prod Model: |
KMH-225S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temp. Range: |
-70oc~+150oc or -158of~+150of |
| Humidity Range: |
20-98%R.H. |
| Humidity Uniformity: |
+/-3.0%R.H. |
| Heat Up Time: |
-70oc~+100oc Within 60mins |
| Pull Down Time: |
+20 Oc~-70 Oc Within 80mins |
| Equipment Power: |
9.5kw |
| Refrigeration System: |
Hermetic Compressor, Cascsde Refrigeration CFC |
| Cooling Mode: |
Air Cooled(Water Cooled Type Is Option) |
| Type: |
Material Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC380V |
Product Description

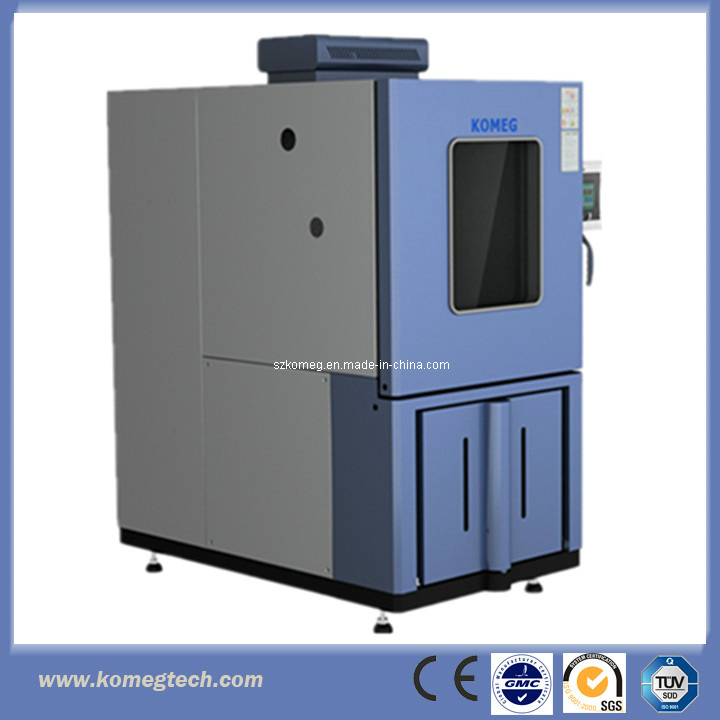

Military quality Constant Temp. And Humidity Test Equipment
1. Widely used for quality control in electronics, electrical components, communicate, meters, plastics, matel, food, chemicals, medicine, aviation, panel, etc fields.
2. Long service lifetime, easy operation and maintenance,
3.7 inches LED touch screen, Huge capacity of the testing data, as long as 250days data.
4. Experienced sales, professional service
5. The important point is that our big R&D team make sure the good quality
Specifications:
Workspace volume: 700 X 700 X 480mm
Exterior size: 980 X 1890 X 1460mm
Temperature: -70 to 150° C
Temperature error: ± 2.0° C
Temperature constancy: ± 0.5° C
Temperature uniformity: ± 2.0° C
Temperature change rate: +20 -70° C within 75-minute (with empty loading) and -70 +100° C within 65 minutes (with empty loading)
Humidity range: 20 to 98% RH
Humidity error: ± 2% RH
Humidity constancy: 3.0% RH
Humidity uniformity: ± 2.0% RH
Insulation:
Exterior, baked painting steel or stainless steel (SUS304)
Interior, mist finishing stainless steel (SUS304)
Insulation material, rigid polyurethane foam and glass fiber
Door: Heating wire was installed to prevent condensation in case of low-temperature
Inspection window (W X H): 2 sets 2, 470 X 570mm inspection window, made of multi-layer coated hollow electric glass, effectively insulation and prevents condensation
Light device: 11W/220V AC X 1 installed on the inspection window
Water outlet: Water outlet available for condenser
Water replenishment: Water pump
Features:
Standard configurations:
Sight window X 1
Cable port (port Ø 50mm) X 1
Shelves X 2
Chamber lamp X 1
Power cable X 2m
No fuse breaker, over-pressure, over-heat and over-current for compressor, over-temperature, overloading of blower, dry heat-protection
Optional accessories:
Cable port: Ø 100mm is available
Shelves
RO-type water purifier: R-80/day
Provided to keep the humidifying heater and wet bulb wick free from scale
Inner glass door with operating port: A glass door can be provided behind the main door so that specimens can be observed
Two operating ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door
Dehumidifier: The rotation regenerating dehumidifier M-120 ensures precise control of low-humidity (5° C 5% RH) for electronics
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
You are warmly welcomed to KOMEG.
We hope to be your reliable business partner in China.
For our new design can achieve high temp. Unifornity (± 0.5º C ).
Tecumseh or Danfoss compressor for your alternative choice.
Germany imported wall material make sure the reliability and good performace.
Any interest or questions, let's talk in details.
Nancy here for you 7*24 hours.
The following is the detailed specifications:
|
Environmental Temperature and Humidity Chamber |
|
Secifications ( at +20°C room temp. Or+25°C water temp with empty load) |
|
Model |
KMH-S series |
|
225S |
408S |
800S |
1000S |
|
Interior sizel |
W(mm) |
700 |
700 |
1000 |
1000 |
|
H(mm) |
700 |
750 |
1000 |
1000 |
|
D(mm) |
480 |
800 |
800 |
1000 |
|
Exterior size |
W(mm) |
980 |
980 |
1280 |
1280 |
|
H(mm) |
1890 |
1940 |
2160 |
2160 |
|
D(mm) |
1460 |
1740 |
1750 |
1950 |
|
Weight(KG) |
330 |
450 |
550 |
650 |
|
Temp. range |
-70 °C ~+150°C |
|
Humidity Range |
20 ~ 98&R.H. |
|
Temp. constancy |
±0.5ºC |
|
Humidity constancy |
±2.5%R.H |
|
Humidity uniformity |
±3.0%R.H |
±5.0 % R.H |
|
Heat up time |
-70°C ~ +100°C , within 60 min |
|
Pull down time |
+20°C ~ -70°C , within 80 min |
|
Equipment Power |
9.5KW |
10.6KW |
18.5KW |
18.5KW |
|
Ambient Temp. |
5ºC ~+35ºC |
|
Standard accessories |
Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m |
|
Safety device (standard) |
No fuse breaker, over pressure \ over heat and over current protection for compressor,
Over temp. protect, over load protect of blower, dry heat protection |
|
Control System |
Balanced Temperature & Humidity Control System |
|
Refrigeration system |
Air Cooled (Water Cooled Type is option) |
|
Hermetic compressor,Cascsde Refrigeration, CFC-Free refrigerant(HFC-507/HFC-23) |
|
Controller |
Panel:7-inch LCD Touch panel, Chinese or English display selectable |
|
Operation model :Program or fix point running |
|
Memory capacity :120programs,1200steps, |
|
All repeat 999 cycles, part repeat 99 cycles |
|
Interior material |
Stainless Steel Plate ( SUS 304 ) |
|
Exterior material |
Baked Painting Steel Or Stainless steel(SUS304) |
|
Insulation material |
Rigid polyurethane Foam and Glass Fiber Wool |
|
System |
Balanced & Humidity Control System |
|
Wiring method |
AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires |
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
|
