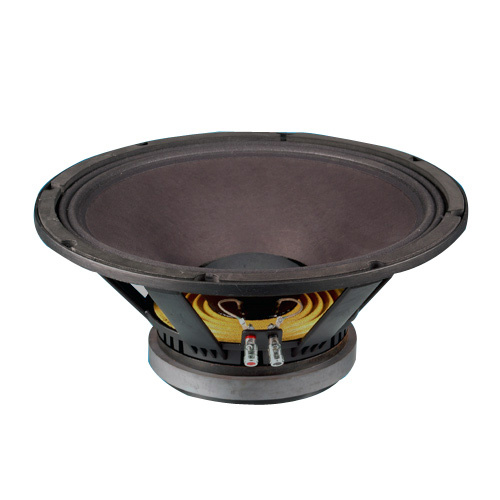

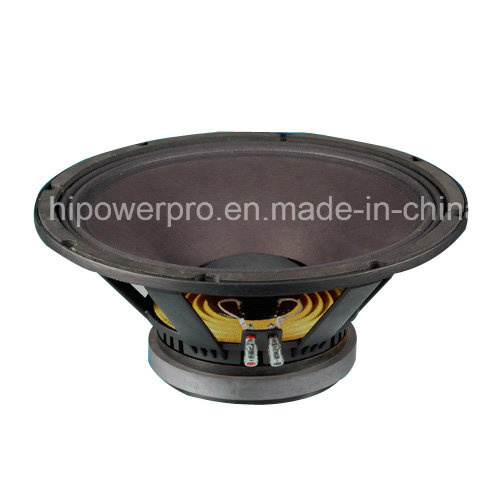

L15/6523c-15 Inch PRO Audio PA Speaker Midrange Woofer

L15/6523c-15 Inch PRO Audio PA Speaker Midrange Woofer
Supplier: Guangzhou Hipower Audio Co., Ltd.
Price: Negotiable/Piece
Min Order: 30/Piece
Quantity::
Trade Terms: FOB,EXW
contact supplier

Product Specifications

Prod Model: L15/6523C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Noise: <102dB
Hi-Fi: Not Hi-Fi
Operation Mode: Wire / Remote Control
Speaker Material: Metal
THD: <0.005%
Speaker System: Passive
Application: Stage
Certification: ISO
Monitor: None

Product Description

 L15/6523C-15 inch Pro Audio pa speaker midrange woofer









1. PA speaker of  low distortion

2.Hipower Audio is a professinal speaker factory with experience in the speaker field for 12 years. We make our own tranducers ,HF drivers and empty cabinets.

3.speaker's details:

General Specifications
Nominal Diameter380/15mm/inch
Rated Impedance8ohm
Nominal Power handling400Watts
Program Power800Watts
Sensitivity(lw/lm)98dB
Frequency Range33-3.5KHz
Minimum Impedance(Zmin)6.3ohm
Voice Coil Diameter75/3mm/inch
Voice Coil MaterialCopper
Voice Coil Winding Depth24mm
Number of layers2(Inside/Outside)
Magnet gap depth10mm
Cone ShapeCurved
Surround ShapeM-roll
BasketCast Aluminum
Flux Density1.2T
Magnet Material/MassCeramic/2.56kg

Thiele-Small parameters
Resonance frequencyFs33.5Hz
DC resistanceRe5.6ohm
Mechanical factorQms14.5
Electrical factorQes0.30
Total factorQts0.29
Mechanical complianceCms0.21mm/N
Mechanical resistance
of suspension losses
Rms1.56mech-ohm
Effective Moving MassMms107gr
Half-space efficiencyEff2.9%
BL FactorBL20.7T.m
Equivalent Cas air loadVas236liters
Effective piston areaSd0.0897m2
Max.linear excursionXmax8mm
Voice-coil inductanceLelK1.05mH

Mounting Information
Overall Diameter400mm
Bolt Circle Diameter376mm
Bolt Hole Diameter6.5mm
Baffle Cutout Diameter363mm
Overall Depth167mm
Net Weight8.2kg
