| Supplier: | Qingdao Shengtuo Jichuang Co., Ltd. |
|---|---|
| Price: | US $ 19000-20000/Piece |
| Min Order: | 1/Set |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

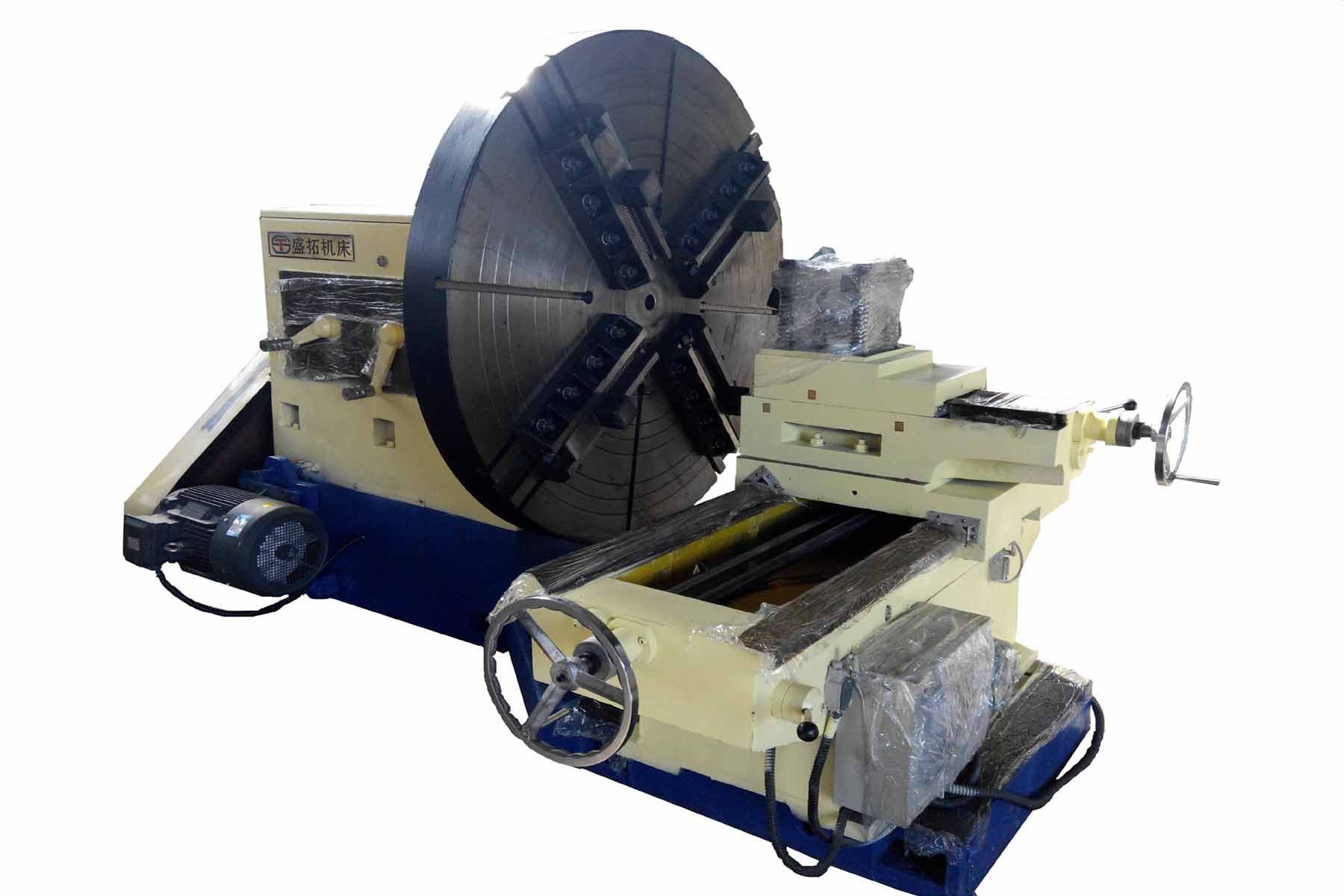

| Prod Model: | ST-C6020 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stype: | Landing Lathe |
| Max. Swing Diameter: | 2000mm |
| Max. Processing Length: | 500mm |
| Load Capacity: | 3.5 Tons |
| Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Controlling Mode: | Artificial |
| Automatic Grade: | Semiautomatic |
| Setting Mode: | Floor-type |
| Precision: | Precision |
| Item | ST-C6020 | Unit |
| Type of machine | Facing Lathe | |
| Max. swing diameter of workpiece | 2000 | mm |
| The cross-feed travel of slide carriage | 1000 | mm |
| The longitude-feed travel of slide carriage | 450 | mm |
| Max. length of workpiece | 500 | mm |
| Max. weight of workpiece | 3500 | kg |
| Chuck diameter | 1600 | mm |
| The quantity of the steel jaws | 4 | set |
| Number of spindle speeds | 6 | level |
| Spindle diameter | 220 | mm |
| Spindle bore | 50 | mm |
| Cutter bar section size | 50×50 | mm |
| Spindle speed range | 13~103 | r/min |
| Power of main motor | 11 | KW |
| Power of feed motor | 1.1 | KW |
| Adjusting mode of feed motor | stepless | |
| Machine power supply | 380v,50HZ,3P | |
| Overall dimensions | 3000× 2200× 2100 | mm |
| Lathe weight | about 7 | t |
| Standard configuration:1 set of headstock,1 piece of 4-jaw chuck Φ1600mm(500mm-long per jaw),1 piece of chuck wrench,1 set of 1.56m bed,1 base,1 set of 11kw main motor,1 set of feed rate motor. | ||
| Optional configuration:Customers can extend the bed ,the base and choose one chuck from chucksΦ 1400mm, 1600mm,1800mm,2000mm(equiped with 800mm jaws) according to workpiece. | ||
| Specific Notice:Customers can customize the lathes according to their workpieces.(Based on changing configuration). | ||
