Product Specifications
| Prod Model: |
FY-3208H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printhead: |
Spt 510/35pl |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| System Supported: |
Windowsxp64 |
| Structure: |
Flat-Bed Cylinder Press |
| Plate: |
Relief Printing |
| Printing Speed: |
7.5CPI |
Product Description

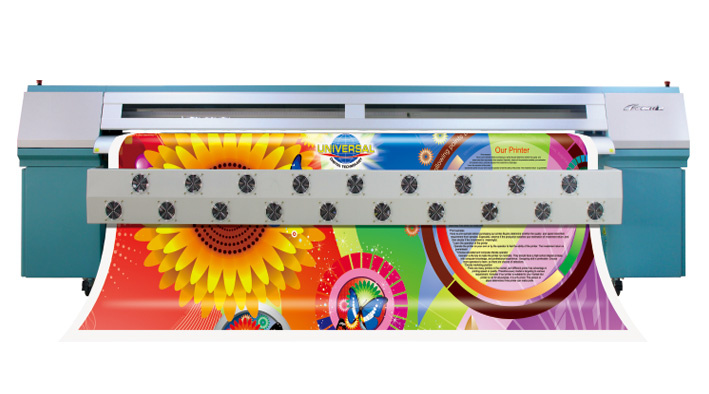

Large Format Solvent Printer (FY-3208T Plotter)
8 Seiko 510 heads; 3.2m; 1080dpi;
Perfect speed and resolution;
Good quality and after-sell service.
Large format printer using seiko SPT 510 heads, equipped with Tri way cooling fans, individual cleaning systems.
Features:
A: Seiko Instrument Group SPT printhead, 510 nozzles per printhead.
B: The voltage of the printhead is able to adjust automatically depending on the temperature. This will solve the problem on nozzle clogging under huge temperature change.
C: The function of skipping white space is added to increase productivity.
D: The adjustment of bi-direction, step and carriage moving speed can be modified during printing.
E: Edge feather function can blur the pass line and feather pass edge.
F: Well designed alloy-aluminum girder is installed to decrease the noise during printing. Achieve the perfect quiet working environment.
G: Photoprint / Maintop / Wasatch software provide user-friendly interface and handy function with two types of printing.
H: 100% single color black is used on printing black text to avoid mixture of color.
I: Control system has the function of resuming printing after the power is cut off. This helps you to save unnecessary loss of cost.
J: The powerful suction fans equipped under the printing platform to avoid the collision between the carriage and the media, high resolution can be obtained.
|
Model |
FY-3208T large format printer |
|
Printhead |
SPT510-35PL, Drop on demand Piezo Head |
|
Number of Printhead |
8 Heads |
|
Maximum Print Width |
3, 200mm(125.98” ) |
|
Print Speed* |
101m2/ hr 360X360dpi 1Pass |
|
76 m 2/ hr 240X720dpi 2Pass |
|
51m2/ hr 240x1080dpi 3Pass |
|
34m2/ hr 360x1080dpi 3Pass |
|
26m2/ hr 720x720dpi 4Pass |
|
Media |
Max. width |
3, 300mm(129.92' ) |
|
Max. Weight |
120kg |
|
Type |
Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film, Blue Back Paper. |
|
Thickness |
4mm(Max. ) |
|
Heating System |
Equipped |
Auto Media Feeding&
Take-up System |
Optional |
|
Ink |
Type |
Solvent, Eco-Solvent |
|
Capacity |
1Lor 5L per Color Main Tank |
|
Auto Cleaning System |
Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System. |
|
Print Interface |
Optical Fiber |
|
Power Specification |
AC 220V/230V 50Hz/60Hz 2300W |
|
Operational Environment |
Temperature: 20° C-28° C Humidity: 40%-60% |
|
Compatible RIP Software |
Photoprint, UltraPrint, Topaz, Wasatch, Caldera, Maintop |
Dimension
& Weight |
Machine |
L4, 520mm X W860mm X H1, 340mm |
|
Packing |
L4, 630mm X W880mm X H1, 050mm |
