Large Screen Digital Micro Hardness Tester with Motorized Turret

Product Specifications

Prod Model:	HVM-1000/HVM-2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Micro Hardness Tester
Test Load:	10kgf-2000kgf
Leus/Indenter Switch:	Motorized Turret
Carriage Control:	Automatic Loading and Unloading Method
Type:	Vickers Hardness Tester
Application:	Metal
Standard:	ASTM
Measuring Range:	Hv, Hr, Hb .

Product Description

The digital micro hardness Tester is a lab instrument to measure the hardness value of all kinds of metals according to Micro indentation hardness principle ASTM E384 and ISO 6507. They are widely used in metallurgy, forging, casting, hardness steel and nonferrous metals, IC thin sections, Coatings, ply-metals; Glass, ceramics, agate, precious stones; Thin plastic section industries, as well as in the laboratories, universities, college and scientific research institutes.

Characters;
1. Wider measurement field and broader usage range with 20X and 40X lens.
2. Large LCD screen can directly show measurement methods, test force, indentation length, hardness value, dwell time of test force and the number of measurement.
3. Reading the data and testing result, processing data, outputting the result to printer, converting the scales to 17 scales of HV, HR, HB and etc, saving data and linking RS232 interface.
4. Can be Equipped with digital microscope and interface linked to camera and CCD video-camera.
5. Can take photos of the indentation and metallographic composition of the material If equipped with a pick up camera.
6. Lens/indenter switch with Motorized Turret.

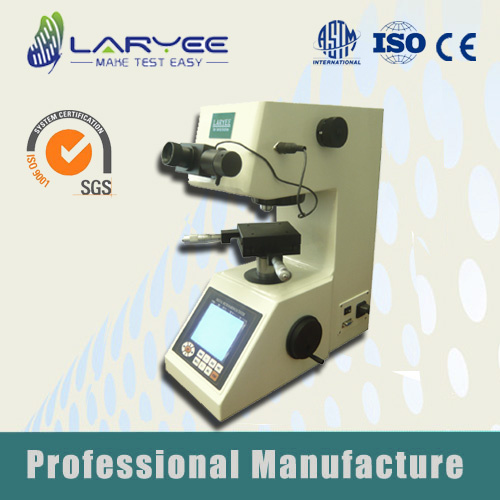

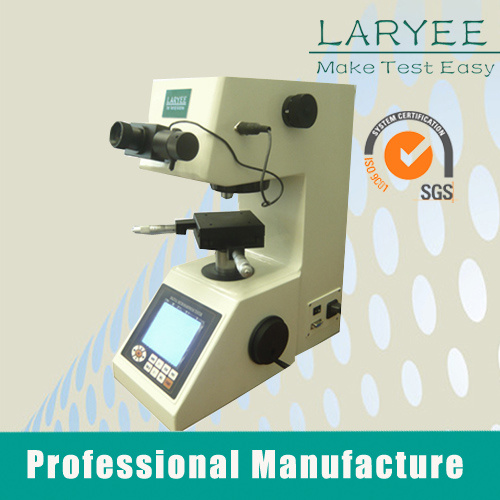

HVM-1000/HVM-2000 Large Screen Digital Micro Hardness Tester

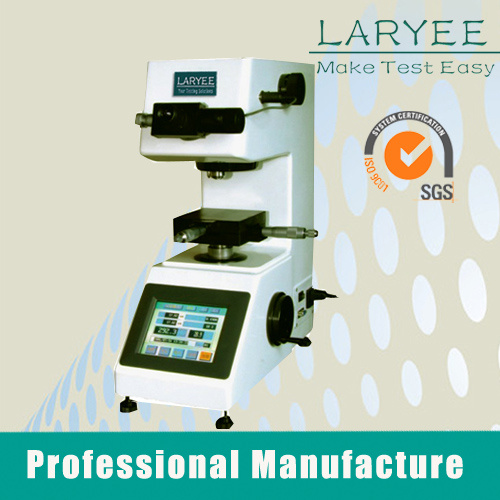

HVT-1000 Touch Screen Lcs Digital Micro Hardness Tester

Model	HVM-1000/HVT-1000	HVM-2000
Test load	0.098N (10gf), 0.246N (25gf),  0.49N (50gf),0.98N (100gf),  1.96N (200gf), 2.94N (300gf),  4.90N (500gf), 9.80N (1000gf)	0.098N (10gf), 0.246N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.90N (500gf), 9.80N (1000gf)  19.6N (2000gf)
Leus/indenter switch	Motorized Turret
Carriage control	Automatic loading and unloading method
Magnification of microscope	For measurement: 400X (Object lens 40x , eyepiece 10x)
	For observation:200X (object lens 20x, eyepiece 10x)
Load holding time	5-60 second
Measuring microscope	Min measuring unit: 0.0625um
Testing field	1-2967HV
Micro test table	Dimensions 100x100mm
Movement	25mm in X&Y axis
Max. height of specimen	70mm
Max. depth of specimen	95mm
Out put	Installed with innner-printer and RS232 interface
Power supply	AC110V/220V 60/50HZ
Dimensions	(L ) 425 X (W) 245X (H)490mm
Weight	Gross Weight:: 42KG,  Net Weight: 35KG
Standard accessories	Vickers Indenter, Objective (20X,40X), Digital Micro lens (10X), XY-stage test table, Thin specimen test holder, Fork-shaped test holder, Fine wire test holder, Adjustable screw,  Lever, Micro Vickers hardness block, RS232 line
