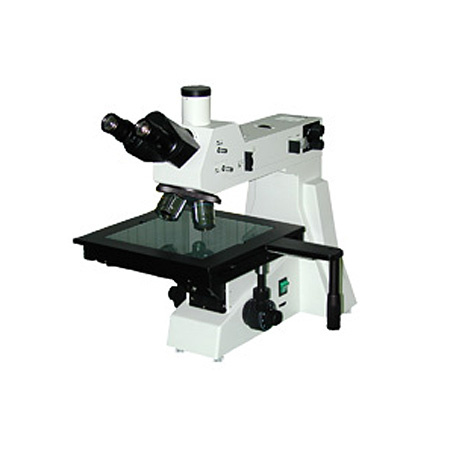

Large Stage Metallurgical Microscope (MJ31)

Name: Large Stage Metallurgical Microscope (MJ31)
Brand: China-Manufacturer-Directory.com
SKU: 676941525
Availability: InStock
Rating: 4.6 (105 reviews)

Supplier:	Micro-shot Technology Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	MJ31
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attribute (E. G.: Size):	Value (E. G.: 12 Inches)

Product Description

Features:

-With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.

-With large move range mechanical stages, can move quickly and slowly.

-Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μ M.

-6V 20W Halogen lamp, brightness control. Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.

Metallurgical Microscope MJ31
Eyepiece	Wide field WF10X(\|μ 18mm)
Objective	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12

	Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25

	Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40

	Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60

	Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80

Eyepieces tube	Trinocular, Inclination of 30° , (Analyzer with field diaphragm to switch)
Vertical illumination unit	6V 20w, halogen lamp, adjustable brightness
	Vertical illumination with field diaphragm, aperture diaphragm and polarizer, (Y, B, G)filter and frosted filter

Focus system	Vertical adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing2μ m.

Nosepiece	Quintuple(Frontward ball bearing inner locating)
Stage	Three layer mechanical Size: 250mmX230mm, movingrange: 154mmX154mm

Micro-shot Technology Co., Ltd., was established in 2003. We commit to create high quality digital microscope camera and leading imaging system integrator. Our company has fully qualified technicians and engineers and professional marketing personnel of high caliber.

Micro-shot is one of the leading and most experienced manufacturers of digital microscope camera in China, and we specialize in computer micro imaging system development. Since 2003, We have been committing to provide our customers with quality products and best service. With more than 6 years experience in developing digital microscope camera and computer micro imaging system we have strong abilities of R&D manufacturing, selling and marketing. In addition, all products are designed to meet customers' needs and requirements and are upgraded continuously and rapidly to follow in various markets.

Our main products are digital microscope camera and digital microscope. We make efforts to develop digital microscope business, design new products and keep looking for improvement to satisfy our customers' needs.

To be your good assistant is our aim. We would like to establish business relationships with the firms all over the world, and we believe that we will achieve a win-win situation by mutual efforts.
