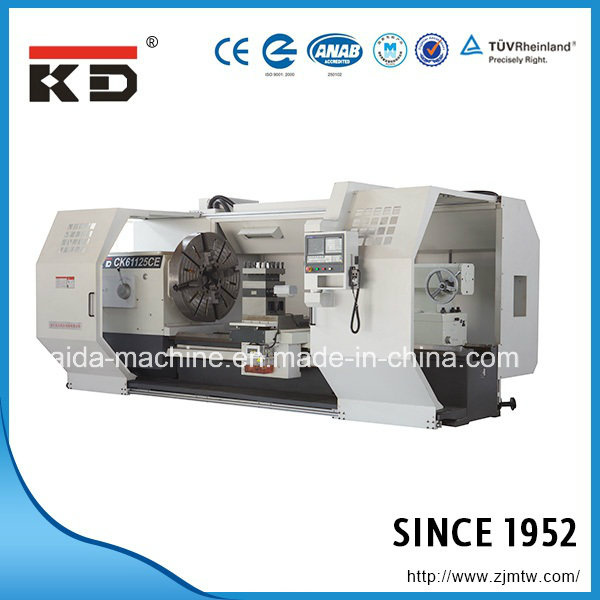

Lathe, Lathe Machine, CNC Lathe, Kaida Heavy Duty Ck61100CE - Ck61160e-Big Bore Size Metal Turning CNC Cutting Tool

Name: Lathe, Lathe Machine, CNC Lathe, Kaida Heavy Duty Ck61100CE - Ck61160e-Big Bore Size Metal Turning CNC Cutting Tool
Brand: china-manufacturer-directory.com
SKU: 620902704
Availability: InStock
Rating: 5 (138 reviews)

Supplier:	Zhejiang Kaida Machine Tool Co., Ltd.
Price:	US $ 80000-150000SET
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CK61100CE-CK61125CE-CK61140CE - CK61160E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Max Swing Over Bed:	1000/1250/1400/1600mm
Spindle Bore:	130mm
Spindle Taper:	A2-15
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Linear Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Mid-Range CNC Machine Tools
Processing Precision:	+-0.03mm

Product Description

PRODUCT FEATURES:
Longitudinal and cross feeds are effected by servo motor drive through ball screws.
Φ 130mm spindle bore, short taper positioning spindle nose for high precision and rigidity.
Centralized lubrication system in headstock for less heating and heat distortion.
Supersonic frequency hardened guide ways to ensure high precision and long service life.

ITEMS	CK61100CE	CK61125CE	CK61140E	CK61160E
Max. swing over bed	Φ 1000 mm	Φ 1250 mm	Φ 1400 mm	Φ 1600 mm
Max. swing over carriage	Φ 620 mm	Φ 815 mm	Φ 990 mm	Φ 1190 mm
Width of bed	755 mm		970 mm
Maximum length of workpiece	1.5/2/3/4/5/6/8 m		1.5/2/3/4/5/6/8/10 m
Max. turning length	1.3 /1.8 /2.8 /3.8/4.8/5.8/7.8m		1.3 /1.8 /2.8 /3.8/4.8/5.8/7.8/9.8m
Max. weight be tween centers	5000Kg		6000Kg
Spindle nose	A2-15
Spindle bore	Φ 130 mm
Cone hole diameter and taper of spindle hole	Φ 140 1: 20
Steps of spindle speed(Manual)	2 (Variable Within Each Step)
Range of spindle spec	2.5~34 20~270 r/min
Rapid feed for Z axis	8m/min
Rapid feed for X axis	5 m/min
Max. travel of Axis Z	8m
Max. travel of Axis X	580 mm	685 mm	820 mm	900 mm
Max. Input	0.001 mm

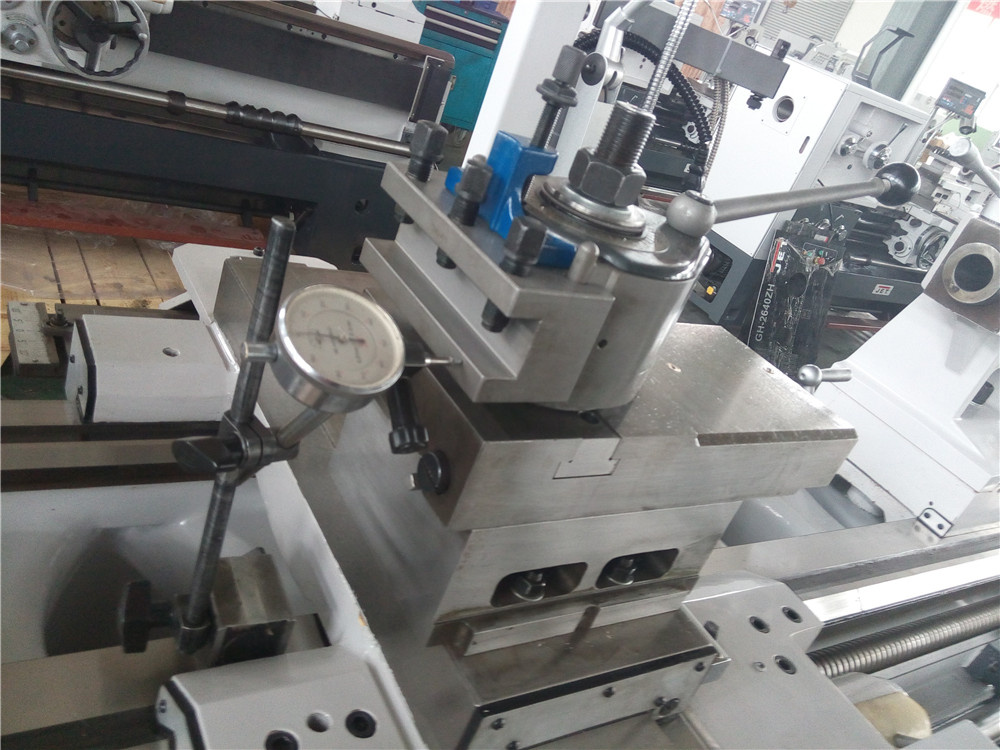

Tool post stations	4
Tool cross section	40× 40mm		50× 50mm
External diameter of tailstock sleeve	Φ 160mm
Taper of bore of tailstock sleeve	80
Max. traverse of tailstock sleeve	300mm
X/Z motor torque	37 Nm/37 Nm		37 Nm/42 Nm
Spindle motor power	22/26 KW(servo)
Power of cooling pump	370W
3m Overall dimensions(L× W× H)	6100× 2370× 2230 mm	6100× 2370× 2300 mm	6200× 2280× 2100 mm	6200× 2280× 2300 mm
Net weight(3m)	11500Kg	12300 Kg	12700 Kg	13500
Note: For each additional machine length of 1m there will be addition net weight of 300Kg.

Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
