Product Specifications
Product Description

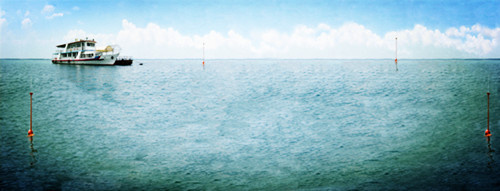

LBL Positioning System
Key features:
high-accuracy underwater 3D positioning
utilize high-accuracy time delay estimation and measuring technique, positional accuracy reaches the domestic leading level
variety of product series and models, customized and excellent after-sales service
Specifications:
signal: CW\LFM(programmable)
Operating Frequency:
LF: 7kHz~18kHz
MF: 18kHz~36kHz
HF: >35kHz
depth: Down to 6000m
range: Up to 6000m
range accuracy: ≤ 10cm+1‰ D(D is slant-range)
depth accuracy: ≤ 0.5m± H*5‰ (H is depth)
positional accuracy: 0.1m+3‰ *D(D is slant-range)
traceability: Could timely trace many positioning systems at one time, the maximum positioning target is 5 pieces.
Working method: Synchronization trigger mode(external/internal synchronization)\response mode
synchronizing cycle: 1-10s selectable(step 1s)
Application:
position underwater target, follow the tracks of targets and navigation
underwater rescue
sunken vessel salvage
It was founded in September 2007, which is the scientific payoffs transformation platform for Institute of Acoustics of Chinese Academy of Sciences and (Shanghai) East Sea Research Station. We mainly devote to the design development, production, sales and technical services of ocean acoustic instrument and equipment.
Chairman and General Manager is the doctoral supervisor of IACAS---Dr. Heng Haihong, who has won the Title of "National Outstanding Science and Technical Worker " and Leading Personnel Title of "Elite Leading Plan". The Ocean Acoustic Innovation Team, LED by Dr Feng, has won the Jiaxing Key Innovation Team Award.
We have passed the Software Enterprise Certificate and ISO 9001: 2008. We have undertaken many National Enterprise Innovation Fund Programs (medium or small size), Innovation Construction Programs in Academy of Sciences, Major Technical Projects in Zhejiang Province and Sciences and Technology Planning Projects in Jiaxing City. We have obtained 8 pieces of Patent for Invention and 7 pieces of patent for utility models. Our marine products are variety of LBL, SBL and USBL positioning systems, Acoustic Release Transponders, Acoustic Beacon, Intelligent Buoy and Imaging Sonar and etc.
