Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Structure: |
LC |
| Application: |
Communication |
| Type: |
Optical Fiber Connector |
Product Description

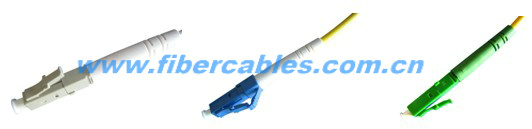

LC Connector
1. UL rated plastic housing
2. Single mode, multi mode
3. with UP, UPC, APC
4. Polarized and color coded
We supply fiber optic LC connector kit, include single mode LC connector kit, multi mode LC connector kit with 0.9mm, 2.0mm and 3.0mm boot in different colors. Optic LC connector kit available in SM UPC, APC and MM UPC with industry standard blue, green, aqua and beige colors.
LC connector kit descriptions:
The LC is s small form factor(SFF) connector and is ideal for high density applications. LC is about half size of the SC connector and LC use 1.25mm ferrule, half the dimension of SC ferrule. The LC Connector makes use of an enhanced edition of the well-known, user-friendly RJ-style connector that offers a reassuring, clear click when connected. The latest, single-set design improves the connector's strength and complies with side-load requirements of standard 2.5 mm connectors. Jumper LC connectors are equipped with detachable clips making it easier to rectify polarity inaccuracies during termination. The distinctive mixture of small size and the click of connectivity make the LC connector a perfect pick for today's high performance networks.
LC connectors and related products have both single mode and multimode types. The LC connector family includes single mode LC UPC connector, single mode LC APC connector and multimode LC UPC connector. There is simplex LC connectors and duplex types.
We supply various kinds of LC fiber optic connectors, adapters, attenuators and cable assemblies. These products are compliant to TIA /EIA and IEC standard. They are suitable to use in Gigabit Ethernet, multimedia, industrial and military applications.
LC connector features:
1. Compact, pull-proof design
2. RJ-45 style interface, half the dimension of a regular connectors
3. Push & pull mechanism like RJ connectors
4. Detachable clips for simplex as well as duplex connectors
5. Polarized and color coded
6. UL-rated plastic housing and boots in green, blue, aqua and beige colors.
7. Low insertion loss and low back reflection.
|
LC connectors |
Single mode |
Multi mode |
|
Insertion Loss |
≤ 0.20dB |
≤ 0.25dB |
|
Return Loss |
≥ 50dB(PC) |
N/A |
|
≥ 550dB(UPC) |
N/A |
|
≥ 65dB(APC) |
N/A |
|
Durability |
≤ 0.20dB typical change after 1000 mating |
|
Operating Temperature |
-40 to +80º C |
