Product Specifications
| Prod Model: |
FYA-5012-LCSMDX |
| Markets: |
North America,South America,Southeast Asia |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |
LC |
Product Description
Adapter is a mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve that holds two ferrules together. They are used to connect optical fiber connectors of the same type, such as FC, SC, LC, ST, MU, MTRJ, D4, DIN, MPO ect, widely used in optical fiber communications equipment, measuring appliance and so on, the performance stably reliable.
Flyin optronics offer various kinds of LC adaptors, singlemod & multimode, simplex & duplex & quad, PC & UPC & APC, standard type & SC type, with flange & without flange^
Description

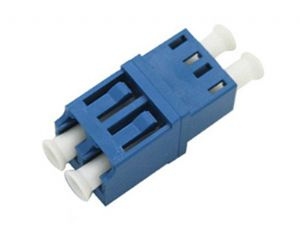

Adaptor body: LC/PC, Singlemode, Duplex, Blue
Sleeve part: Zirconia ceramic Sleeve
Cap part: White, Plastic dust caps
Application
Telecommunication Networks
FTTX, FTTH
LAN, WAN, CATV
Fiber Communication Systems
Data Processing Networks
Industrial, Mechanical and Military
Features
Simplex, duplex or Quad versions available
Phosphor bronze or Zirconia sleeve
Low insertion loss and back reflection loss
High precision alignment
Compact design
Comply to RoHS requirement
|
Item |
Parameter |
|
Connector Type |
LC/PC |
|
Fiber Type |
Multimode, Duplex |
|
Insertion loss |
≤ 0.2dB |
|
Retuen Loss |
≥ 45dB |
|
Mating Durability |
≤ 0.2dB typical change, 1000 times |
|
OperatingTemperature |
-40~+75degree |
|
StorageTemperature |
-40~+85degree |
Ordering Information
|
Connector |
Fiber Type |
Fiber Core |
Polishing |
Adaptor type |
Flange |
Housing Color |
|
LC |
Singlemode
Multimode |
Simplex
Duplex
Quad |
PC
UPC
APC |
Standard type
SC type |
With flange
Without flange |
Blue (SM PC)
Beige (MM PC)
Green (SM APC) |
