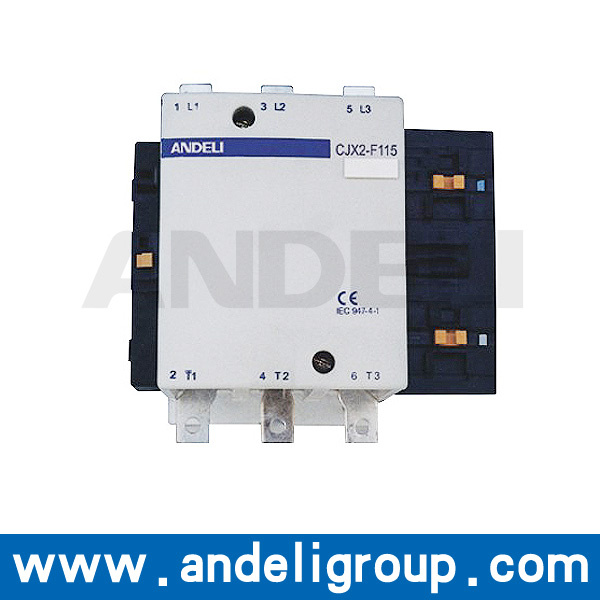

Andeli Group Co., Ltd. >> LC1-D10 3tb 3 Phase AC Contactor (CJX2-F)

LC1-D10 3tb 3 Phase AC Contactor (CJX2-F)

Name: LC1-D10 3tb 3 Phase AC Contactor (CJX2-F)
Brand: china-manufacturer-directory.com
SKU: 607132824
Availability: InStock
Rating: 4.8 (149 reviews)

Supplier:	Andeli Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CJX2-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Operational Current In AC-3(a):	115-800A
Operating Frequency (Time/Hour):	600/1200
Theory:	Electromagnetic Relay
Size:	Miniature
Usage:	Industrial

Product Description

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA..

Application

CJX2C series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply withIEC CJX2-F AC contactor is suitable for using in the circuits u to the rated voltage 380V AC 50Hz, current 800A, for long distance breaking circuit and frequently starting or controlling the motor. Italso can be sed for the conntrol of distribution circuits of rated current from 200A to 1500A. Itconforms to IEC60947-4-1.60947-4.

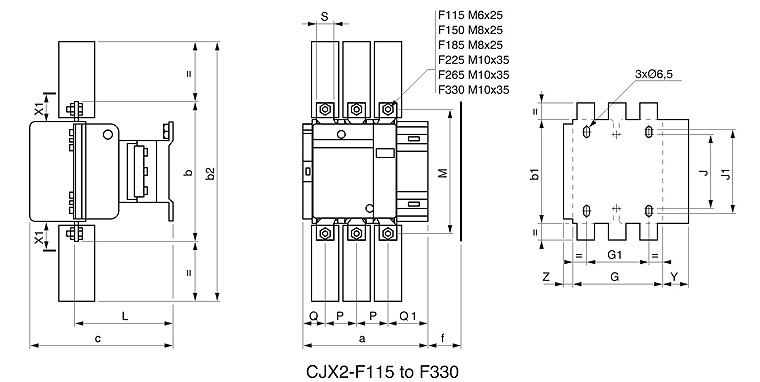

Dimension

About us

Type	Rated operational current in AC-3(A)	Max power ratings of 3-phase motors in category AC-3(kW)							Operating frequency (time/hour) AC-3	Electrical life AC-3 x104	Mechanical life x104
Type	Rated operational current in AC-3(A)	220V 230V	380V 400V	415V	440V	500V	660V 690V	1000V	Operating frequency (time/hour) AC-3	Electrical life AC-3 x104	Mechanical life x104
CJX2-F115	115	30	55	59	59	75	80	65	1200	120	1000
CJX2-F1154	115	30	55	59	59	75	80	65	1200	120	1000
CJX2-F150	150	40	75	80	80	90	100	65	1200	120	1000
CJX2-F1504	150	40	75	80	80	90	100	65	1200	120	1000
CJX2-F185	185	55	90	100	100	110	110	100	600	100	600
CJX2-F1854	185	55	90	100	100	110	110	100	600	100	600
CJX2-F225	225	63	110	110	110	130	129	100	600	100	600
CJX2-F2254	225	63	110	110	110	130	129	100	600	100	600
CJX2-F265	265	75	132	140	140	160	160	147	600	80	600
CJX2-F2654	265	75	132	140	140	160	160	147	600	80	600
CJX2-F330	330	100	160	180	200	200	220	160	600	80	600
CJX2-F3304	330	100	160	180	200	200	220	160	600	80	600
CJX2-F400	400	110	200	220	250	257	280	185	600	80	600
CJX2-F4004	400	110	200	220	250	257	280	185	600	80	600
CJX2-F500	500	147	250	280	295	355	335	335	600	80	600
CJX2-F5004	500	147	250	280	295	355	335	335	600	80	600
CJX2-F630	630	200	335	375	400	400	450	450	600	80	600
CJX2-F6304	630	200	335	375	400	400	450	450	600	80	600
CJX2-F780	780	220	400	425	425	450	475	40	600	80	600
CJX2-F7804	780	220	400	425	425	450	475	450	600	80	600
CJX2-F800	800	250	450	450	450	450	470	450	600	80	600

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
