Product Specifications
| Prod Model: |
CJX2N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Thermal Current (a): |
25-200A |
| Size: |
Miniature |
| Usage: |
Industrial |
Product Description
Why choose us?
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application

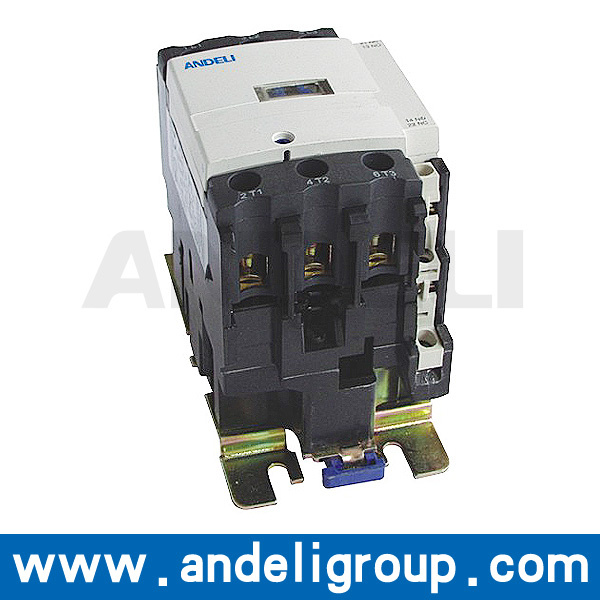

CJX2N series AC contactor is suitable for frequency 50/60Hz, rated insulation voltage up to1000V, rated operation current 9~150A under AC-3 duty. It is mainly used for making/breakingelectric circuits at a long distance & for frequent starting/stopping & controlling AC Motors. It isused in combination with thermal relay to compose a magnetic motor starter. The products complywith IEC60947-4-1 standard.
|
Type |
Rated current
AC-3(A) |
Controlled power (KW) |
|
220V |
380V |
415V |
440V |
660V |
|
CJX2-09N |
9 |
2.2 |
4 |
4 |
4 |
5.5 |
|
CJX2-12N |
12 |
5.5 |
5.5 |
5.5 |
5.5 |
7.5 |
|
CJX2-18N |
18 |
7.5 |
7.5 |
9 |
9 |
10 |
|
CJX2-25N |
25 |
5.5 |
11 |
11 |
11 |
15 |
|
CJX2-32N |
32 |
7.5 |
15 |
15 |
15 |
18.5 |
|
CJX2-40N |
40 |
18.5 |
18.5 |
22 |
22 |
30 |
|
CJX2-50N |
50 |
15 |
22 |
25 |
30 |
33 |
|
CJX2-65N |
63 |
18.5 |
30 |
37 |
37 |
37 |
|
CJX2-80N |
80 |
22 |
37 |
45 |
45 |
45 |
|
CJX2-95N |
95 |
22 |
45 |
45 |
45 |
41 |
|
CJX2-115N |
115 |
30 |
55 |
59 |
59 |
80 |
|
CJX2-150N |
150 |
40 |
75 |
80 |
80 |
100 |
|
CJX2-170N |
170 |
55 |
90 |
100 |
100 |
110 |
|
CJX2-205N |
205 |
63 |
110 |
110 |
110 |
129 |
|
CJX2-245N |
245 |
75 |
132 |
132 |
132 |
160 |
|
CJX2-300N |
300 |
100 |
160 |
200 |
200 |
220 |
|
CJX2-410N |
410 |
110 |
220 |
250 |
250 |
280 |
|
CJX2-475N |
475 |
147 |
265 |
280 |
280 |
355 |
|
CJX2-620N |
620 |
200 |
335 |
400 |
400 |
450 |
Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.
With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.
Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.
Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.
Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
