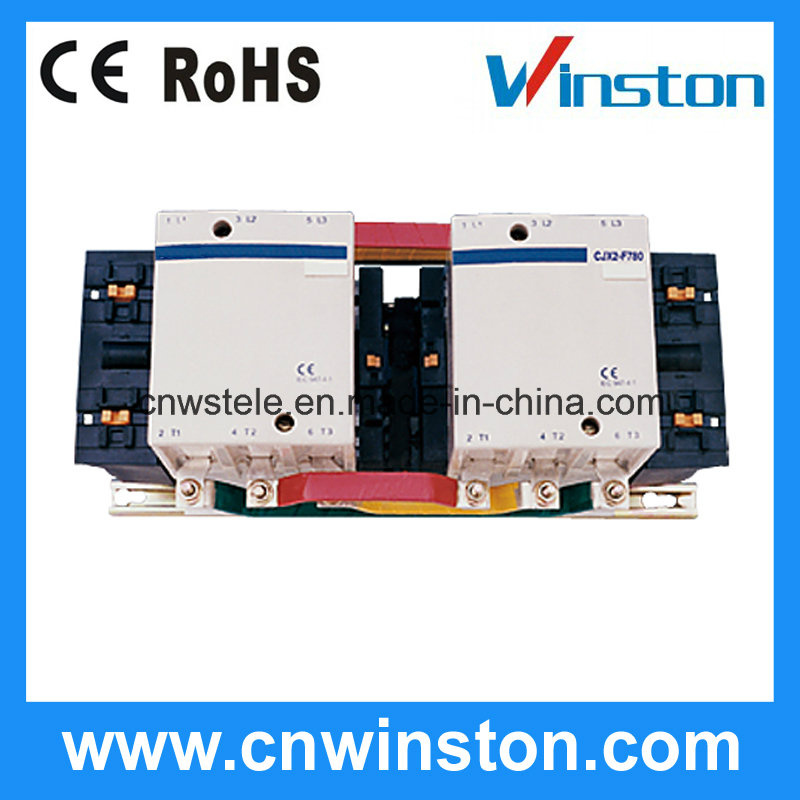

LC1-F Mechanical Interlocking Contactor (LC2-F)

Name: LC1-F Mechanical Interlocking Contactor (LC2-F)
Brand: china-manufacturer-directory.com
SKU: 742632655
Availability: InStock
Rating: 4.8 (123 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LC1-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protective Characteristics:	Enclosed Rlay
Load:	High Power Relay
Size:	Miniature
Usage:	Household Appliances Relay, Communication Relay, Lathe Relay
Action Principle:	Electromagnetic Type
Theory:	Magnetic Contactor

Product Description

CJX2-N series AC contaotor(simplified as eontacto in the following) is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 95A, for making and breaking and frequent starting, controlling the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, dtar-delta starter, with the thermal relay, it is combined into the electromagnetic starter.

Type	Number of Poles	Rated Current AC-3(A)	Rated Current In/A	Controlled power(KW)
Type	Number of Poles	Rated Current AC-3(A)	Rated Current In/A	220V	380V
CJX2-F115N	3P	115	250	200	55
CJX2-F1154N	4P	115	250	200	55
CJX2-F150N	3P	150	355	250	75
CJX2-F1504N	4P	150	355	250	75
CJX2-F185N	3P	185	425	275	90
CJX2-F1854N	4P	185	425	275	90
CJX2-F225N	3P	225	500	315	110
CJX2-F2254N	4P	225	500	315	110
CJX2-F265N	3P	265	630	350	132
CJX2-F2654N	4P	265	630	350	132
CJX2-F330N	3P	330	800	400	160
CJX2-F3304N	4P	330	800	400	160
CJX2-F400N	3P	400	800	500	200
CJX2-F4004N	4P	400	800	500	200
CJX2-F500N	3P	500	1000	700	250
CJX2-F5004N	4P	500	1000	700	250
CJX2-F630N	3P	630	1250	1000	335
CJX2-F6304N	4P	630	1250	1000	335
CJX2-F800N	3P	800	1250	1000	400
